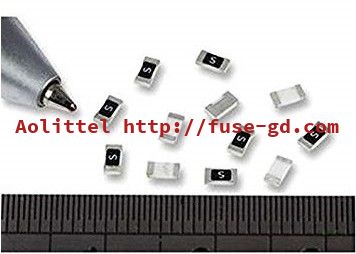

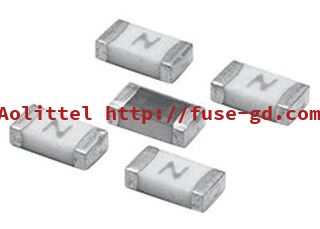

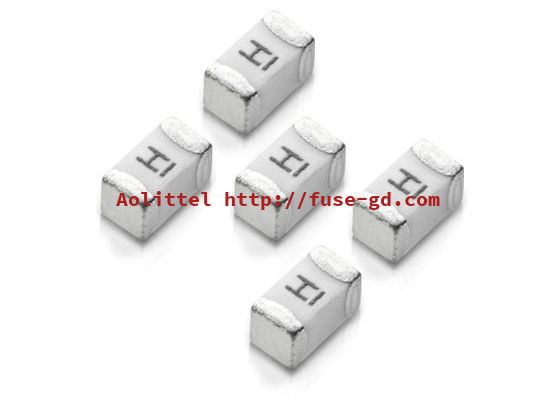

1.6x0.8 mm 0603 Ceramic Chip Package High Inrush Time-Lag Surface Mount Device SMD Fuse CQ06LT 32V 1-8 Amp For Test Equipment
Application: Small Motor System, Portable Electronics Device, Input Power Port, Test Equipment
Features
a. High voltage and high current rating
b. High inrush and high breaking capacity
c. Fast arcing extinguished
d. Lead free & Halogen free material
e. Good explosion proof
f. Precise fusing time and cut-off completed
g. Suitable for rated current of 1A ~8A
h.Approval UL Recognized 1A~8A
i. Interrupting Rating 60 amperes at 32V DC
j. Soldering method :*Reflow Soldering : 260°C, 30Sec. max.*Wave Soldering : 260°C, 10Sec. max. *Hand Soldering : 350°C, 3Sec. max.
Environmental Specification
Operating Temperature -55°C to +125°C
Vibration MIL-STD-202G, Method 201(10-55 Hz, 0.06 inch, total excursion)
Salt Spray MIL-STD-202G, Method 101, Test Condition B (48Hrs)
Insulation Resistance MIL-STD-202G, Method 302, Test Condition A
Resistance to Solder Heat MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)
Thermal Shock MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)
Size
Specification
| Product Type | Printing |
(A) |
(V) |
cold resistance | maximum voltage drop | I²T value | Breaking capacity | Weight(single product) |
| CQ06LT 001 | H | 1A | 32V | 0.225 | 0 | 0.13 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 002 | N | 2A | 32V | 0.052 | 0 | 0.4 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 003 | P | 3A | 32V | 0.026 | 0 | 1.17 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 004 | S | 4A | 32V | 0.015 | 0 | 2.21 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 005 | T | 5A | 32V | 0.01 | 0 | 2.5 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 006 | U | 6A | 32V | 0.007 | 0 | 5.04 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 007 | V | 7A | 32V | 0.006 | 0 | 5.212 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 008 | W | 8A | 32V | 0.005 | 0 | 7.68 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 1.50 | K | 1.5A | 32V | 0.085 | 0 | 0.293 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 2.50 | O | 2.5A | 32V | 0.04 | 0 | 0.625 | 60 amperes at 32V DC |
0.0027 |
| CQ06LT 3.50 | R | 3.5A | 32V | 0.022 | 0 | 1.838 | 60 amperes at 32V DC |
0.0027 |
1.Measured at ≦ 10% of rated current and 25°C.
2.Melting I2 t at 1000% of current rating.
Electrical Characteristic
| Rated current | 1 In | 2 In | 3 In | 10 In | |
| MIN | MIN | MAX. | MAX | max | |
| 1A~8A | 4hr | 1 SEC | 120 SEC | 3 SEC | 0.05 sec |
Physical Specification
Material
Construction Body Material: Ceramic
Termination Material: Silver(Ag),Nickel(Ni),Tin(Sn)
Fuse Element: Silver(Ag)
Packaging
1. Tape & Reel : 8mm tape
2. Packaging Specification : EIA Standard 481-D
3.Quantity : 4,000 pcs per reel.
