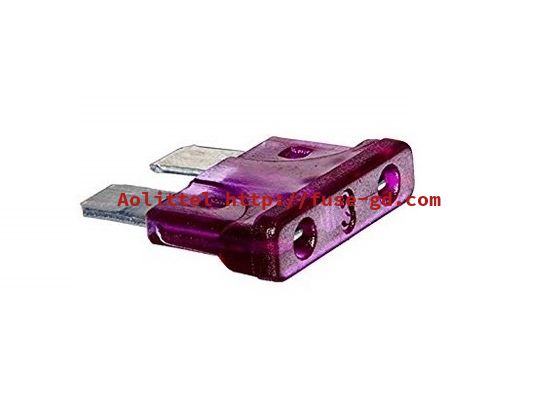

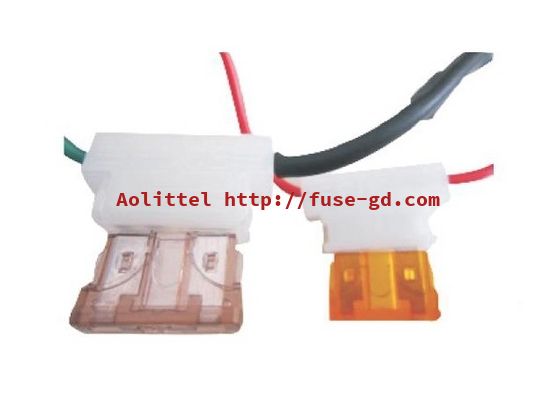

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized
Product Attributes :
Specifications
Product Name: 19mm Auto Blade Fuse
Size: 19x5.2x19.2mm
Rated Current: 3A
Voltage Rating: 32V/58V/60V/80V
Encapsulation: Plastic PA66
Metal: Zinc Alloy
Standard: SAE J1284/ UL 248
Fuse Type: Fast-acting
Highlight:
mini blade car fuses
,mini blade fuses for cars
Product Description
Product Description
Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized
General

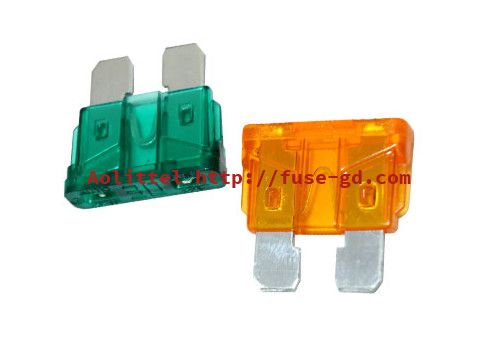

The Aolittel AB19 Blade Fuse is an ATO
style blade fuse rated at 32V/58V/60V/80V, featuring a three part construction with copper contacts for excellent reliability in harsh environment conditions and low voltage drop. Current ratings 3A thru 45A. Filled with arc-quenching material.
Size
| Fast Acting, Low Voltage For UP To 32V/60V DC | |
| Material | *Body: Plastic. *Metal: Zinc Alloy |
| Standard | According To SAE J1284 |
| Circuit Protection To Replace Fusible Wire OR Fusible Link. | |
| Fuses Are Color-Coded For Easy Amperage Identification. | |
Electrical Performances
| Part Number | Ampere(A) | Voltage (VDC) |
Body Color |
| AB19001 | 1A | 32V/60V | Black |
| AB19002 | 2A | 32V/60V | Gray |
| AB19003 | 3A | 32V/60V | Violte |
| AB19004 | 4A | 32V/60V | Pink |
| AB19005 | 5A | 32V/60V | Tan |
| AB1907.5 | 7.5A | 32V/60V | Brown |
| AB19010 | 10A | 32V/60V | Red |
| AB19015 | 15A | 32V/60V | Blue |
| AB19020 | 20A | 32V/60V | Green |
| AB19025 | 25A | 32V/60V | Natural |
| AB19030 | 30A | 32V/60V | Green |
| AB19035 | 35A | 32V/60V | bottle green |
| AB19040 | 40A | 32V/60V | Orange |
| AB19045 | 45A | 32V/60V | Violte |
Time-Current Characteristics
| In | 110%In | 135%In | 200%In | 350%In | 600%In | ||||
| 20-120A | >100Hours | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 60 s | 3600 s | 2 s | 60 s | 0.2 s | 7 s | 0.04 s | 0.1 s | ||
Pre-Arcing Time-Limits
FI = 1.43 (max.operating current: 0.7 x Irat at 23°C)
Size groups
| Blade Size | Blade Group | Dimensions L × W × H | Common Ratings (Maximum Current) |
| Micro2 | APT, ATR | 9.1 × 3.8 × 15.3 mm | 5, 7.5, 10, 15, 20, 25, 30 |
| Micro3 | ATL | 14.4 × 4.2 × 18.1 mm | 5, 7.5, 10, 15 |
| LP-Mini | APS, ATT | 10.9 × 3.81 × 8.73 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30 |
| Mini | APM, ATM | 10.9 × 3.6 × 16.3 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30 |
| Regular |
APR, ATC (Closed), ATO (open), ATS |
19.1 × 5.1 × 18.5 mm | 0.5, 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40 |

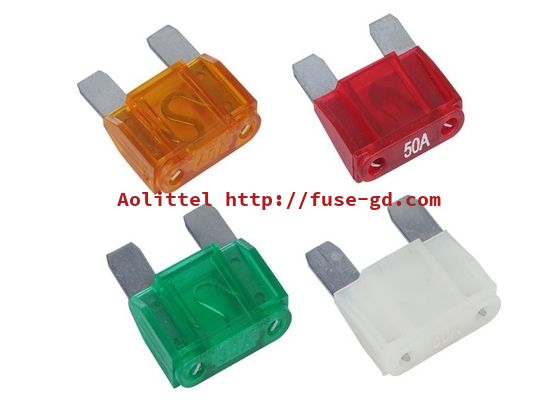

| Maxi | APX | 29.2 × 8.5 × 34.3 mm | 20, 25, 30, 35, 40, 50, 60, 70, 80, 100, 120 |
Color coding
| Color |
Continuous ampere (=rated current) |
Instantaneous fusing ampere |
Continuous fusing ampere |
| Blue | 1.5 | 3.5 | 3 |
| Yellow | 2.25 | 5 | 4.5 |
| Red on Yellow | 2.5 | 6 | 5 |
| Green | 3 | 7 | 6 |
| Nut Brown | 4 | 10 | 8 |
| Red on Green | 5 | 12 | 10 |
| Green on Black | 5 | 12 | 10 |
| Red on Brown | 6 | 14 | 12 |
| Light Brown | 7.5 | 18 | 15 |
| Pink | 12.5 | 30 | 25 |
| White | 17.5 | 40 | 35 |
| Purple on Yellow | 25 | 60 | 50 |
| Yellow on Red | 30 | 75 | 60 |
