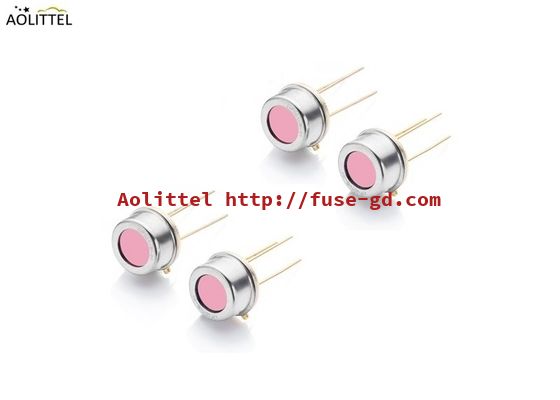

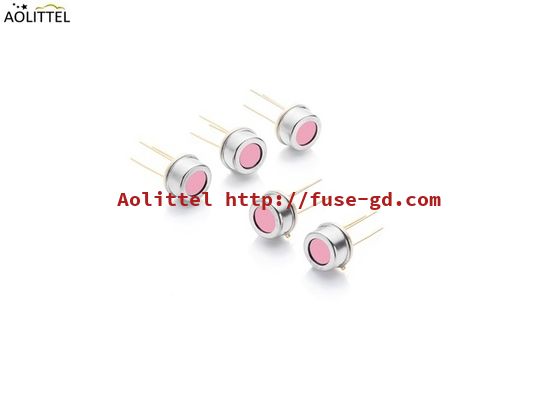

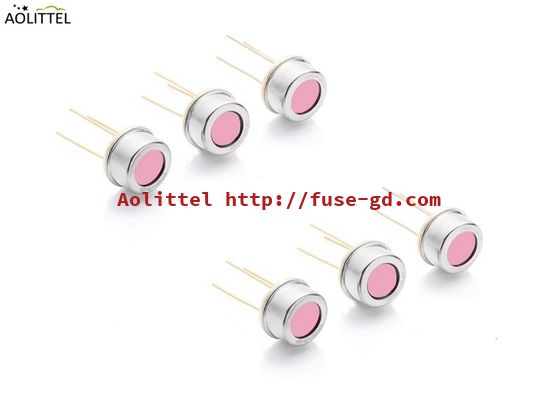

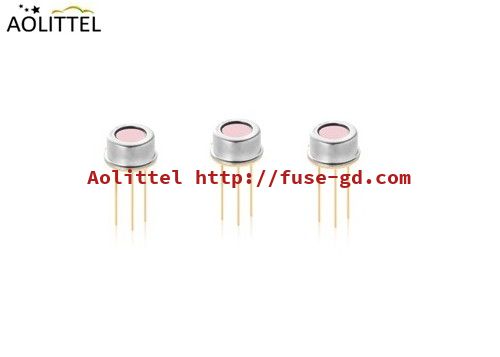

Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter
Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter
Application
Flame detector has been widely-used in all kinds of oil storage facilities, and large warehouses etc. It has become the standard equipments for high –risk fire areas, such as petroleum, chemical industry, paper making, metallurgy, nuclear power plants. It has also been more and more popular among high-level residence, commercial districts, and general industrial districts.
Flame Detection
Inductrial Control
Motion Sensing
Gas Analysis
Pyrometry
Instrumentation
Furnace Flame Control
______________________________________________________________________________
Download________
Technical Parameters
| Technique Data | label | Typical Value | Unit |
| Detect window size | 5.5(Diameter) | mm | |
| Element size | As | 2.5(Diameter) | mm |
| Offset Voltage | Vs | 0.4&sh;0.8 | V |
| Operating Voltage | Vd | 2-15 | V |
| View Angle | 85 | ° | |
| Output signal @10Hz | Vs | 35 | uV |
| Noise@10Hz | Vn | <180 | nVrms |
| Responsivity@10Hz | Rv | >500 | V/W |
| D* @10Hz | D | >4×108 | cm Hz1/2/W |
| Operating Temp | T | -25&sh;+60 | ℃ |
| Fliter Size | Diameter 5.5 | mm | |
| Fliter | Vavelength 4.3um,Band width600nm | ||

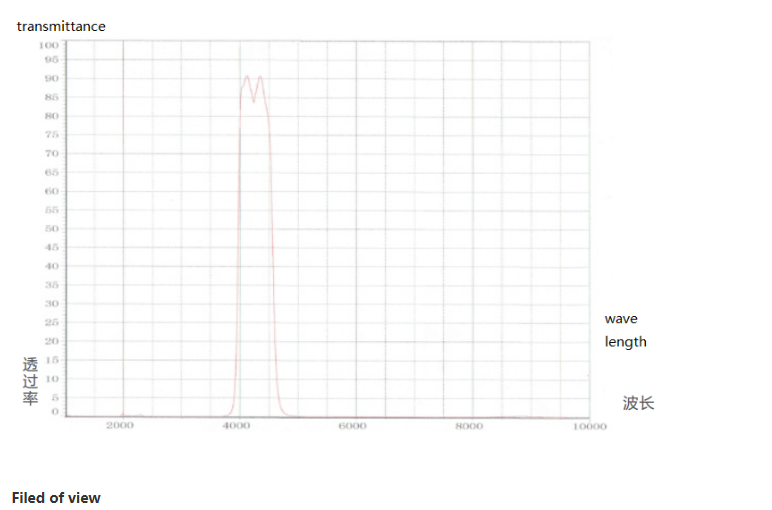

Typical Filters parameters
Typical Filters parameters, and other parameters can be customized.
| CWL | 3800±40nm | 4400±45nm |
| HPB | 180±20nm | 400±20nm |
| Detector type | LVF001-H-01 | LVF001-I-01 |
