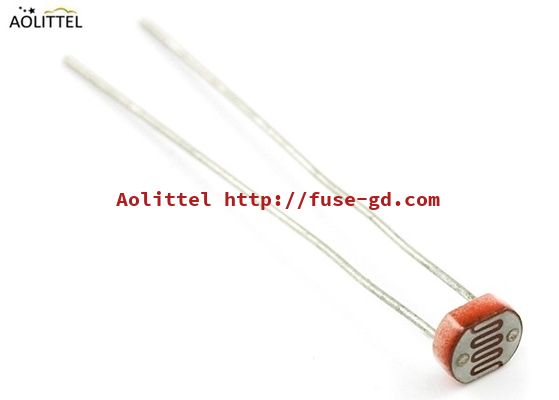

4mm Dia CdS Photoconductive Photocell Photoresistor Light Sensor 540nm For Camera Exposure
Product Attributes :
Specifications
Item: CdS Photoconductive Photocell Photoresistor Light Sensor
Diameter: 4mm
Operating Temperature: -30°C ~ 70°C (TA)
Cell Resistance @ Illuminance: 2 ~ 200 KOhms @ 10 Lux
Cell Resistance (Min) @ Dark: 0.1 ~ 10 MOhms @ 10s
Fall Time (Typ): 30ms
Rise Time (Typ): 30ms
Voltage - Max: 150Vpk
Wavelength: 520nm
Color: Red
Product Description
Product Description
4mm Dia CdS Photoconductive Photocell Photoresistor Light Sensor 540nm For Camera Exposure
Typical Applications
| Photometry | For Exposure Meters Programmed electronic shutter Auto-exposure circuit General-purpose illuminometer For Low exposure alarm Low-light-level detection Counterlight level detection White-balance control for video camera |
Light Control |
For light Dimmers For Automatic Light switch Street lamp, doorway lamp, garden lamp Beacon nighttime automobile Headlight |
| Detection | Paper and card reading For heating systems Flame monitor for oil burner Electronic toy such as beam gun Intruder alarm, security system |
| Audio | Non-contact volume control For Melody Toys, card, tea cup, etc. Auto-return system for turntable Modulation circuit |
Description
Cadmium Sulfoselenide (CdS) sensors are low cost photoconductive devices for visible light measurement. Their resistance decreases as the light level increases with efficiency characteristics similar to the human eye.
The GM45 Series are (CdS), Photoconductive photocells designed to sense light from 400 to 700 nm. These light dependent resistors are available in a wide range of resistance values. They’re packaged in a two leaded plastic-coated ceramic header.
Specification
| Name | Model |
Max. Voltage VDC |
Max. Power mw |
Environment Temperature (℃) |
Spectrum Peak nm |
Light Resistance (10Lux) KΩ |
Dark Resistance ≥MΩ |
γ100 10 |
Response Time (ms) |
|
| Increase | Decrease | |||||||||
|

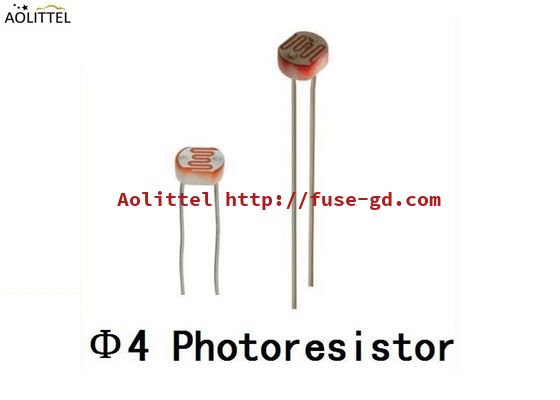

φ4 Series |
GM4506 | 150 | 50 | -30~+70 | 540 | 2-5 | 0.1 | 0.5 | 30 | 30 |
| GM4516 | 150 | 50 | -30~+70 | 540 | 5-10 | 0.2 | 0.5 | 30 | 30 | |
| GM4528 | 150 | 50 | -30~+70 | 540 | 10-20 | 1 | 0.6 | 30 | 30 | |
| GM4537-1 | 150 | 50 | -30~+70 | 540 | 20-30 | 2 | 0.6 | 30 | 30 | |
| GM4537-2 | 150 | 50 | -30~+70 | 540 | 30-50 | 3 | 0.7 | 30 | 30 | |
| GM4539 | 150 | 50 | -30~+70 | 540 | 50-100 | 5 | 0.8 | 30 | 30 | |
| GM4549 | 150 | 50 | -30~+70 | 540 | 100-200 | 10 | 0.9 | 30 | 30 |
|
