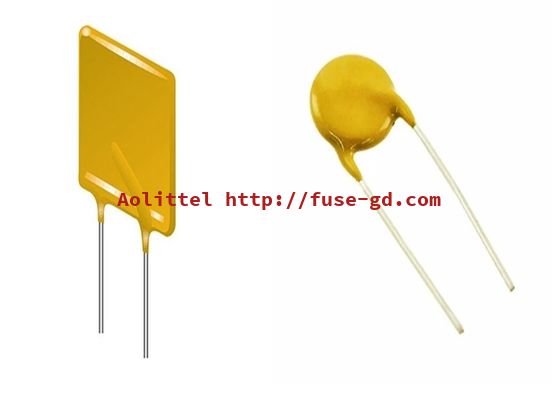

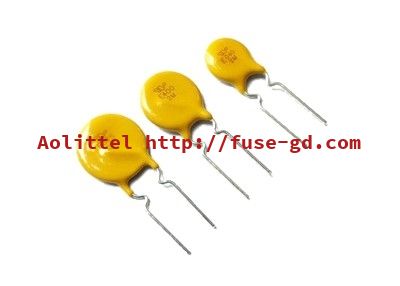

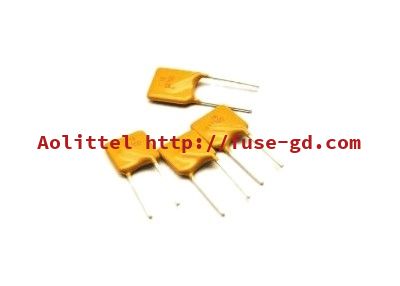

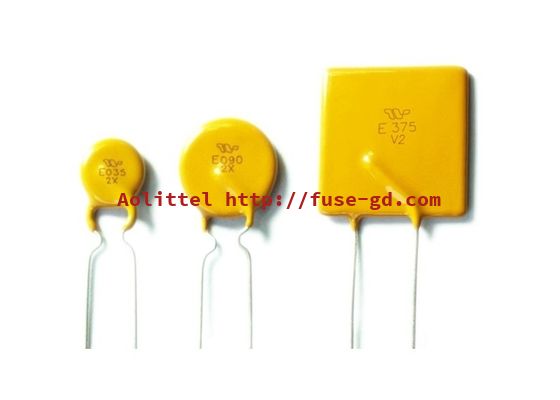

Disc Auto Reset Positive Temperature Coefficient PTC Resettable Fuse TRE025 120V 250mA With UL CSA TUV RoHS Certificate
smd ptc resettable fuse
,positive temperature coefficient fuse
Disc Auto Reset Positive Temperature Coefficient PTC Resettable Fuse TRE025 120V 250mA With UL CSA TUV RoHS Certificate
Description
Rated to 120 VAC/VDC, these fuses from Aolittel boast a unique polymer formulation to ensure long-life performance and unparalleled reliability. Their capacity to limit the flow of dangerously high current during fault conditions allows them to protect products and systems during over-current surges and over-temperature faults.
______________________________________________________________________________
Download________
Application
Line voltage power supplies
Transformers and appliances
Set-box
Features
RoHS 2 compliant and Halogen free
Operating temperature: -40°C to +85°C
Hold current: -100 mA to 5 A
High voltage ratings: -120 VAC/VDC
Electrical Performances
| P/N | IH, (A) | IT,(A) | Vmax,(v) | Imax,(A) | Vmax,Vac(dc) | (A) | (Sec.) | Pd typ(W) | (Ω) | ||
| Rmin | Rmin | R1max | |||||||||
| TRE010 | 0.10 | 0.20 | 120 | 2.0 | 135 | 0.50 | 11.0 | 0.85 | 2.50 | 5.50 | 7.50 |
| TRE015 | 0.15 | 0.30 | 120 | 2.0 | 135 | 0.75 | 11.0 | 0.85 | 1.50 | 4.00 | 7.00 |
| TRE017 | 0.17 | 0.34 | 120 | 2.0 | 135 | 0.85 | 11.0 | 0.85 | 1.40 | 3.80 | 7.00 |
| TRE020 | 0.20 | 0.40 | 120 | 2.0 | 135 | 1.00 | 9.0 | 1.08 | 1.00 | 2.50 | 4.40 |
| TRE025 | 0.25 | 0.50 | 120 | 3.0 | 135 | 1.25 | 8.5 | 1.08 | 0.80 | 2.00 | 3.00 |
| TRE030 | 0.30 | 0.60 | 120 | 3.0 | 135 | 1.50 | 8.5 | 1.44 | 0.70 | 1.80 | 2.10 |
| TRE035 | 0.35 | 0.70 | 120 | 3.0 | 135 | 1.75 | 8.5 | 1.44 | 0.60 | 1.20 | 1.80 |
| TRE040 | 0.40 | 0.80 | 120 | 3.0 | 135 | 2.0 | 6.5 | 1.44 | 0.50 | 1.10 | 1.29 |
| TRE050 | 0.50 | 1.00 | 120 | 3.0 | 135 | 2.5 | 6.0 | 1.56 | 0.40 | 1.00 | 1.17 |
| TRE055 | 0.55 | 1.10 | 120 | 3.0 | 135 | 2.75 | 6.0 | 1.56 | 0.30 | 0.90 | 1.10 |
| TRE055U | 0.55 | 1.10 | 120 | 3.0 | 135 | 2.75 | 6.0 | 1.56 | 0.30 | 0.90 | 1.10 |
| TRE065 | 0.65 | 1.30 | 120 | 5.0 | 135 | 3.25 | 6.0 | 1.68 | 0.25 | 0.70 | 0.90 |
| TRE070 | 0.75 | 1.50 | 120 | 5.0 | 135 | 3.50 | 6.3 | 1.80 | 0.25 | 0.70 | 0.90 |
| TRE075 | 0.75 | 1.50 | 120 | 7.5 | 135 | 3.75 | 7.0 | 2.64 | 0.20 | 0.60 | 0.80 |
| TRE090 | 0.90 | 1.80 | 120 | 7.5 | 135 | 4.5 | 7.2 | 1.80 | 0.18 | 0.40 | 0.70 |
| TRE100 | 1.00 | 2.00 | 120 | 10.0 | 135 | 5.00 | 15.0 | 2.64 | 0.16 | 0.38 | 0.60 |
| TRE110 | 1.10 | 2.20 | 120 | 10.0 | 135 | 5.50 | 15.0 | 2.28 | 0.15 | 0.38 | 0.58 |
| TRE125 | 1.25 | 2.50 | 120 | 10.0 | 135 | 6.25 | 20.0 | 2.88 | 0.11 | 0.30 | 0.35 |
| TRE130 | 1.30 | 2.60 | 120 | 10.0 | 135 | 6.50 | 20.0 | 2.64 | 0.11 | 0.30 | 0.35 |
| TRE135 | 1.35 | 2.70 | 120 | 10.0 | 135 | 6.75 | 20.0 | 3.12 | 0.11 | 0.30 | 0.35 |
| TRE160 | 1.60 | 3.20 | 120 | 12.0 | 135 | 8.00 | 16.4 | 3.12 | 0.09 | 0.20 | 0.22 |
| TRE185 | 1.85 | 3.70 | 120 | 12.0 | 135 | 9.25 | 12.6 | 3.36 | 0.08 | 0.17 | 0.21 |
| TRE200 | 2.00 | 4.00 | 120 | 15.0 | 135 | 10.00 | 36.0 | 4.32 | 0.08 | 0.16 | 0.21 |
| TRE250 | 2.50 | 5.00 | 120 | 15.0 | 135 | 12.50 | 15.6 | 4.44 | 0.05 | 0.13 | 0.17 |
| TRE300 | 3.00 | 6.00 | 120 | 17.0 | 135 | 15.00 | 19.8 | 4.56 | 0.04 | 0.10 | 0.15 |
| TRE375 | 3.75 | 7.50 | 120 | 25.0 | 135 | 18.75 | 24.0 | 4.80 | 0.03 | 0.08 | 0.12 |
| TRE500 | 5.00 | 10.0 | 120 | 27.5 | 135 | 25.00 | 24.0 | 4.80 | 0.02 | 0.06 | 0.07 |
