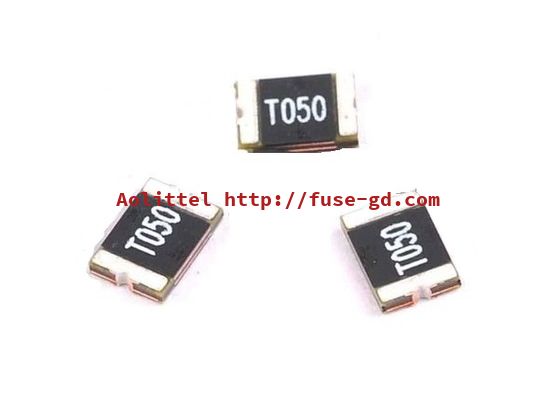

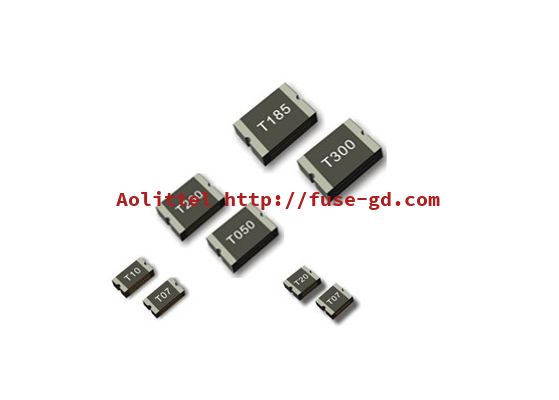

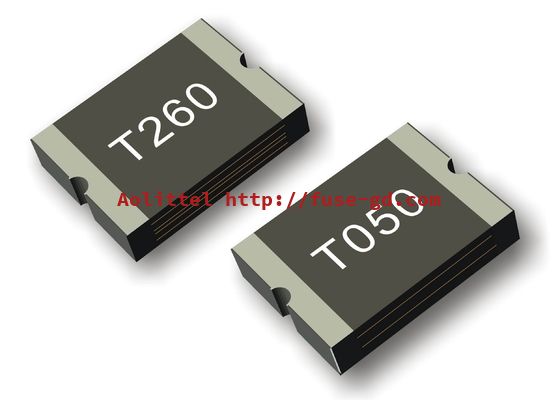

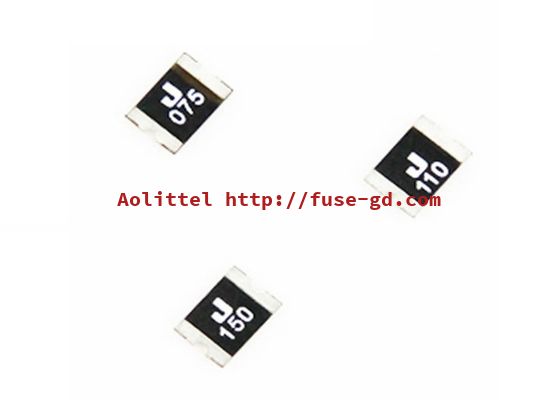

Compact Design MSMD Series 1812 Footprint 4.6x3.2mm 4532 SMT Surface Mount PTC Resettable Fuse 6-60VDC 0.1-3A
Compact Design MSMD Series 1812 Footprint 4.6x3.2mm 4532 SMT Surface Mount PTC Resettable Fuse 6-60VDC 0.1-3A
Quick Details
100% compatible with the MSMD type Directly solderable on printed circuit boards,The 1812 Series PTC provides surface mount overcurrent protection for applications where resettable protection is desired.
| Current - Hold (Ih) (Max): | 100mA ~ 3A |
| Current - Max: | 10A ~ 100A |
| Current - Trip (It): | 300mA ~ 5.2A |
| Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | 1812 (4532 Metric), Concave |
| Packaging: | Tape & Reel (TR) |
| Resistance - Initial (Ri) (Min): | 12 mOhms ~ 1.6 Ohms |
| Resistance - Post Trip (R1) (Max): | 40 mOhms ~ 15 Ohms |
| Time to Trip: | 20ms ~ 5s |
| Type: | Polymeric |
| Voltage - Max: | 6V ~ 60V |
Electronics Perormances
|
P/N |
|
|
|
|
|
|
(Ω) |
||
|
IH, (A) |
IT,(A) |
Vmax,(v) |
Imax,(A) |
(A) |
(Sec.) |
Pd typ(W) |
Rmin |
R1max |
|
|
MSMD010 |
0.10 |
0.30 |
60 |
10 |
0.5 |
1.50 |
0.8 |
0.700 |
15.000 |
|
MSMD014 |
0.14 |
0.34 |
60 |
10 |
1.5 |
0.15 |
0.8 |
0.400 |
6.500 |
|
MSMD020 |
0.20 |
0.40 |
30 |
10 |
8.0 |
0.02 |
0.8 |
0.750 |
5.00 |
|
MSMD020/60 |
0.20 |
0.40 |
60 |
10 |
1.5 |
0.15 |
0.8 |
0.400 |
6.000 |
|
MSMD030 |
0.30 |
0.60 |
30 |
10 |
8.0 |
0.10 |
0.8 |
0.300 |
3.000 |
|
MSMD035 |
0.35 |
0.70 |
16 |
10 |
8.0 |
0.10 |
0.8 |
0.200 |
1.800 |
|
MSMD050 |
0.50 |
1.00 |
16 |
30 |
8.0 |
0.15 |
0.8 |
0.150 |
1.000 |
|
MSMD075 |
0.75 |
1.50 |
16 |
40 |
8.0 |
0.20 |
0.8 |
0.110 |
0.450 |
|
MSMD075/24 |
0.75 |
1.50 |
24 |
40 |
8.0 |
0.20 |
0.8 |
0.110 |
0.450 |
|
MSMD075/33 |
0.75 |
1.50 |
33 |
40 |
8.0 |
0.20 |
0.8 |
0.110 |
0.450 |
|
MSMD110 |
1.10 |
2.20 |
6 |
100 |
8.0 |
0.30 |
0.8 |
0.040 |
0.225 |
|
MSMD110/16 |
1.10 |
2.20 |
16 |
100 |
8.0 |
0.50 |
0.8 |
0.040 |
0.225 |
|
MSMD110/24 |
1.10 |
2.20 |
24 |
100 |
8.0 |
0.50 |
0.8 |
0.055 |
0.180 |
|
MSMD125 |
1.25 |
2.50 |
6 |
40 |
8.0 |
0.40 |
0.8 |
0.035 |
0.140 |
|
MSMD150 |
1.50 |
3.00 |
6 |
100 |
8.0 |
0.50 |
0.8 |
0.030 |
0.120 |
|
MSMD150/12 |
1.50 |
3.00 |
12 |
100 |
8.0 |
0.50 |
1.0 |
0.030 |
0.120 |
|
MSMD150/24 |
1.50 |
3.00 |
24 |
20 |
8.0 |
1.50 |
1.0 |
0.030 |
0.140 |
|
MSMD160 |
1.60 |
3.20 |
8 |
100 |
8.0 |
0.50 |
0.8 |
0.025 |
0.120 |
|
MSMD160/12 |
1.60 |
3.20 |
12 |
100 |
8.0 |
1.00 |
1.0 |
0.025 |
0.120 |
|
MSMD160/16 |
1.60 |
3.20 |
16 |
100 |
8.0 |
1.00 |
1.0 |
0.025 |
0.120 |
|
MSMD200 |
2.00 |
4.00 |
16 |
100 |
8.0 |
3.00 |
0.8 |
0.020 |
0.080 |
|
MSMD250/16 |
2.50 |
5.00 |
16 |
100 |
8.0 |
5.00 |
1.2 |
0.015 |
0.100 |
|
MSMD260 |
2.60 |
5.20 |
16 |
100 |
8.0 |
5.00 |
0.8 |
0.015 |
0.080 |
|
MSMD300 |
3.00 |
6.00 |
12 |
100 |
8.0 |
5.00 |
0.8 |
0.012 |
0.060 |

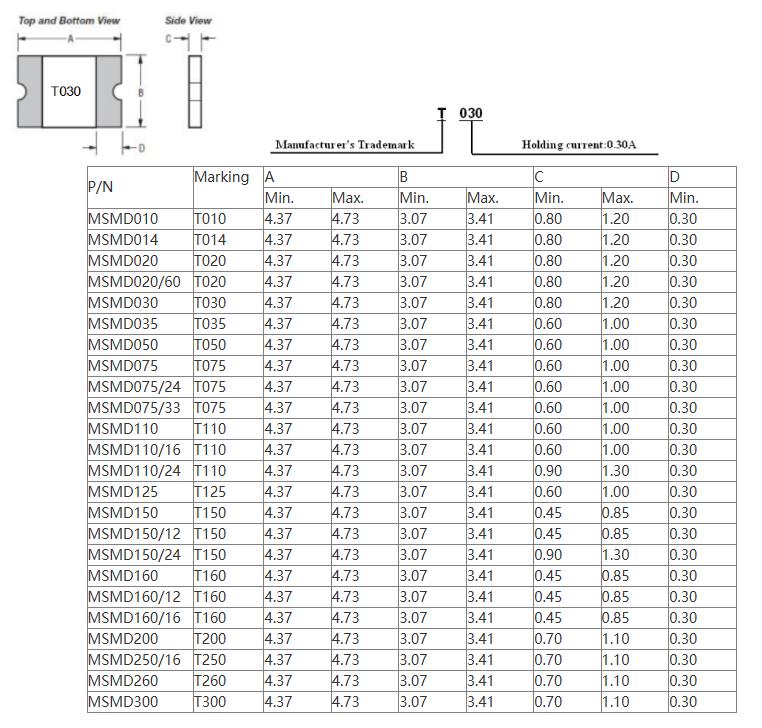

Product Dimensions & Marking (Unit: mm)
Reliability
| Resistance to Soldering Heat | 260 °C / 10 sec |
| Passing Aging | +85 °C, 1000 Hours -> +/- 5% Typical Resistance Change |
| Humidity Aging | +85 °C, 85% r.h., 1000 Hours -> +/- 5% Typical Resistance Change |
| Thermal Shock | +85 °C to -40 °C, 20 Times -> +/- 10% Typical Resistance Change |
| Vibration | MIL-STD-883C, Method 2007.1, Test Condition A |
| Resistance to Solvents | MIL-STD-202, Methode 215 |
Application
Hard disk drives
PC motherboards
PC peripherals
PCMCIA cards
USB port protection
PCI cards
Plug and play protection for motherboards and peripherals
Game console port protection
