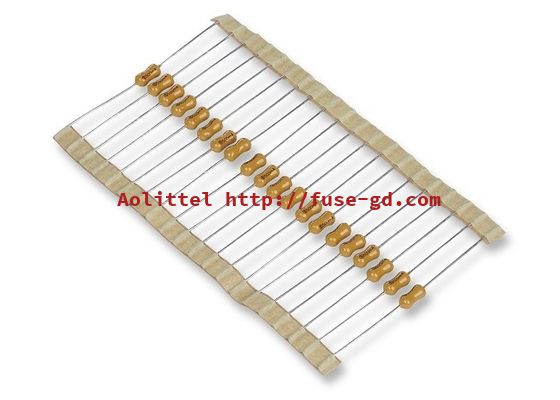

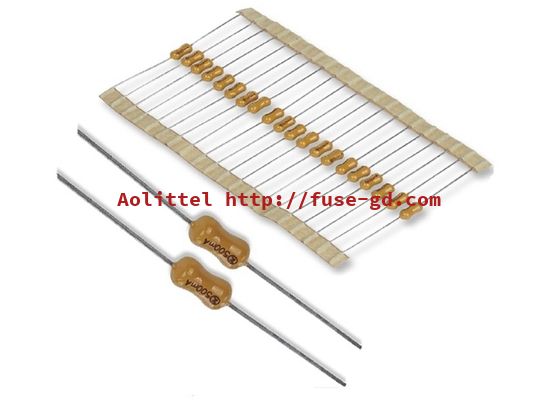

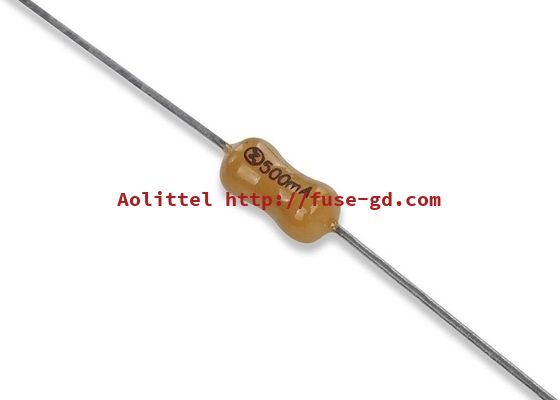

4.0mm Width x 12mm Length Epoxy Coated Time Lag Slow Blow Pico Axial Pico Fuse T 1A 350V 277V Subminiature Fuse

4.0mm Width x 12mm Length Epoxy Coated Time Lag Slow Blow Pico Axial Pico Fuse T 1A 350V 277V Subminiature Fuse

Product Tags :

Product Attributes :

Specifications

Fuse Name: Pico Fuse

Current Rating: 6A

Voltage: 350 Volts

Length: 12.0 Millimeters

Width: 4.0 Millimeters

Certificates: UL,cUL

Product Description

4.0mm Width x 12mm Length Epoxy Coated Time Lag Slow Blow Pico Axial Pico Fuse T 1A 350V 277V Subminiature Fuse

Description

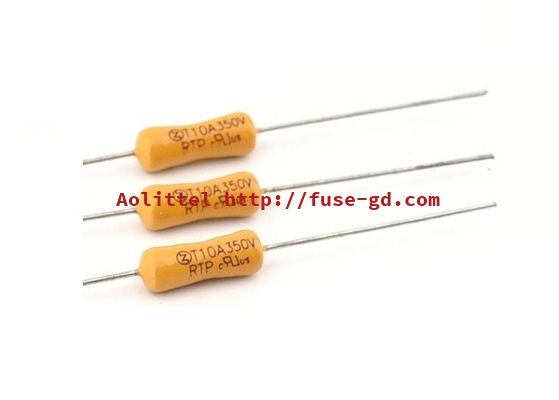

The RTP series 350V Time-Lag pico Fuse is designed for high voltage applications that require moderate in–rush withstand and is in a space-saving subminiature package.

Features

Moderate in–rush withstand
Miniature size
Wide current range (100mA to 15A)
RoHS compliant
Halogen-free available
Wide operating temperature range
Low temperature de-rating

Dimension (mm)

Single product	Tape size

Operating Characteristics

% of Ampere Rating(In)	Blowing Time
100% * In	4 hours Min
200% * In	60 sec Max

Part numbering

Part No.	Ampere Rating	Voltage Rating	Breaking Capacity	Agency Approvals
Part No.	Ampere Rating	Voltage Rating	Breaking Capacity	UL	cUL	PSE
RTP0100	100mA	350V	50A@350VAC	●	●	○
RTP0125	125mA	350V	50A@350VAC	●	●	○
RTP0160	160mA	350V	50A@350VAC	●	●	○
RTP0200	200mA	350V	50A@350VAC	●	●	○
RTP0250	250mA	350V	50A@350VAC	●	●	○
RTP0300	300mA	350V	50A@350VAC	●	●	○
RTP0315	315mA	350V	50A@350VAC	●	●	○
RTP0350	350mA	350V	50A@350VAC	●	●	○
RTP0375	375mA	350V	50A@350VAC	●	●	○
RTP0400	400mA	350V	50A@350VAC	●	●	○
RTP0500	500mA	350V	50A@350VAC	●	●	○
RTP0600	600mA	350V	50A@350VAC	●	●	○
RTP0630	630mA	350V	50A@350VAC	●	●	○
RTP0700	700mA	350V	50A@350VAC	●	●	○
RTP0750	750mA	350V	50A@350VAC	●	●	○
RTP0800	800mA	350V	50A@350VAC	●	●	○
RTP1100	1A	350V	50A@350VAC	●	●	○
RTP1125	1.25A	350V	50A@350VAC	●	●	○
RTP1150	1.5A	350V	50A@350VAC	●	●	○
RTP1160	1.6A	350V	50A@350VAC	●	●	○
RTP1200	2A	350V	50A@350VAC	●	●	○
RTP1250	2.5A	350V	50A@350VAC	●	●	○
RTP1300	3A	350V	50A@350VAC	●	●	○
RTP1315	3.15A	350V	50A@350VAC	●	●	○
RTP1350	3.5A	350V	50A@350VAC	●	●	○
RTP1400	4A	350V	50A@350VAC	●	●	○
RTP1500	5A	350V	50A@350VAC	●	●	○
RTP1600	6A	350V	50A@350VAC	●	●	○
RTP1630	6.3A	350V	50A@350VAC	●	●	○
RTP1700	7A	350V	50A@350VAC	●	●	○
RTP1800	8A	350V	50A@350VAC	●	●	○
RTP1900	9A	350V	50A@350VAC	●	●	○
RTP2100	10A	350V	50A@350VAC	●	●	○
RTP2120	12A	350V	50A@350VAC	○	○	○
RTP2150	15A	350V	50A@350VAC	○	○	○
