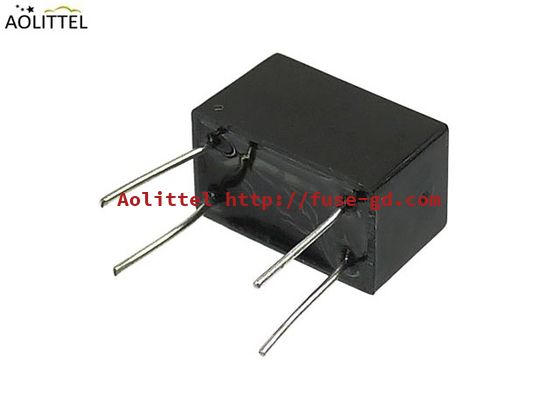

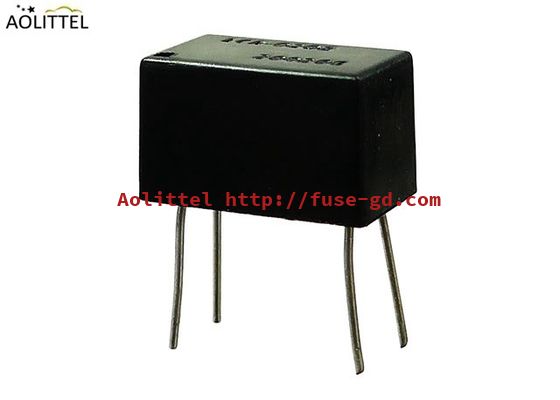

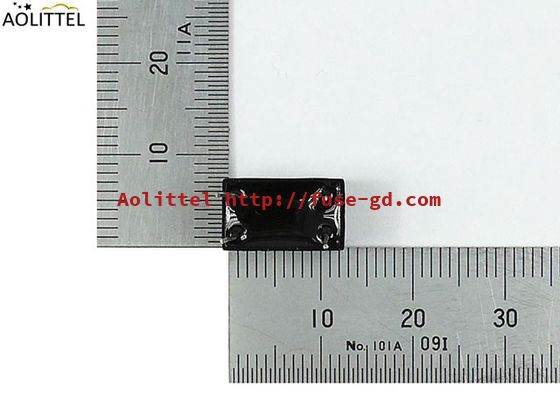

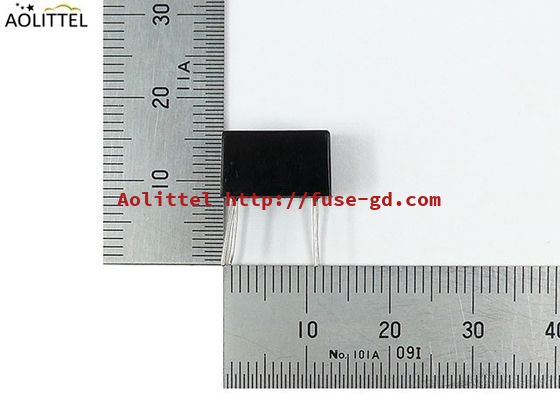

ST Vactrol LCR-0202 Cross 4Pins Dip Photo Conductive Analog Linear Optocoupler WDYJ-0202 With Forward Voltage 2.5V
Product Attributes :
Specifications
Model: 4Pins Dip Photo Conductive Analog Linear Optocoupler
Encapsulation: DIP-4
Input Current: 0-20mA ,Max:40mA
Input Voltage: 1.6-2.5Vdc
Output Light Resistance: 50 Ohm-1K Ohm@20mA-0.01mA
Output Dark Resistance: 1-10M Ohm (Measured After Cutoff 10 Sec)
Response Time: <2.5mS
Insulation Voltage: >2000VRMS
Work Frequency: <300KHz
Terminal Withstand Voltage: <50V

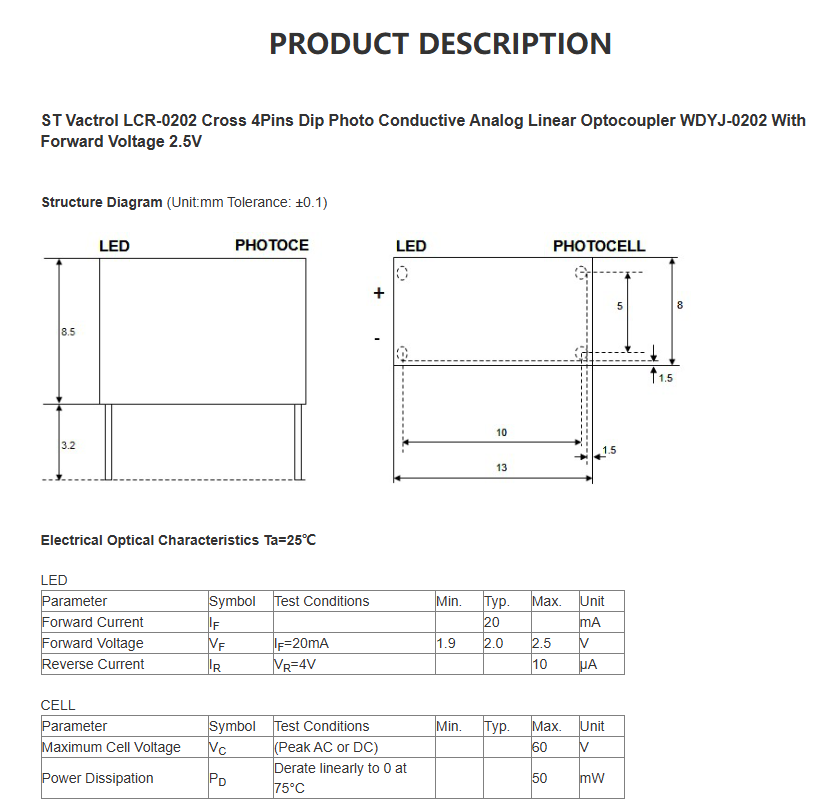

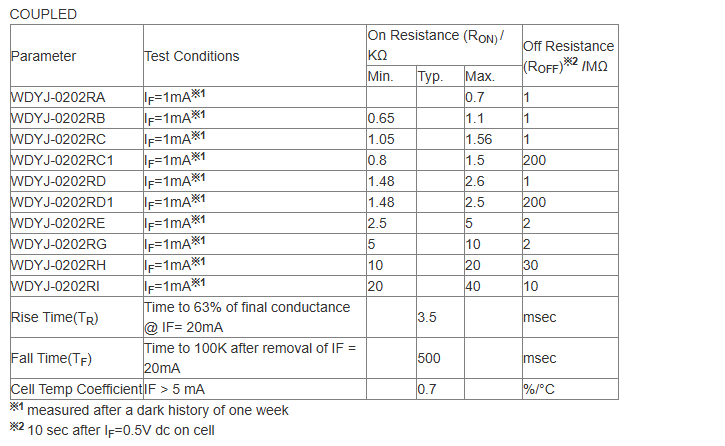

Product Description
