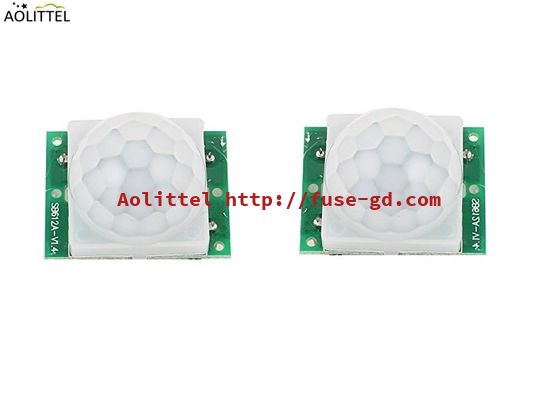

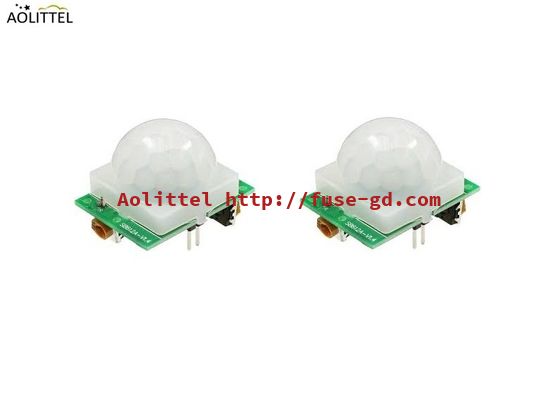

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree
Product Attributes :

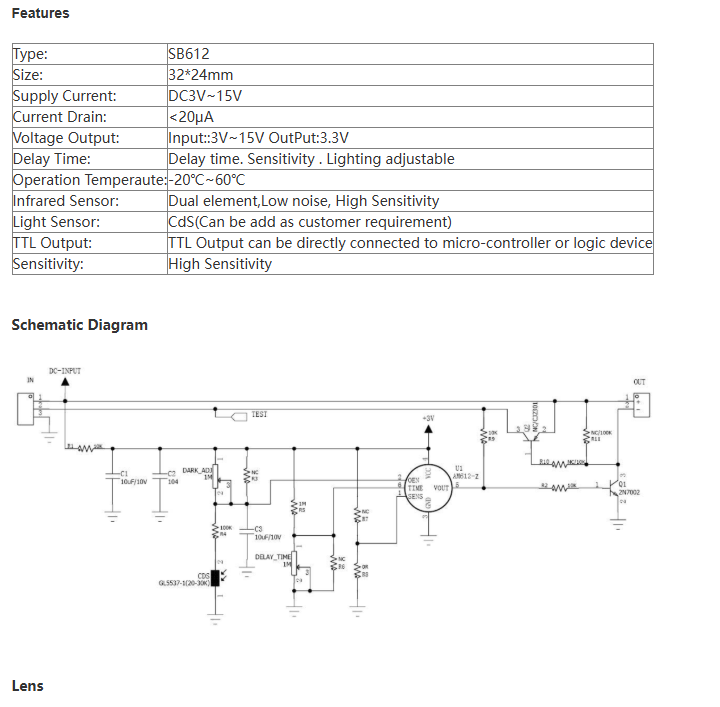

Specifications
Product Name: Human Body Dectector PIR Module SB612
Part Number: SB612A-02-001

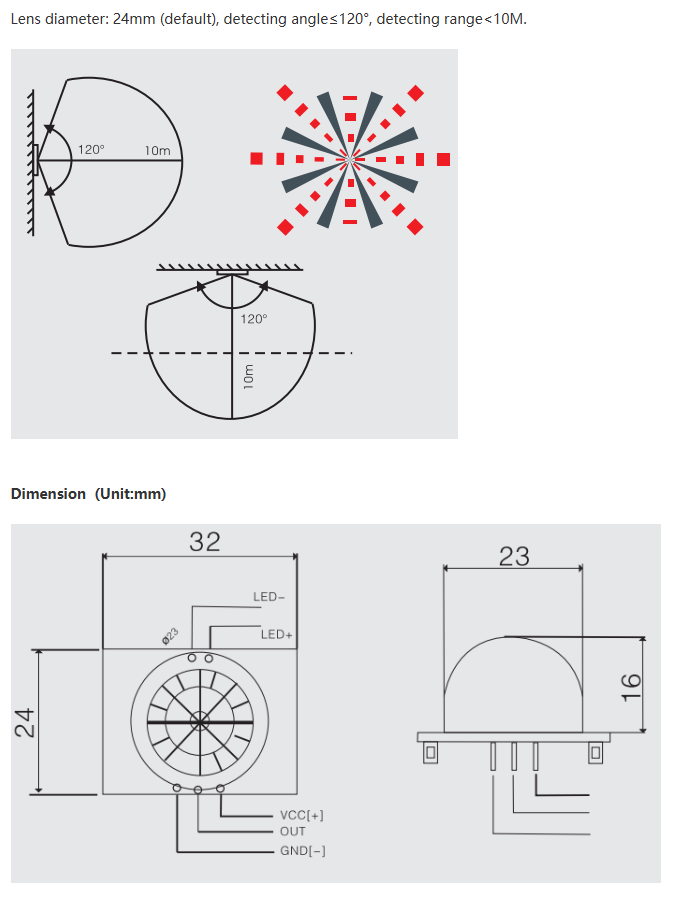

Dimension: 32*24mm
Supply Current: DC3V~15V
Current Drain: <20μA
Voltage Output: Input::3V~15V OutPut:3.3V

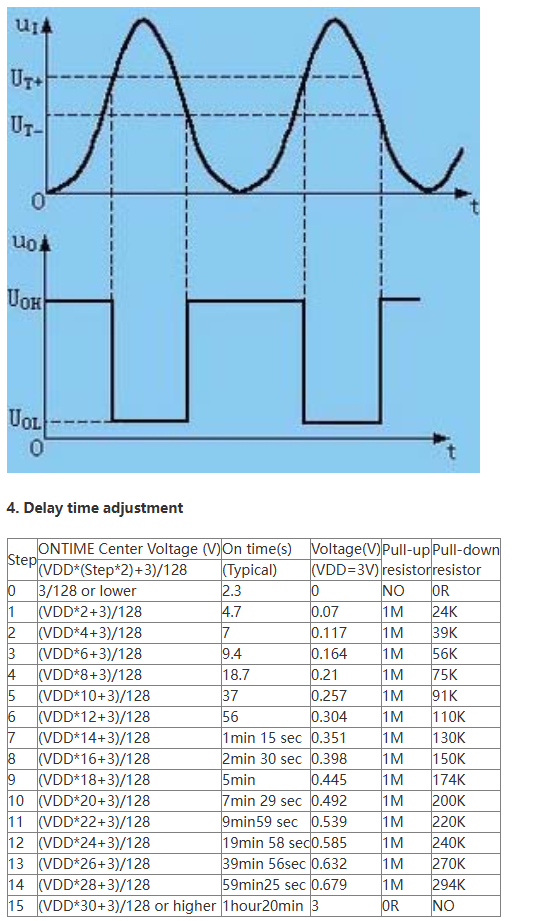

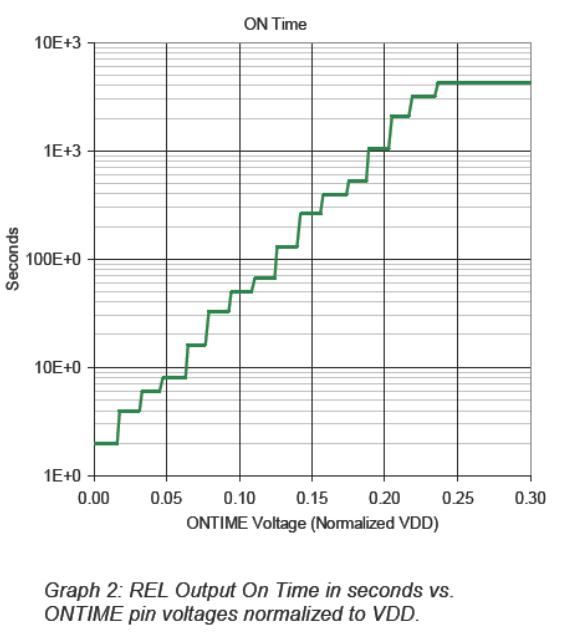

Delay Time: Delay Time、Sensitivity、Lighting Adjustable
Operation Temperature: -20℃~60℃
Infrared Sensor: Dual Element,Low Noise, High Sensitivity
Light Sensor: CdS(Can Be Add As Customer Requirement)
TTL Output: TTL Output Can Be Directly Connected To Micro-controller Or Logic Device

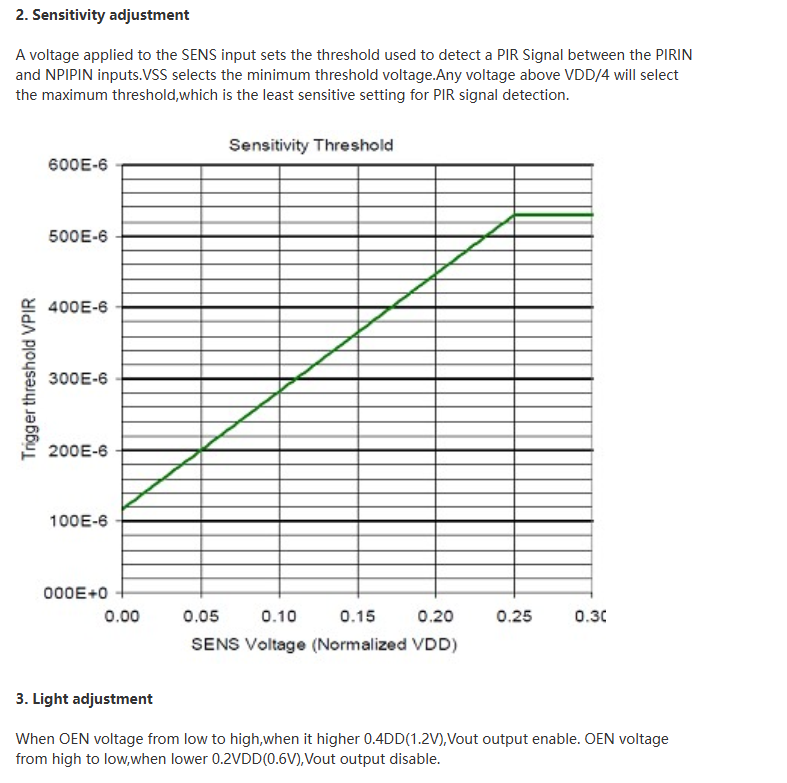

Sensitivity: High Sensitivity
Product Description
Product Description

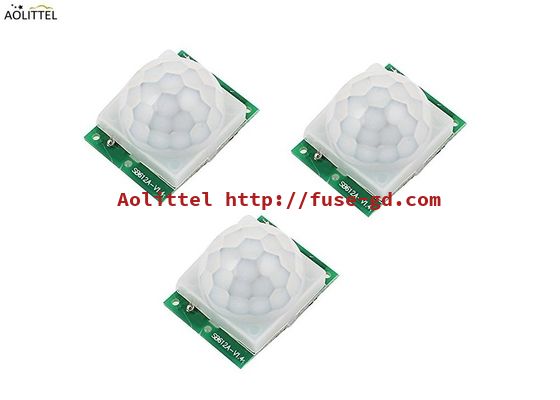

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree
Description

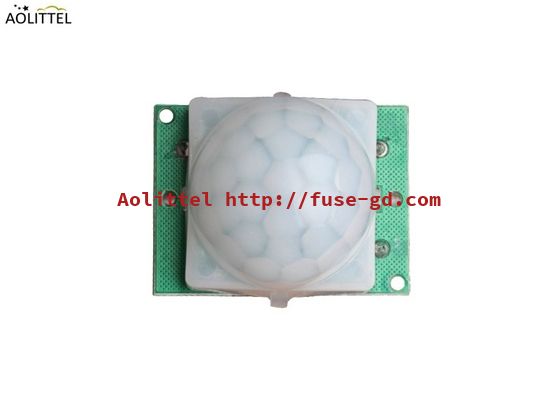

SB612A is a pyroelectric sensor module which developed for human body detection. An integrated
PIR sensor combined with a fresnel lens which is mounted on a compact PCB, and limited components to
form the module. Delay time, lux is adjustable. Customization is accepted.
