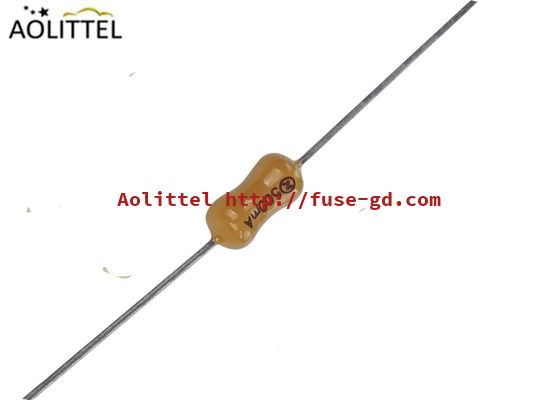

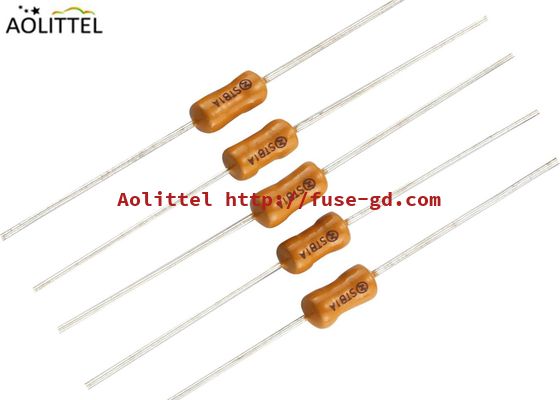

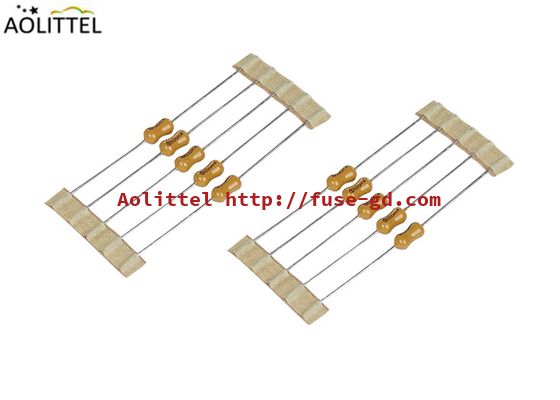

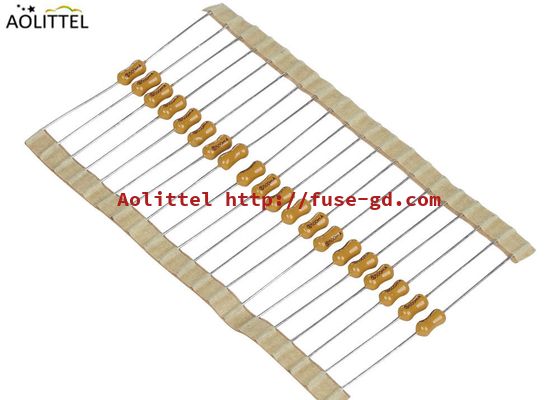

Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm

Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm

Product Tags :

Product Attributes :

Specifications

Product Type: Subminiature Axial Leaded Slow Blow Pico Fuse

Unit Weight: 4 Gram

Series: STB

Color: Yellow

Rated Voltage: 125V/250V

Rated Current: 100mA-10A

Lead Style: Axial

Recommended Hand-Solder Parameters: Solder Iron Temperature: 350°C +/- 5°C Heating Time: 5 Seconds Max.

Materials: Encapsulated, Epoxy-Coated Body; Solder Coated Copper Wire Leads; RoHS Compliant Product: Pure Tin-coated Copper Wire Leads

Solderability: MIL-STD-202, Method 208

Lead Pull Force: MIL-STD-202, Method 211, Test Condition A (will Withstand 7 Lbs. Axial Pull Test)

Operating Temperature: 55º C To +125ºC (Consider Re-rating)

Shock: MIL-STD-202, Method 213, Test Condition I (100 G’s Peak For 6 Milliseconds)

Product Description

Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm

Overview

Ao littel pico fuse , axial leaded thru-hole slow blow subminiature fuse , high temperature epoxy encapsulation, low resistance values ,offer in both fast acting and slow blow version. Rated voltage typically range at 125 volts AC , 250 volts AC and 350 volts AC .Radial leads are customzied in some series by bending the axial leads in the downward position. Ao littel pico fuse typically recognized UL and CUL approvals,.

Herewith simply conclusion:

______________________________________________________________________________

Download________

Ao littel Pico Fuse Family Member
No.	Size	Blow	Voltage	Series
1	3*8mm	Slow Blow	125V/250V	STB
2	3*8mm	Fast-acting	125V/250V	SFB
3	4*11mm	Slow Blow	350V	RTP
4	4*11mm	Fast-acting	350V	RFP

Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm 1

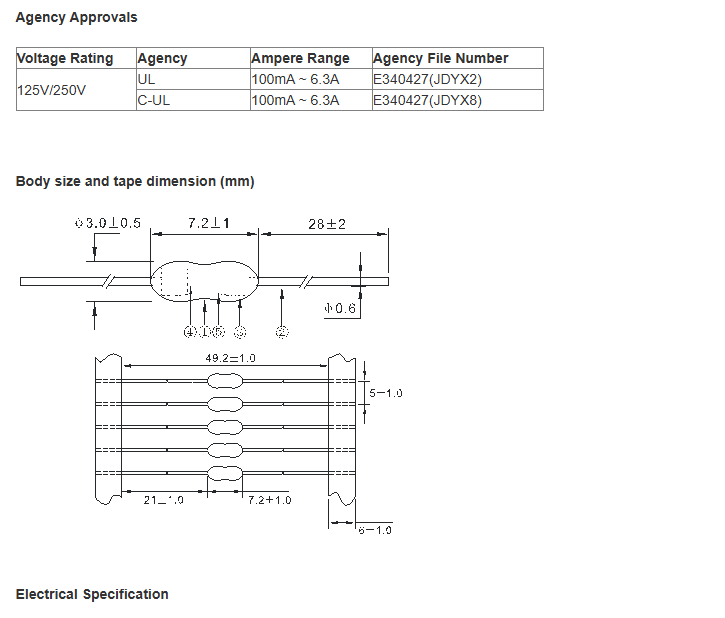

Specification ,A=250V / B=125V,● Approved / ○ Pending
P/N	Ampere Rating	Voltage Rating	Breaking Capacity	I2TMelting Integral(A2.S)	Agency Approvals
P/N	Ampere Rating	Voltage Rating	Breaking Capacity	I2TMelting Integral(A2.S)	UL	CUL	PSE
STB0100A/B	100mA	250V/125V	50A@125V/250VAC	0.01	●	●	○
STB0125A/B	125mA	250V/125V	50A@125V/250VAC	0.02	●	●	○
STB0160A/B	160mA	250V/125V	50A@125V/250VAC	0.04	●	●	○
STB0200A/B	200mA	250V/125V	50A@125V/250VAC	0.06	●	●	○
STB0250A/B	250mA	250V/125V	50A@125V/250VAC	0.09	●	●	○
STB0300A/B	300mA	250V/125V	50A@125V/250VAC	0.12	●	●	○
STB0315A/B	315mA	250V/125V	50A@125V/250VAC	0.15	●	●	○
STB0375A/B	375mA	250V/125V	50A@125V/250VAC	0.19	●	●	○
STB0400A/B	400mA	250V/125V	50A@125V/250VAC	0.31	●	●	○
STB0500A/B	500mA	250V/125V	50A@125V/250VAC	0.46	●	●	○
STB0630A/B	630mA	250V/125V	50A@125V/250VAC	0.78	●	●	○
STB0750A/B	750mA	250V/125V	50A@125V/250VAC	0.93	●	●	○
STB0800A/B	800mA	250V/125V	50A@125V/250VAC	1.1	●	●	○
STB1100A/B	1A	250V/125V	50A@125V/250VAC	1.3	●	●	○
STB1125A/B	1.25A	250V/125V	50A@125V/250VAC	2.6	●	●	○
STB1150A/B	1.5A	250V/125V	50A@125V/250VAC	3.1	●	●	○
STB1160A/B	1.6A	250V/125V	50A@125V/250VAC	3.9	●	●	○
STB1200A/B	2A	250V/125V	50A@125V/250VAC	7.2	●	●	○
STB1250A/B	2.5A	250V/125V	50A@125V/250VAC	12	●	●	○
STB1300A/B	3A	250V/125V	50A@125V/250VAC	15	●	●	○
STB1315A/B	3.15A	250V/125V	50A@125V/250VAC	19	●	●	○
STB1350A/B	3.5A	250V/125V	50A@125V/250VAC	24	●	●	○
STB1400A/B	4A	250V/125V	50A@125V/250VAC	29	●	●	○
STB1500A/B	5A	250V/125V	50A@125V/250VAC	59	●	●	○
STB1630A/B	6.3A	250V/125V	50A@125V/250VAC	90	●	●	○

Fuse melting ref. standard

% of Ampere Rating(In)	Blowing Time
100% * In	4 hours Min
200% * In	60 sec Max

Main Features

• Improve inrush withstand
• Subminiature size
• Wide current range (0.1A - 10A)
• Low temperature rerating

• Supply from factory directly to make cost-down easily

• Strong technical support with RD with more than 10 years' fuse industry experience

Environmental Data

Shock resistance:	MIL-STD-202, Method 213B, Test Condition I (Sawtooth)
Vibration resistance:	MIL-STD-202, Method 201 (10-55Hz x 3 axis/ no load)
Moisture resistance:	MIL-STD-202F, Method 106
Soldering heat resistance:	MIL-STD-202, Method 210 Top side (260ºC, 20 sec)
Salt spray:	MIL-STD-202, Method 101, Test Condition B (48 Hours)
Solderability	MIL-STD-202, Method 208H
Operating Temperating:	-55ºC to 125ºC
