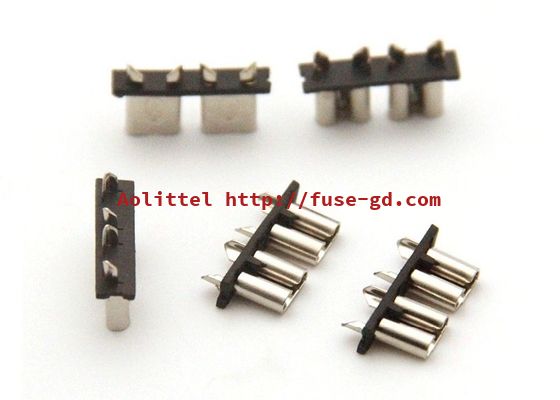

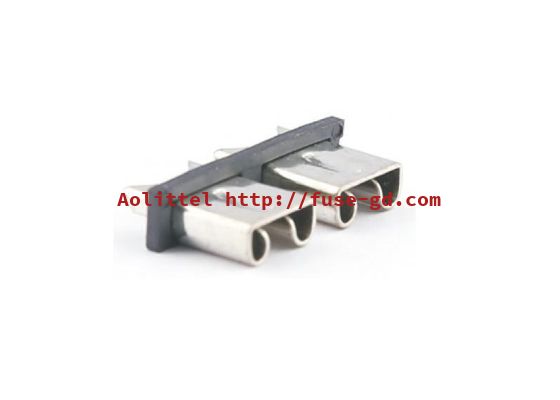

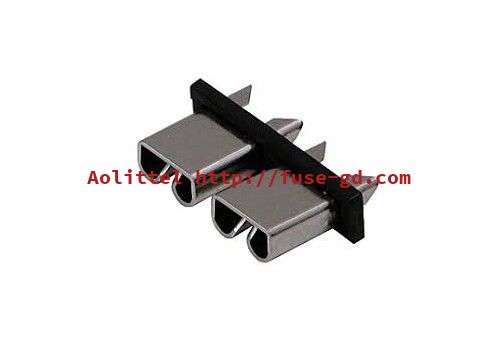

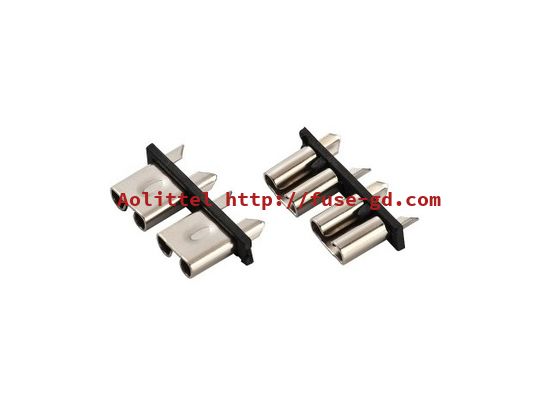

20A PCB Vertical Mount Car Fuse Holder Block Spring Brass Fuse Clip For 19mm Automotive Standard ATC ATO Auto Blade Fuse
Product Attributes :

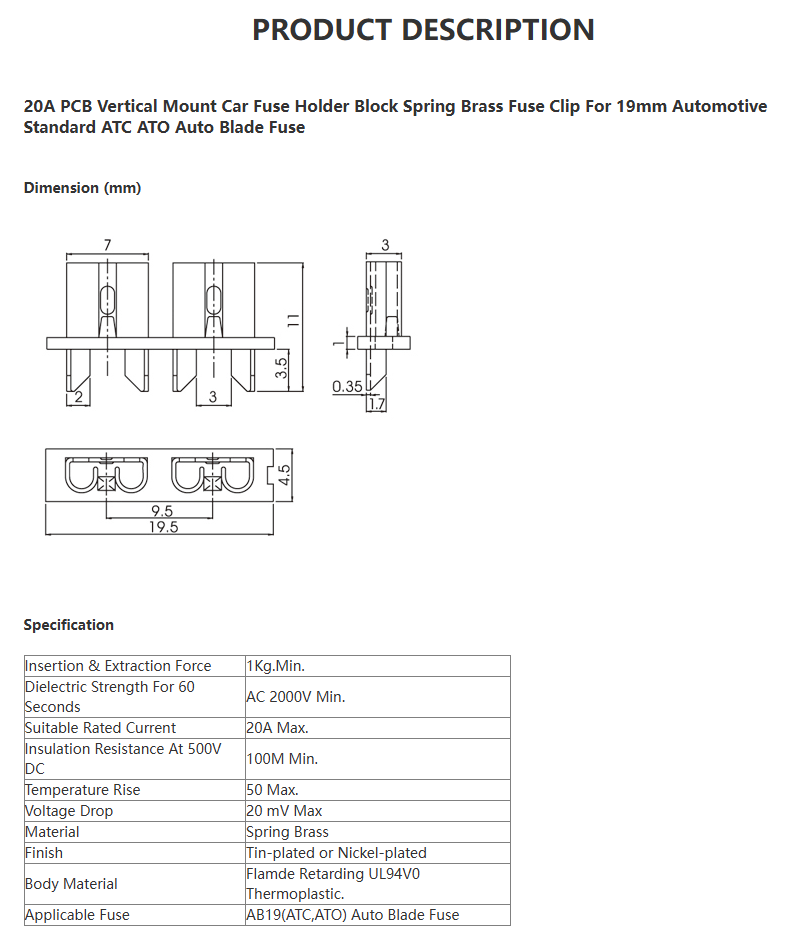

Specifications
Fuse Type: Auto Fuse Clip
Suitable Fuse Size: 19mm ATO ATC Auto Balde Fuse
Current Rating: 20A Max
Voltage Rating: 500V
Body Material: Flamde Retarding UL94V0 Thermoplastic.
Finish: Tin-plated Or Nickel-plated
Metal: Spring Brass
Insulation Resistance: 100MOhm Min At 500V DC
Insertion & Extraction Force: 1Kg.min
Dielectric Strength For 60 Seconds: AC 2000V Min.
Product Description
Main Features
Vertical mount PCB fuseholders for standard blade fuses. Available in single or double.
Designed to withstand vibration and shock
Orientation of legs ensures proper PCB installation
Through hole PCB mountable
Suitable for wave soldering
Holds fuse securely even after multiple insertions
Space saving low profile design
Double version has Max. Operating Temperature of 145°C
Rated from 6.3 A to 30 A
Available with or without stops
Maintains position during the soldering process
