Introduction

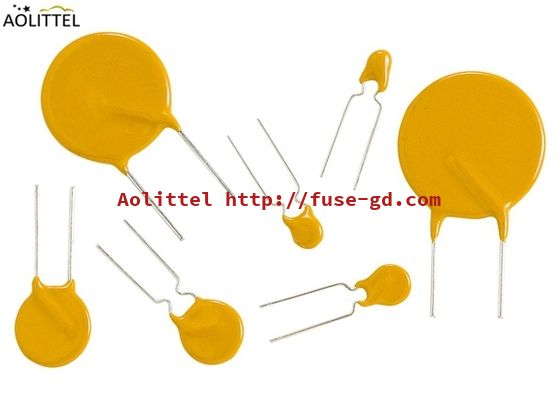

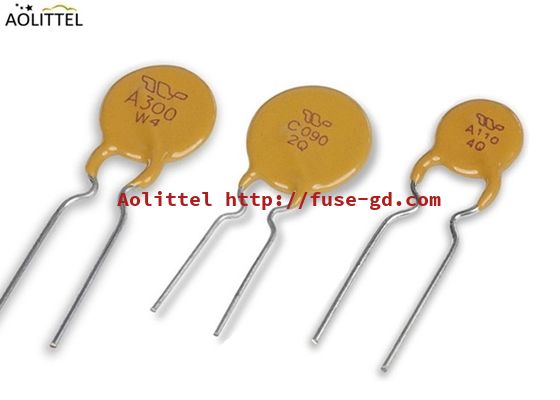

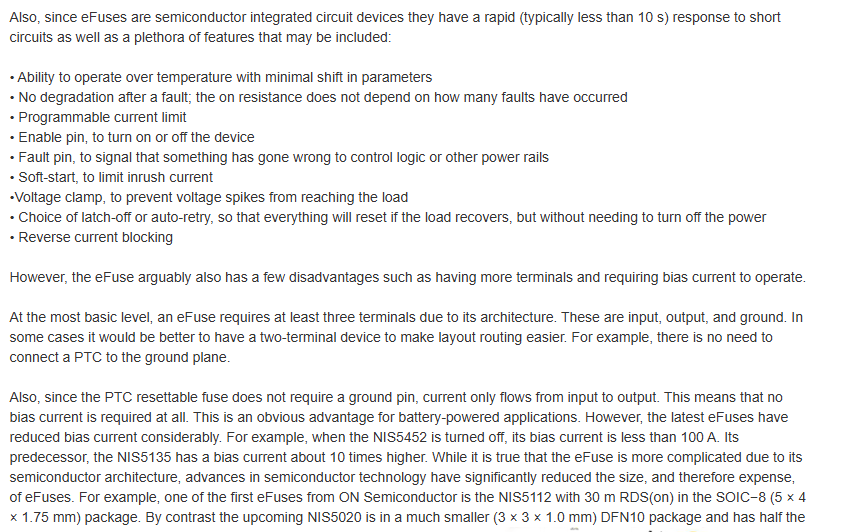

Overcurrent protection is a most basic necessity for electrical devices. However, many people are familiar with fuses and household circuit breakers, but few of them are intimately familiar with the kinds of overcurrent protection devices-Ao littel PTC Resettable Fuse that are found in electronics board. Though not a comprehensive list, there are basically three types of overcurrent protection devices in electronics. In order of increasing sophistication they are:
• One-shot fuses (One-time fuse, normally called SMD Fuse,Glass Fuse,Ceramic Fuse,Subminiature fuse)
• Positive Temperature Coefficient PTC resettable fuses
• Electronic fuses (eFuses)
______________________________________________________________________________
Download________
| PTC Resettable Fuse Family Member | ||
| No. | Voltage | Series |
| 1 | 16V | TRA |
| 2 | 30V | TRB |
| 3 | 60V/72V | TRC |
| 4 | 90V/120V | TRE |
| 5 | 240V/265V | TRM |
| 6 | 250V | TRF |
| 7 | 600V | TRG |
Advantage
• 0.02 – 2A hold current range, 60VDC operating voltage
• 250VAC interrupt rating
• Fast time–to-trip
• Binned and sorted narrow resistance ranges available
• RoHS compliant, LeadFree and Halogen-F
• Radial Leaded Devices
• Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
• Bulk Package, or tape and reel available on most models
• Agency recognition: UL,CUL,TUV,ROHS,CTI
• Used to help telecom networking equipment meet the protection requirements specified in ITU K.20 and K.21.
• Meet ISO/TS16949: 2009 / IATF16949 / AEC-Q200 Quality management systems
Applications
Almost anywhere there is a low voltage power supply, up to DC60V and a load to be protected, including:
- Security and fire alarm systems
- Analog and digital line cards
- Modems and DSL
Electrical Characteristics
| P/N | IH, (A) | IT,(A) | Vmax,(v) | Imax,(A) | Vmax,(v) | (A) | (Sec.) | Pd typ(W) | Rmin | Rmin | R1max |
| TRF002 | 0.020 | 0.045 | 60 | 3.0 | 250 | 1.0 | 0.1 | 1.0 | 65 | 145 | 240 |
| TRF004 | 0.040 | 0.080 | 60 | 3.0 | 250 | 0.50 | 1.0 | 1.0 | 24.0 | 65.0 | 97.5 |
| TRF006 | 0.060 | 0.120 | 60 | 3.0 | 250 | 0.50 | 2.0 | 1.0 | 22.0 | 36.0 | 56.0 |
| TRF008 | 0.080 | 0.160 | 60 | 3.0 | 250 | 0.35 | 4.0 | 1.0 | 14.0 | 22.0 | 33.0 |
| TRF009 | 0.09 | 0.22 | 60 | 3.0 | 250 | 1.0 | 1.0 | 1.0 | 9.7 | 20.6 | 33.0 |
| TRF011 | 0.110 | 0.220 | 60 | 3.0 | 250 | 1.0 | 2.0 | 1.0 | 6.0 | 12.0 | 18.0 |
| TRF012 | 0.12 | 0.24 | 60 | 3.0 | 250 | 1.00 | 3.0 | 1.0 | 6.0 | 10.0 | 16.0 |
| TRF012U | 0.12 | 0.24 | 60 | 3.0 | 250 | 1.00 | 1.5 | 1.0 | 6.0 | 10.0 | 16.0 |
| TRF014 | 0.145 | 0.29 | 60 | 3.0 | 250 | 1.00 | 2.5 | 1.0 | 3.0 | 6.0 | 14.0 |
| TRF014U | 0.145 | 0.29 | 60 | 3.0 | 250 | 1.0 | 2.5 | 1.0 | 3.5 | 6.5 | 12.0 |
| TRF018 | 0.18 | 0.54 | 60 | 3.0 | 250 | 3.0 | 1.5 | 1.8 | 1.0 | 2.2 | 4.0 |
| TRF018U | 0.18 | 0.54 | 60 | 3.0 | 250 | 3.0 | 1.5 | 1.8 | 1.0 | 2.2 | 4.0 |
| TRF020 | 0.2 | 0.6 | 60 | 3.0 | 250 | 3.0 | 5.0 | 1.8 | 1.7 | 3.5 | 6.30 |
| TRF030 | 0.30 | 0.60 | 60 | 3.0 | 250 | 3.0 | 6.0 | 1.8 | 1.0 | 2.2 | 3.50 |
| TRF040 | 0.400 | 0.800 | 60 | 5.5 | 250 | 3.0 | 8 | 1.8 | 0.80 | 1.60 | 3.20 |
| TRF050 | 0.50 | 1.00 | 60 | 6.0 | 250 | 3.0 | 10 | 3.0 | 0.56 | 1.40 | 2.52 |
| TRF060 | 0.60 | 1.20 | 60 | 7.0 | 250 | 3.0 | 12 | 3.2 | 0.40 | 1.10 | 2.16 |
| TRF080 | 0.80 | 1.60 | 60 | 8.0 | 250 | 4.0 | 18 | 3.6 | 0.32 | 0.80 | 1.44 |
| TRF100 | 1.00 | 2.00 | 60 | 10.0 | 250 | 5.0 | 21 | 2.9 | 0.22 | 0.50 | 0.90 |
| TRF200 | 2.00 | 4.00 | 60 | 10.0 | 250 | 10.0 | 28 | 4.5 | 0.09 | 0.16 | 0.26 |
“U” suffix indicates product without insulation coating.

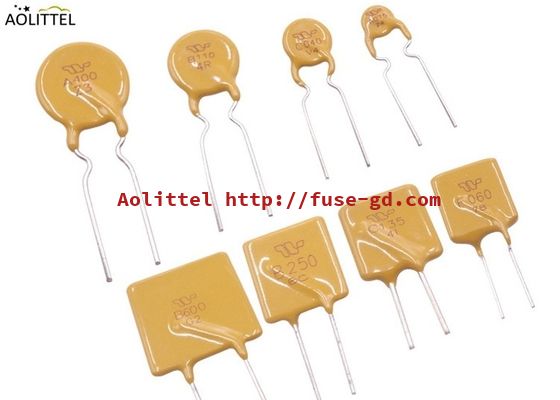

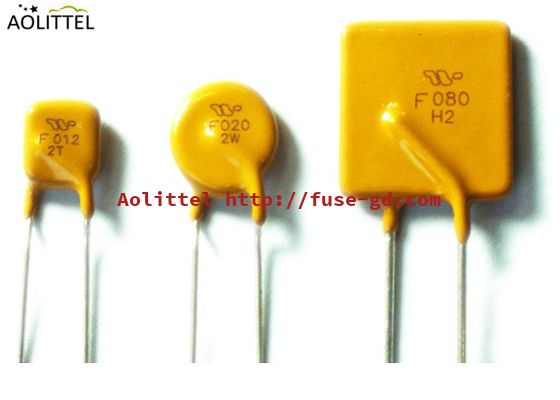

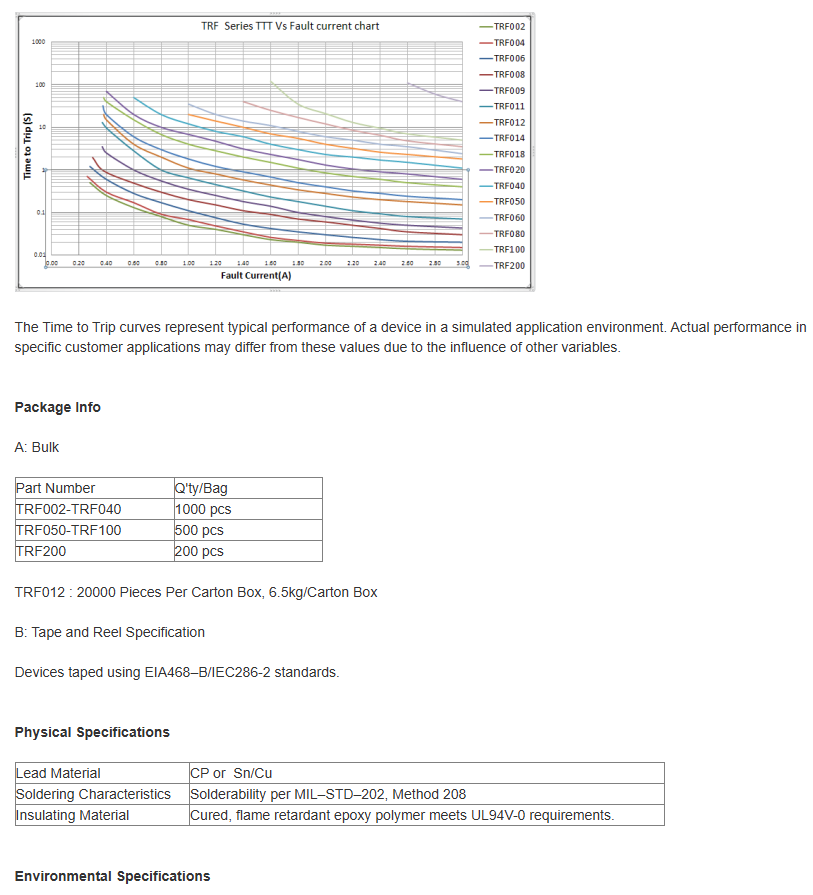

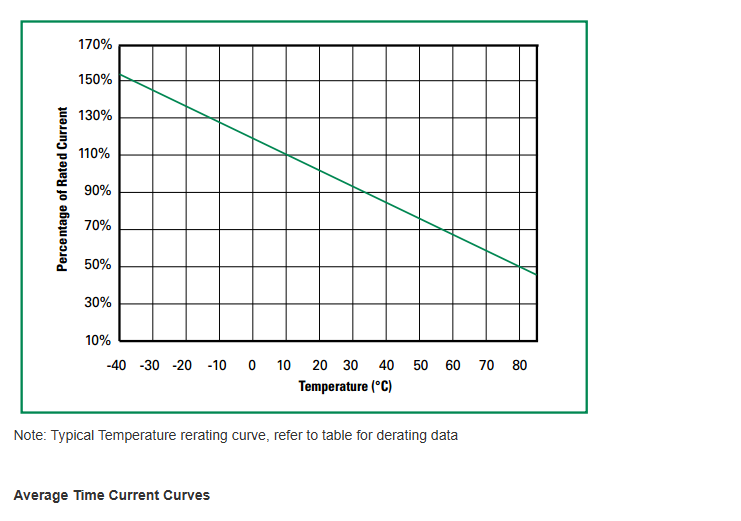

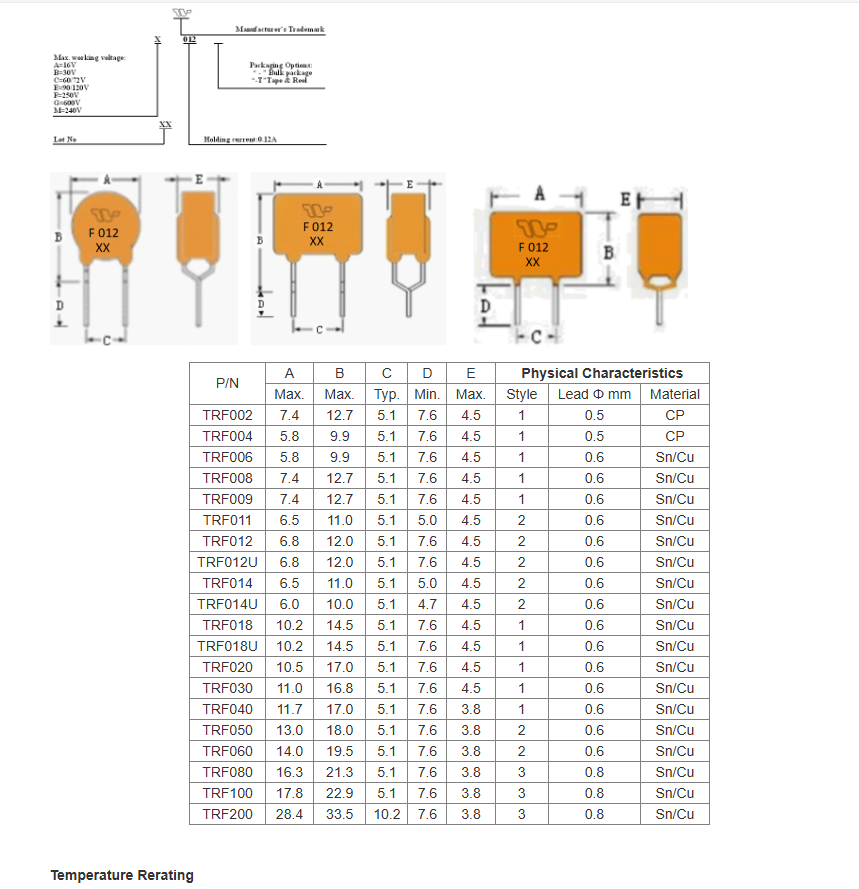

Product Dimensions & Marking (Unit: mm)
