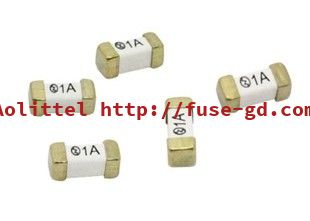

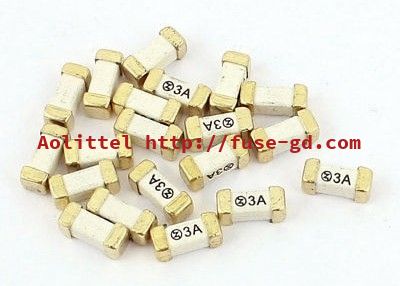

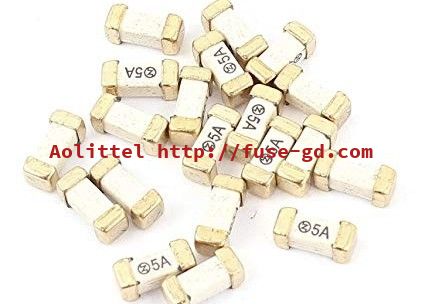

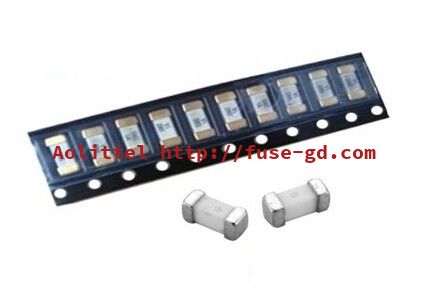

Silver Plated SET Type Slow Blow Square Ceramic SMD Surface Mount Fuse 3A 125V 2.6mmx6.1mm PSE CSA UL

Silver Plated SET Type Slow Blow Square Ceramic SMD Surface Mount Fuse 3A 125V 2.6mmx6.1mm PSE CSA UL

Product Tags :

Product Attributes :

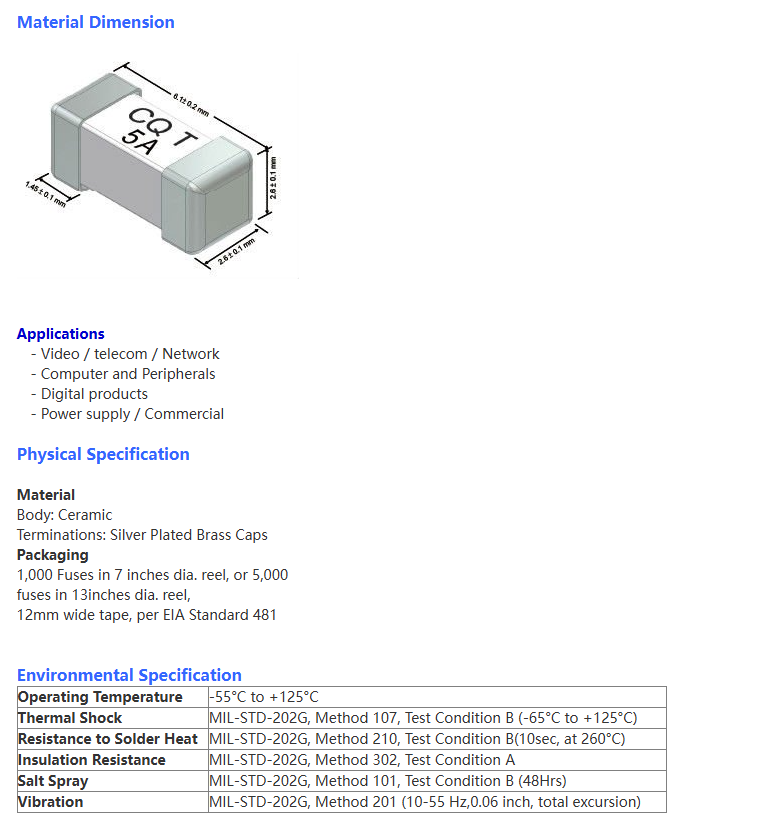

Specifications

Type: Surface Mount Fuse

Body: Ceramic

Terminal: Silver Plated Brass Caps

PSE: 1A~7A

UL: 200mA~7A

CSA: 200mA~7A

Size: 6125/2410

Speed: Slow Blow

Current: 3 Amp

Voltage: 125V

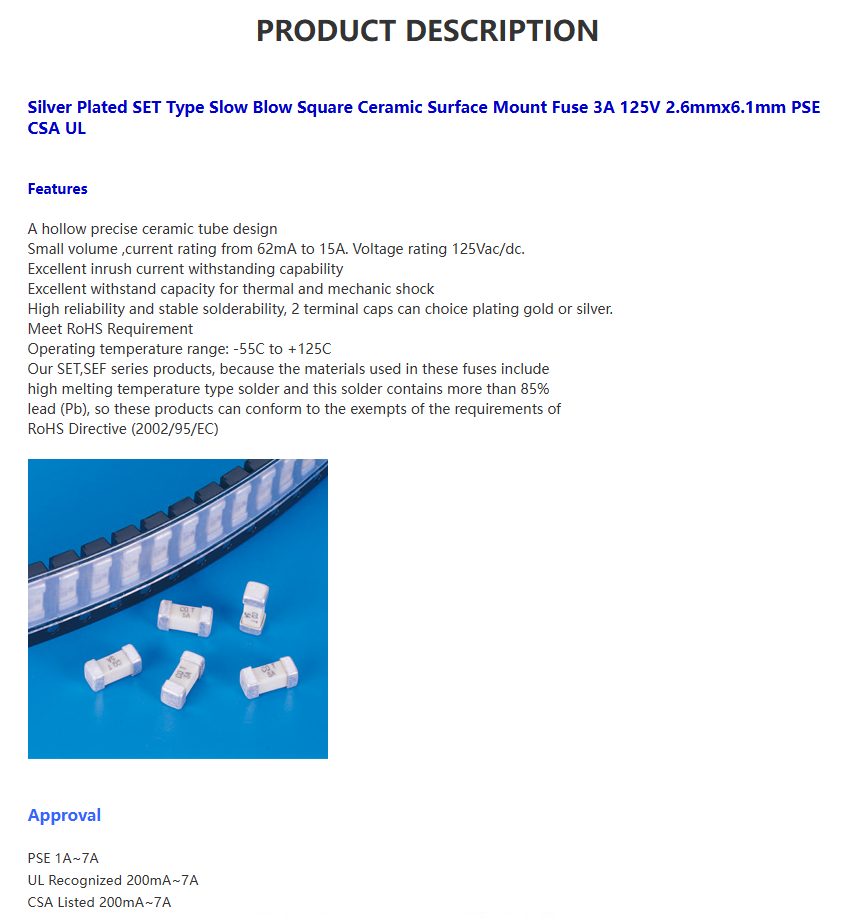

Product Description

Specification

Product Type	Amp (A)	Vol. (V)	cold resistance	max voltage drop	I²T value	Breaking capacity	Weight(single product)
SET .200	200 mA	125V	1.5751	750	0.06	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .250	250 mA	125V	1.2585	700	0.068	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .300	300 mA	125V	1.2512	600	0.09	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .350	350 mA	125V	0.9366	550	0.1	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .375	375 mA	125V	0.5232	500	0.2109	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .400	400 mA	125V	0.515	450	0.24	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .450	450 mA	125V	0.5009	450	0.3037	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .500	500 mA	125V	0.3291	400	0.375	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .700	700 mA	125V	0.2648	360	0.49	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .750	750 mA	125V	0.16	320	0.626	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 001	1 A	125V	0.109	250	1.909	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 002	2 A	125V	0.055	210	8.56	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 003	3 A	125V	0.0228	190	22.54	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 004	4 A	125V	0.014	160	35.82	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 005	5 A	125V	0.013	150	54.8	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 006	6 A	125V	0.009	140	64.8	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 007	7 A	125V	0.0074	130	89.83	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 1.50	1.5 A	125V	0.0511	230	3.835	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 2.50	2.5 A	125V	0.0287	200	16.55	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 003	3 A	125V	0.0228	190	22.540	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 3.15	3.15 A	125V	0.0224	185	23.000	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 3.50	3.5 A	125V	0.019	180	29.4	50A at 125V AC/DC 300A at 32V DC	0.12658
