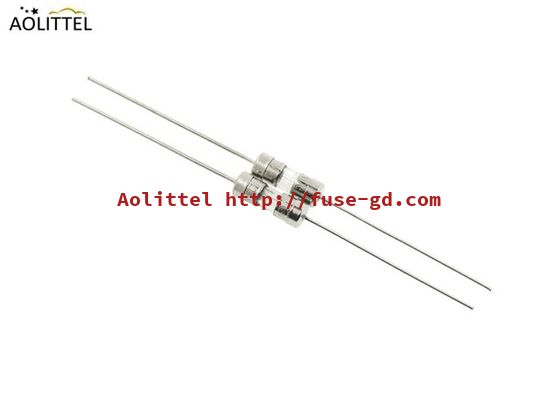

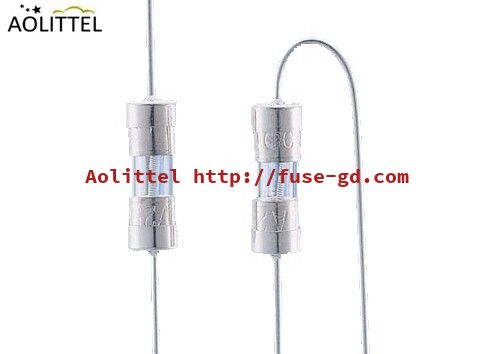

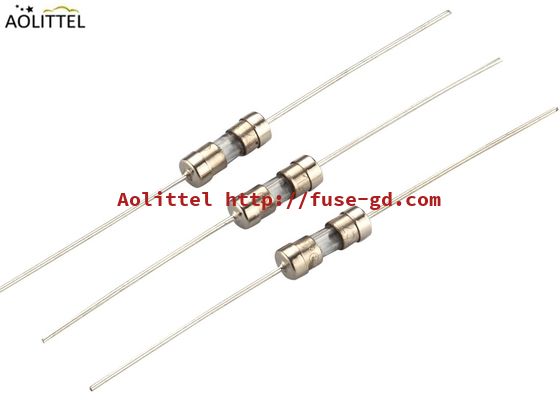

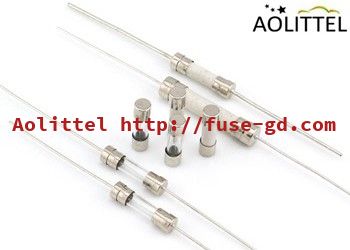

3.6x10mm Axial Leaded Time Delay Cartridge Type Miniature Glass Tube Fuse 100mA-24A 250V With UL CUL

3.6x10mm Axial Leaded Time Delay Glass Tube Fuse 100mA-24A 250V With UL CUL

Principle of Operation

A glass tube fuse works by breaking the circuit when rated current passes through it. When the current passing through the fuse exceeds the rated current, the thin ally wire melts and breaks the circuit.
The glass tube fuses commonly manufactured in different types:

Fast Blow

Slow blow

Glass tube fuse does not contain any gas AFAIK. The glass tube protects the outside environment when the metal inside melts as high temperature can build up. Glass being transparent, helps to visually inspect the fuse to make sure if it is blown. Protection would be better if match with fuse holder to provide second protection bewteen fuse and board.

______________________________________________________________________________ Download________

Performance Characteristics

1) Time delay one-time glass tube fuse

2) 0.1'' x 0.4''(3.6*10mm) physical size

3) Glass tube tube, nickel-plated brass endcap construction

4) For instruments, electronic and small appliance circuits

5) UL Listed product meets standard 248-1/14

Application

Glass tube fuse,widely used in the fields of Communications and Telecom, Computers Peripherals, Consumer Electronics, Energy and Lighting, Industrial, Security, Transportation Automotive, Video Imaging, Wireless, Space, Avionics and Defense.This space saving fuse is ideally suited for lighting, power supply, and adapter applications

Specification    (A = 250V/ B =125V,● Approved / ○ Pending)

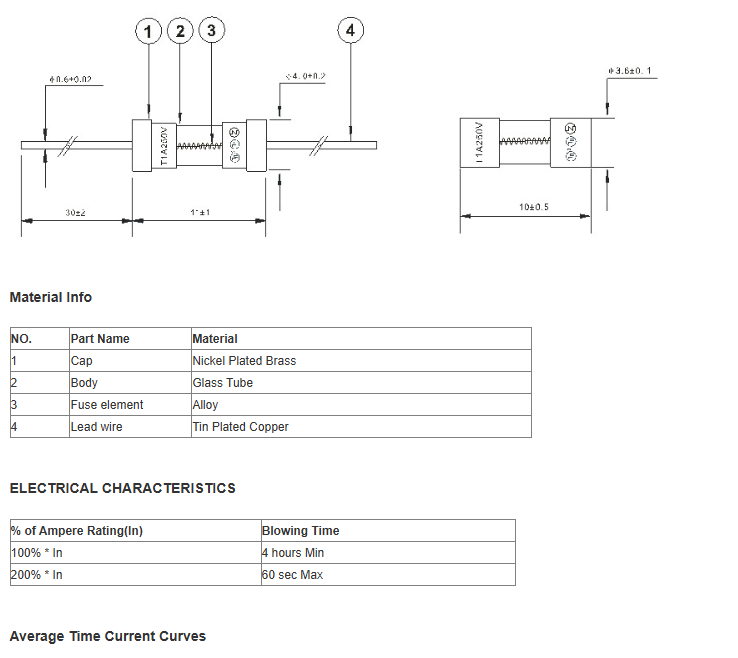

Dimension (Unit: mm)
