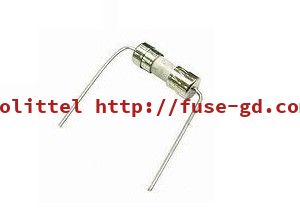

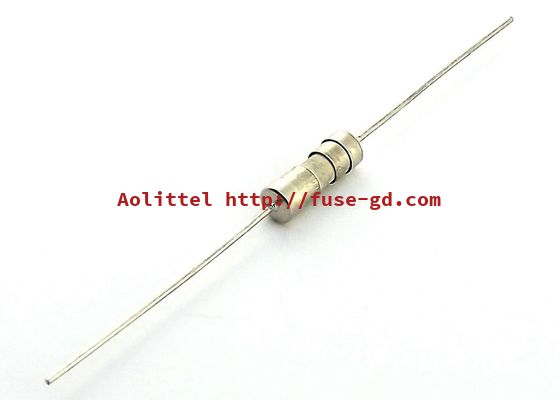

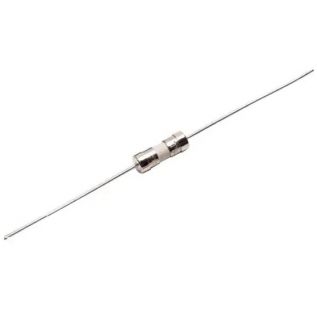

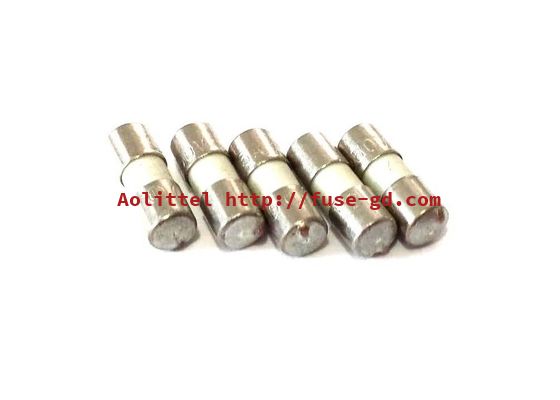

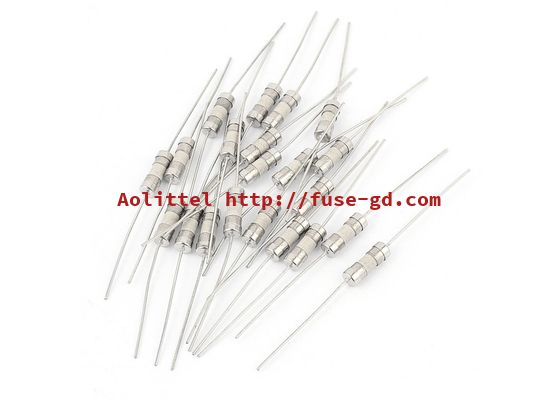

Quick Response Axial Leaded Non-Resettable One Time Ceramic Tube Fuse 2.5A 250VAC With 3.6x10mm Fast Blow Single Cap
Quick Response Axial Leaded Non-Resettable One Time Ceramic Tube Fuse 2.5A 250VAC With 3.6x10mm Fast Blow Single Cap
Description
Aolittel HFP fast-acting 3.6 x 10mm axial-leaded fuse constructed with ceramic tube and one-piece nickel-plated endcaps featuring tinned copper axial leads. Small 3.6 x 10mm size offers more design flexibility by doing away with conventional over-capping while providing higher I2t values.
___________________________________________________________
Download________
Operating Characteristics
|
% of Ampere Rating(In) |
Blowing Time |
| 100% * In | 4 hours Mi |
| 200% * In | 60 sec Max |
Certifications
|
Voltage Rating |
Agency |
Ampere Range |
Agency File Number |
| 125V/250V | UL | 250mA ~ 5A | E340427(JDYX) |
| C-UL | 250mA ~ 5A | E340427( JDYX7) |
Specification
|
Part No. |
Ampere Rating |
Voltage Rating |
Breaking Capacity |
I2TMelting Integral(A2.S) |
Agency Approvals |
||
| UL | cUL |
PSE |
|||||
| HFP 0100A/B | 100mA | 250V/125V | 50A@125V/250VAC | 0.0015 | ○ | ○ | ○ |
| HFP 0125A/B | 125mA | 250V/125V | 50A@125V/250VAC | 0.0025 | ○ | ○ | ○ |
| HFP 0160A/B | 160mA | 250V/125V | 50A@125V/250VAC | 0.0042 | ○ | ○ | ○ |
| HFP 0200A/B | 200mA | 250V/125V | 50A@125V/250VAC | 0.0065 | ○ | ○ | ○ |
| HFP 0250A/B | 250mA | 250V/125V | 50A@125V/250VAC | 0.010 | ● | ● | ○ |
| HFP 0300A/B | 300mA | 250V/125V | 50A@125V/250VAC | 0.018 | ● | ● | ○ |
| HFP 0315A/B | 315mA | 250V/125V | 50A@125V/250VAC | 0.020 | ● | ● | ○ |
| HFP 0350A/B | 350mA | 250V/125V | 50A@125V/250VAC | 0.025 | ● | ● | ○ |
| HFP 0400A/B | 400mA | 250V/125V | 50A@125V/250VAC | 0.035 | ● | ● | ○ |
| HFP 0500A/B | 500mA | 250V/125V | 50A@125V/250VAC | 0.060 | ● | ● | ○ |
| HFP 0630A/B | 630mA | 250V/125V | 50A@125V/250VAC | 0.150 | ● | ● | ○ |
| HFP 0750A/B | 750mA | 250V/125V | 50A@125V/250VAC | 0.350 | ● | ● | ○ |
| HFP 0800A/B | 800mA | 250V/125V | 50A@125V/250VAC | 0.5 | ● | ● | ○ |
| HFP 1100A/B | 1A | 250V/125V | 50A@125V/250VAC | 0.6 | ● | ● | ○ |
| HFP 1125A/B | 1.25A | 250V/125V | 50A@125V/250VAC | 1.2 | ● | ● | ○ |
| HFP 1150A/B | 1.5A | 250V/125V | 50A@125V/250VAC | 1.6 | ● | ● | ○ |
| HFP 1160A/B | 1.6A | 250V/125V | 50A@125V/250VAC | 1.8 | ● | ● | ○ |
| HFP 1200A/B | 2A | 250V/125V | 50A@125V/250VAC | 2.4 | ● | ● | ○ |
| HFP 1250A/B | 2.5A | 250V/125V | 50A@125V/250VAC | 3.2 | ● | ● | ○ |
| HFP 1300A/B | 3A | 250V/125V | 50A@125V/250VAC | 6.0 | ● | ● | ○ |
| HFP 1315A/B | 3.15A | 250V/125V | 50A@125V/250VAC | 7.0 | ● | ● | ○ |
| HFP 1350A/B | 3.5A | 250V/125V | 50A@125V/250VAC | 7.5 | ● | ● | ○ |
| HFP 1400A/B | 4A | 250V/125V | 50A@125V/250VAC | 8.0 | ● | ● | ○ |
| HFP 1500A/B | 5A | 250V/125V | 50A@125V/250VAC | 15 | ● | ● | ○ |
| HFP 1600A/B | 6A | 250V/125V | 50A@125V/250VAC | 24 | ● | ● | ○ |
| HFP 1630A/B | 6.3A | 250V/125V | 50A@125V/250VAC | 28 | ● | ● | ○ |
| HFP 1700A/B | 7A | 250V/125V | 50A@125V/250VAC | 36 | ● | ● | ○ |
| HFP 1800A/B | 8A | 250V/125V | 50A@125V/250VAC | 38 | ● | ● | ○ |
| HFP 2100A/B | 10A | 250V/125V | 50A@125V/250VAC | 42 | ● | ● | ○ |
| HFP 2150A/B | 15A | 250V/125V | 50A@125V/250VAC | 45 | ○ | ○ | ○ |

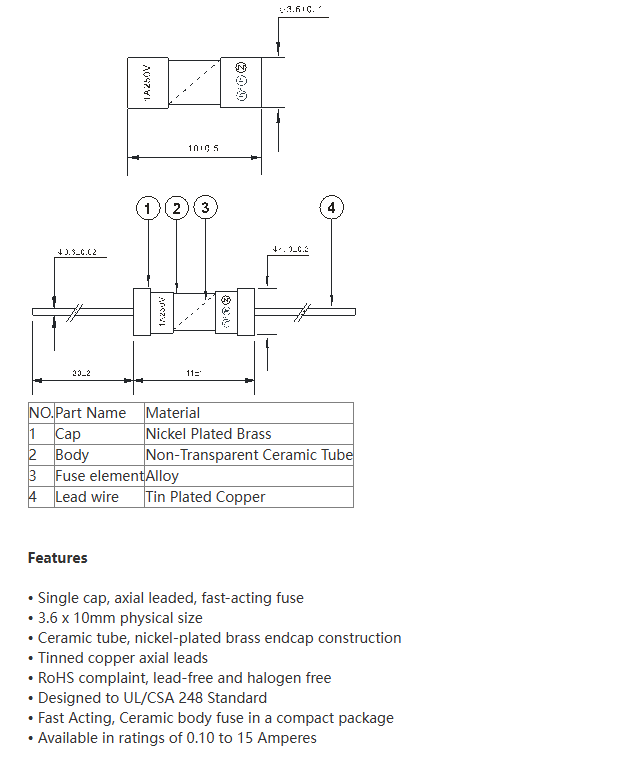

Dimension (mm)

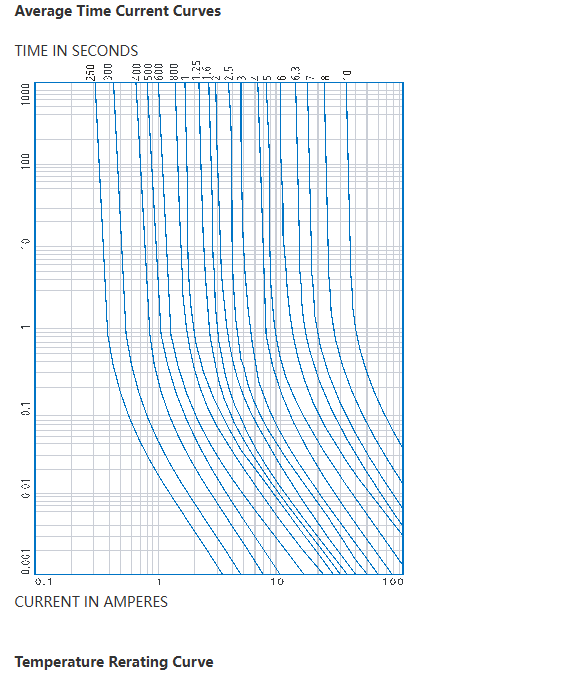

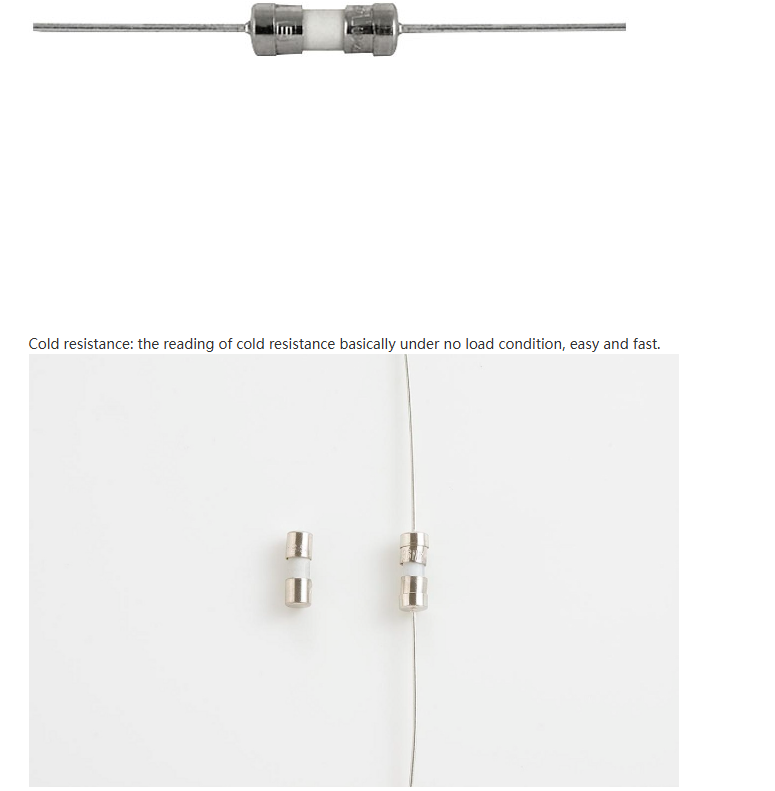

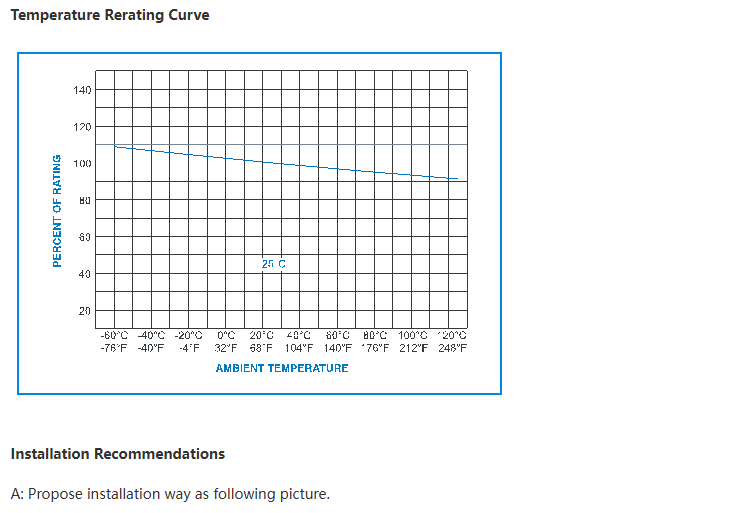

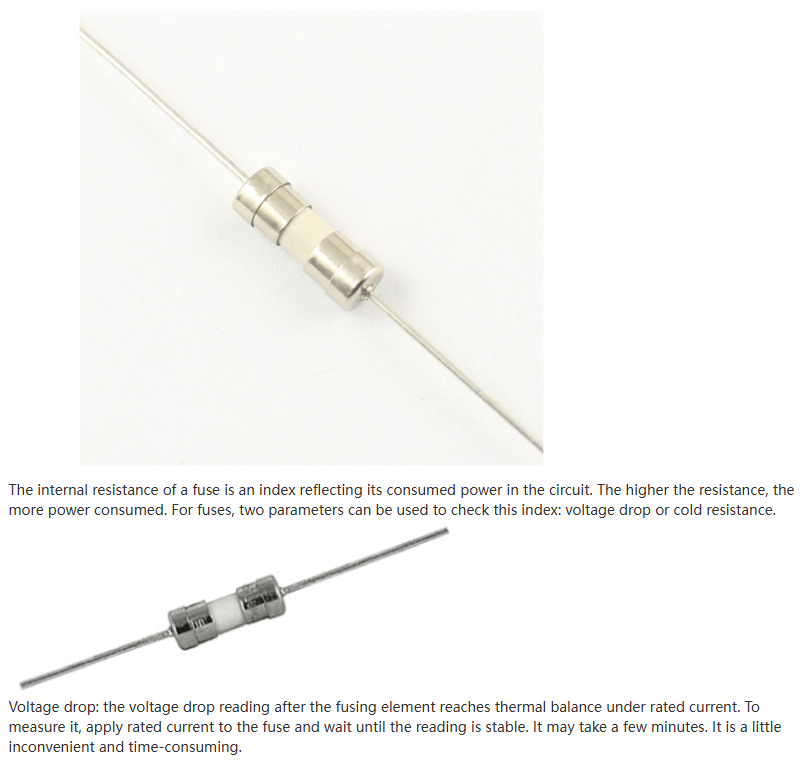

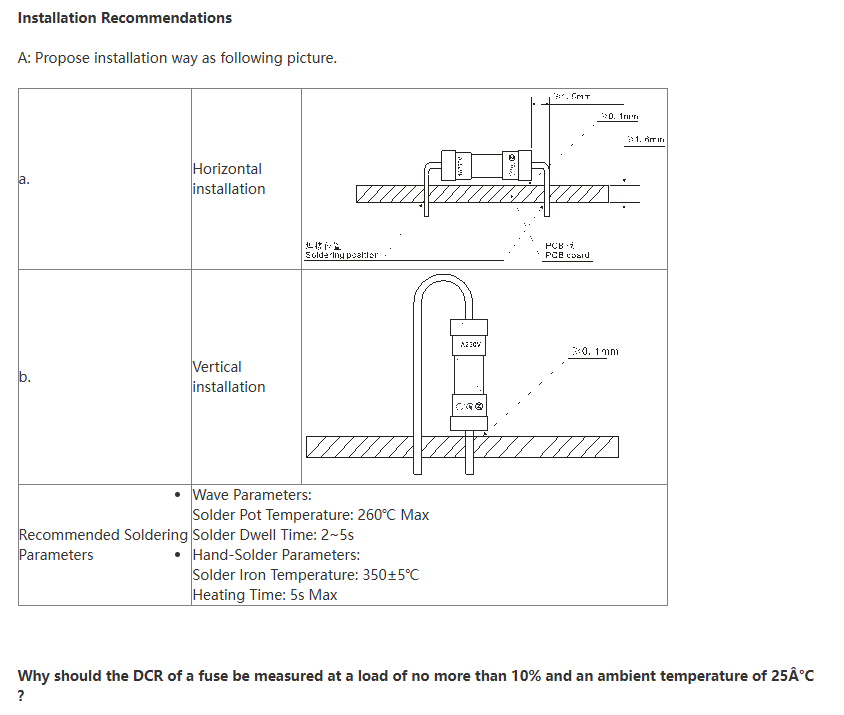

Therefore, the cold resistance method is always preferred for fuse check. The load of less than or equal to 10% means basically no load or heating condition, so there will be no thermal balance process, while the ambient temperature itself has a certain effect on fuse performance. All performance indexes of a fuse are parameters in ordinary atmospheric condition, i.e. 25°C. The cold resistance of a fuse, if not measured under the above-mentioned conditions, may not be accurate.
