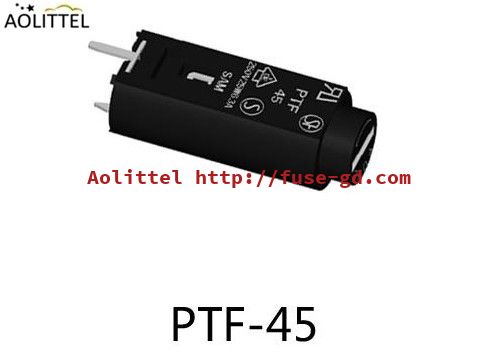

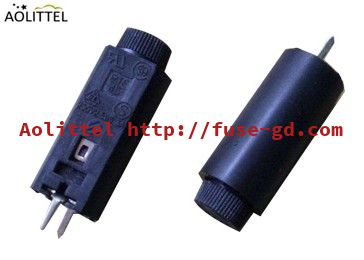

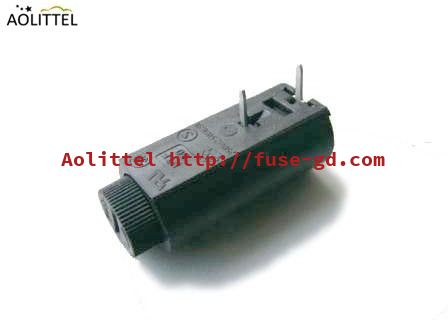

Shocksafe Cylindrical Vertical 5x20mm PCB Fuse Holder PTF-45 10 Amps 250 Volt With Screw Cap 10 mm Pin Spacing
Product Attributes :
Specifications
Item: 5x20mm PCB Fuse Holder PTF-45
Color: Black
Current Rating: 10A
Mount: THT,Tubular Vertical
Operating Temperature Range: -30° - +85°C
Pin Spacing/Terminal Pitch: 10 Mm (0.394")
Rated Voltage: 250 VAC
Rated Power Acceptance: 2.5W
Fuse Application: Tube Fuses
Fuse Size: 5x20mm
Body Material: Thermoplastic
Flammability Rating: UL94V-0
Contact Resistance: <5mΩ
Leads Length: 6mm
Mounting Hole Diameter: 0.5mm

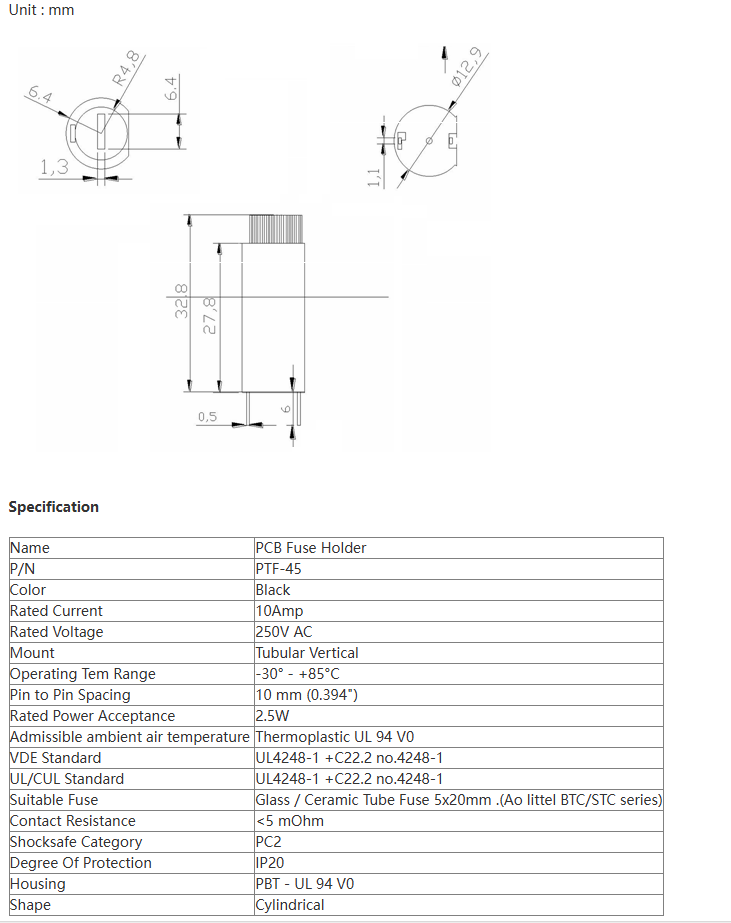

Body Dimensions: 12.9*32.8mm
Gross Weight: 6.5g
Shocksafe Category: PC2
Degree Of Protection: IP20
Standard: VDE EN 60127-6 & UL4248-1 +C22.2 No.4248-1
Product Description
Product Description
Shocksafe Cylindrical Vertical 5x20mm PCB Fuse Holder PTF-45 10 Amps 250 Volt With Screw Cap 10 mm Pin Spacing
Description

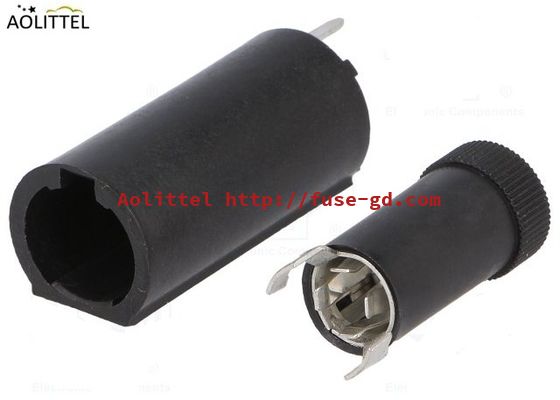

Ao littel PCB Fuse Holder PTF-45 with screw cap was designed for 5x20mm both glass fuse and ceramic tube fuse. Shape in Cylindrical ,Mounting method is vertical mount on a printed circuit board, 32.8mm high,10mm Pin to Pin Spacing,10Amp, 250 Volt .
