High Voltage Time Delay Ceramic Cartridge Fuses 5x20mm 500V 500mA With Explosion Proof Sand
ceramic thermal fuse
,ceramic automotive fuses
High Voltage Time Delay Ceramic Cartridge Fuses 5x20mm 500V 500mA With Explosion-proof Sand
Description

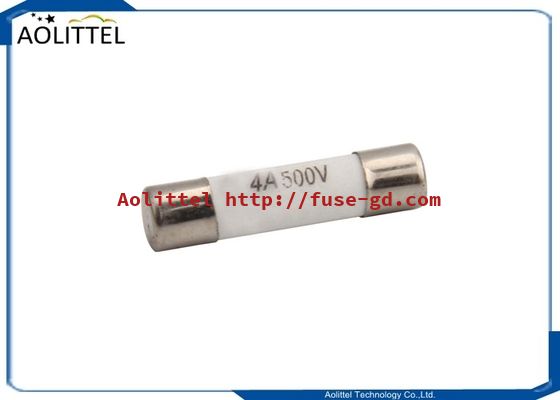

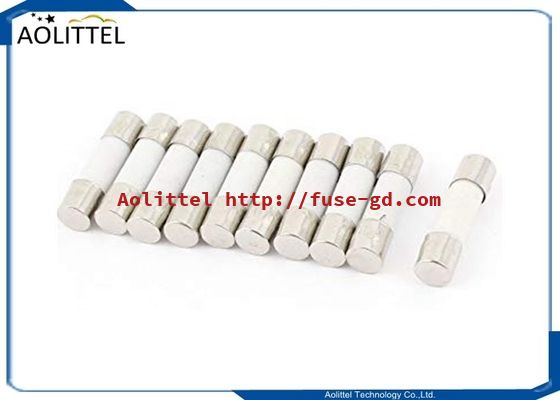

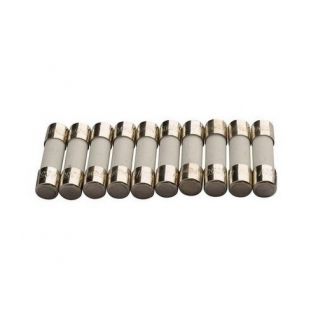

A 500V rated ceramic tube cartridge fuse in a compact 5 x 20mm Package.
Features
- Time-delay, high breaking capacity
- Ceramic tube, Silver plated copper cap construction

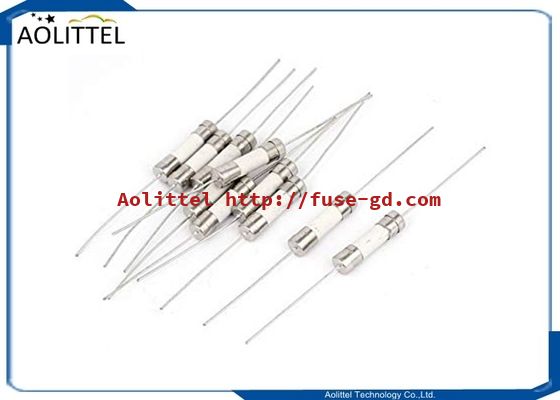

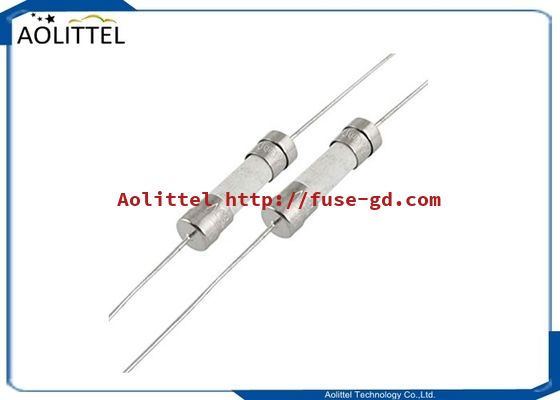

- Available in cartridge and pigtail axial lead
- RoHS 2 compliant
- Halogen Free
- Lead Free
Specification
| Catalog | Ampere | Voltage | Breaking | I2TMelting |
| No. | Rating | Rating | Capacity | Integral(A2.S) |
| 5.5000100A/B | 100mA | 500V | 10000A@125 V AC (200mA~10A); 35A@250V AC (200mA~1A); 100A@250V AC (1.25A~3.5A); 200A@250V AC (4A~10A); 100A@500V AC (4A~10A). | 0.002 |
| 5.5000125A/B | 125mA | 500V | 0.003 | |
| 5.5000160A/B | 160mA | 500V | 0.005 | |
| 5.5000200A/B | 200mA | 500V | 0.01 | |
| 5.5000250A/B | 250mA | 500V | 0.02 | |
| 5.5000300A/B | 300mA | 500V | 0.04 | |
| 5.5000315A/B | 315mA | 500V | 0.045 | |
| 5.5000350A/B | 350mA | 500V | 0.055 | |
| 5.5000400A/B | 400mA | 500V | 0.07 | |
| 5.5000500A/B | 500mA | 500V | 0.1 | |
| 5.5000630A/B | 630mA | 500V | 0.2 | |
| 5.5000750A/B | 750mA | 500V | 0.35 | |
| 5.5000800A/B | 800mA | 500V | 0.45 | |
| 5.5001100A/B | 1A | 500V | 0.9 | |
| 5.5001125A/B | 1.25A | 500V | 1.3 | |
| 5.5001150A/B | 1.5A | 500V | 1.6 | |
| 5.5001160A/B | 1.6A | 500V | 2.5 | |
| 5.5001200A/B | 2A | 500V | 5.8 | |
| 5.5001250A/B | 2.5A | 500V | 7.6 | |
| 5.5001300A/B | 3A | 500V | 8.1 | |
| 5.5001315A/B | 3.15A | 500V | 11 | |
| 5.5001350A/B | 3.5A | 500V | 19 | |
| 5.5001400A/B | 4A | 500V | 28 | |
| 5.5001500A/B | 5A | 500V | 40 | |
| 5.5001600A/B | 6A | 500V | 50 | |
| 5.5001630A/B | 6.3A | 500V | 64 | |
| 5.5001700A/B | 7A | 500V | 107 | |
| 5.5001800A/B | 8A | 500V | 133 | |
| 5.5002100A/B | 10A | 500V | 242 | |
| 5.5002150A/B | 15A | 500V | 368 | |
| 5.5002160A/B | 16A | 500V | 388 | |
| 5.5002200A/B | 20A | 500V | 442 | |
| 5.5002250A/B | 25A | 500V | 568 |
| % of Ampere Rating(In) | Blowing Time |
| 100%* In | 4 hours Min |
| 135%* In | 1 hour Max |
| 200%* In | 5 sec Max |
| Voltage Rating | Agency | Ampere Range | Agency File Number |
| 125V/250V | UL | 200mA ~ 10A | E340427(JDYX) |
| C-UL | 200mA ~ 10A | E340427( JDYX7) |
Applications
- Industrial Power Supplies
- DC/DC modules
Environmental Specifications
Operating Temperature -40℃ to +125℃
Terminal Strength MIL-STD-202G, Method 211 Test Condition A
Lead Solderability MIL-STD-202, Method 208 Mechanical
Vibration MIL-STD-202, Method 201
Thermal Shock MIL-STD-202, Method 107 Test Condition B ( 5 cycles -65℃ to +125℃ )
Humidity MIL-STD-202, Method 103, Test Condition A ( 95%RH and 40℃ for 240 hours )
