0.25W 0.5W 0.6W 1W 2W 3W Fast Flameproof Fusible Metal Film Resistor 0.1OHM-1KOHM
Product Attributes :
Specifications
Name: Fusible Metal Film Resistor
Normal Size: 1/4W,1/2W,1W,2W,3W
Small Size: 1/2WS,1WS,2WS,3WS,5WS
Nominal Resistance: E-24 Series
Resistance Tolerance: ±5%,±1%
Resistance Range: 0.1Ω~1KΩ
Color: Gray Or Pink
Temp Coeff.: ±200PPM/℃
Highlight:
flame detector sensor
,surface mount thermal fuse
Product Description
Product Description
Power Rated 0.25W 0.5W 0.6W 1W 2W 3W Fast Flameproof Fusible Metal Film Resistor 0.1OHM-1KOHM Tape Or Bulk
Scope
This specification is available for Fusible Metal Film Resistor manufactured by AOLITTEL TECHNOLOGY CO.,LTD,it accords with RoHS test of Environment related substance requirement.

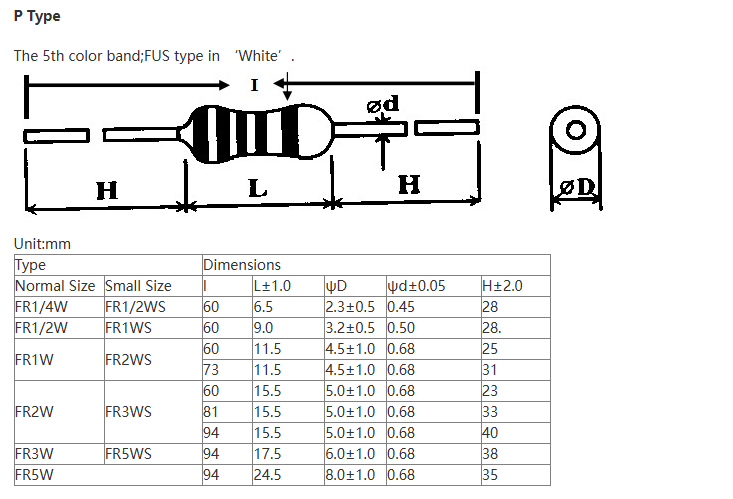

External dimensions
