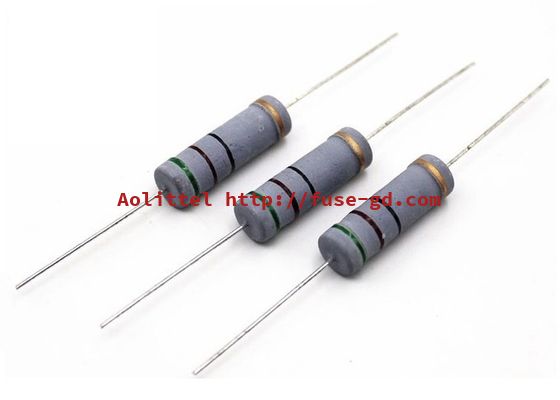

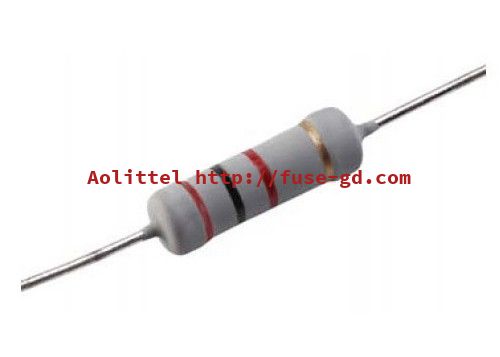

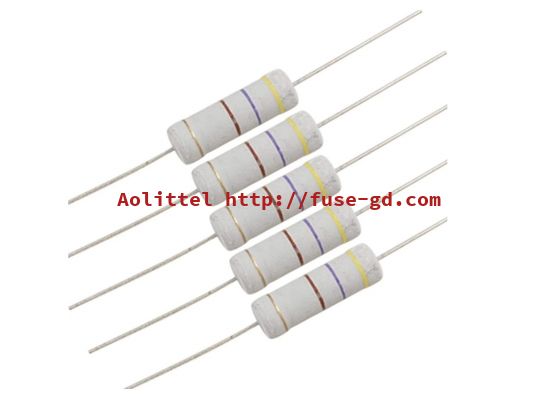

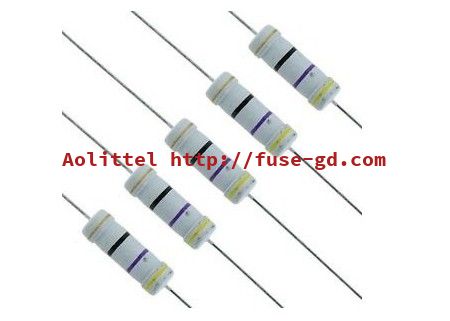

Miniaturized MOF Nonflammable Metal Oxide Film Resistor 470R 5W 700V 470 Ohm 2485 Gray
Product Attributes :
Specifications
Type: Metal Oxide Film Resistor
Power Rating: 5W
Resistance: 470 Ohm
Color: Gray
Size: 24.5x8mm
Resistance Range: 0.1Ω~100KΩ
T.C.R (ppm/Cel): ±350PPM/℃
Resistor Element: Metal Oxide Film
UNSPSC Code: 32121609
UPC: 641871131976 , 610256489230
Product Description
Product Description
Miniaturized MOF Nonflammable Metal Oxide Film Resistor 470R 5W 700V 470 Ohm 2485 Gray Automatic Insertion
Features
● Miniaturized 50 % smaller compared to existing models
● Non-fl ammable
● High Reliability
● Automatic Insertion
● Reference Standards IEC 60115-2, IEC 60115-4, JIS C 5201-4, EIAJ RC-2138
● RoHS compliant
Scope
This specification is available for Metal Oxide Film Resistors manufactured by Aolittel Technology Co., Ltd.,it accords with RoHS test of Environment related substance requirement.
