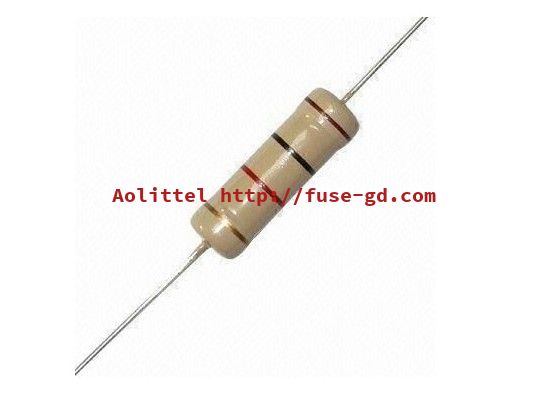

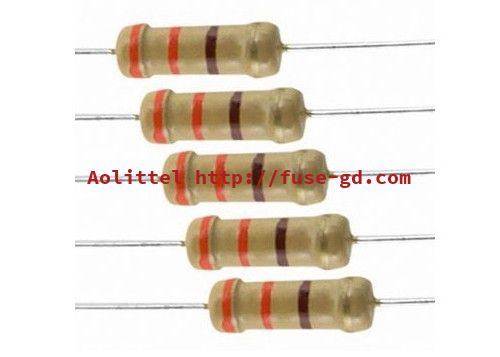

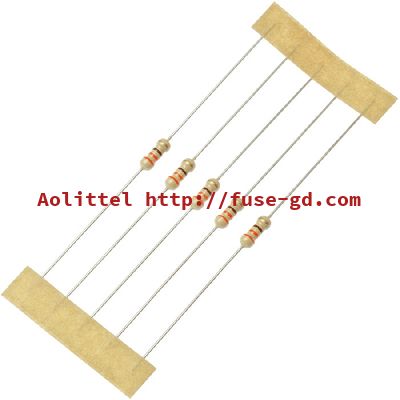

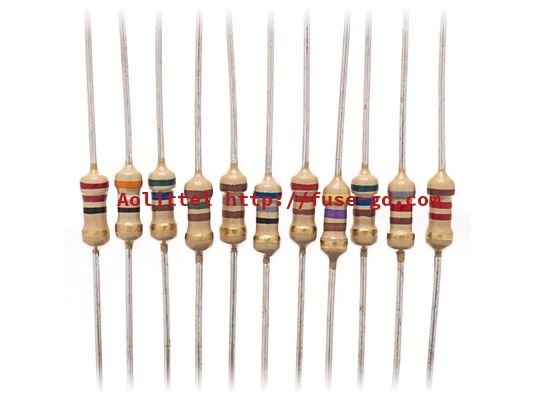

Miniature CFR Carbon Film Fixed Resistor 0.5W 1WS 330R 5% 350V Axial Leaded Khaki 9032 3.2x9mm

Through Hole Normal Miniature CFR Carbon Film Fixed Resistor 0.5W 1WS 330R 5% 350V Axial Leaded Khaki 9032 3.2x9mm

Introduction

The CFR Series Carbon Film Resistors are manufactured by coating a homogeneous film of pure carbon on high grade ceramic rods. After a helical groove has been cut in the resistive layer, tinned connecting leads of electrolytic copper are welded to the end-caps. The resistors are coated with layers of tan color lacquer

The earliest and most popular type of resistor is carbon film resistor which can be used in almost all kinds of electronic products. The resistive element is a high grade ceramic rod on which a homogenous film of pure carbon is deposited by vacuum heating process to produce electrical conductivity on the surface. Fully automation and mass production on capping, sorting, cutting, welding, coating and double-checking which ensures stable quality, high reliability and economic cost.

Features

· Meets requirements of JIS-C-5202 and MIL-R-22684B

· Quicker dissipation of heat · Lower temperature rise

· Small shelf life drift

· Tolerance of 5%

· Wattage 0.5W (1 /2W)

· Resistance range of 1 Ohm up to 10MOhm

Type designation (example)

CF 1/4 W 10K J T52

CF: Carbon Film Resistor

1/4W: Wattage

10K: Nominal resistance value E-24 Series

J :  Resistance tolerance  K ±10% J ±5% G ±2%

T52: Form P Type,M Type,MB Type,F Type,FK1 Type,FK2 Type,FKK Type

Rated Power

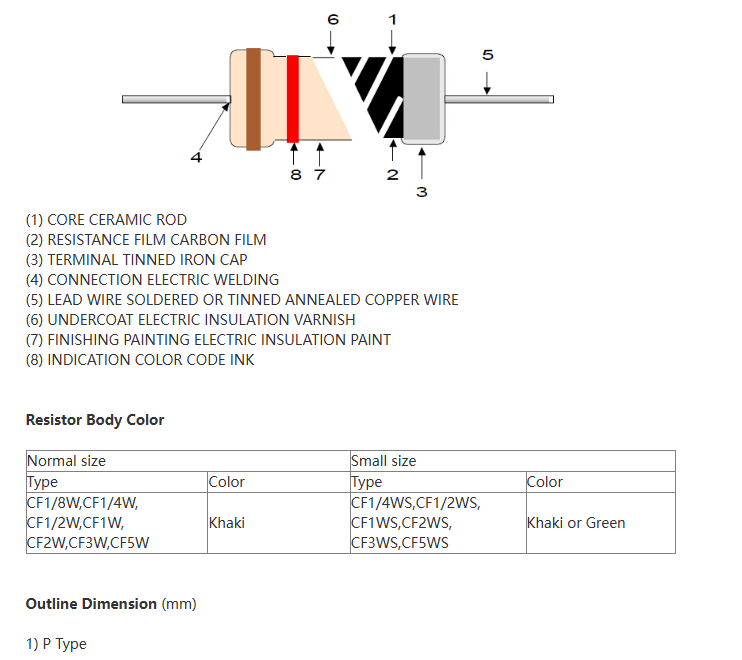

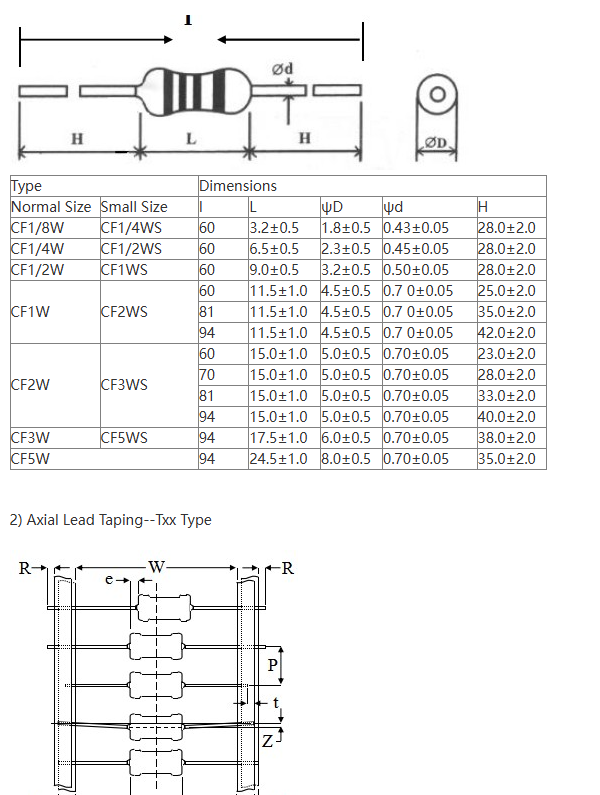

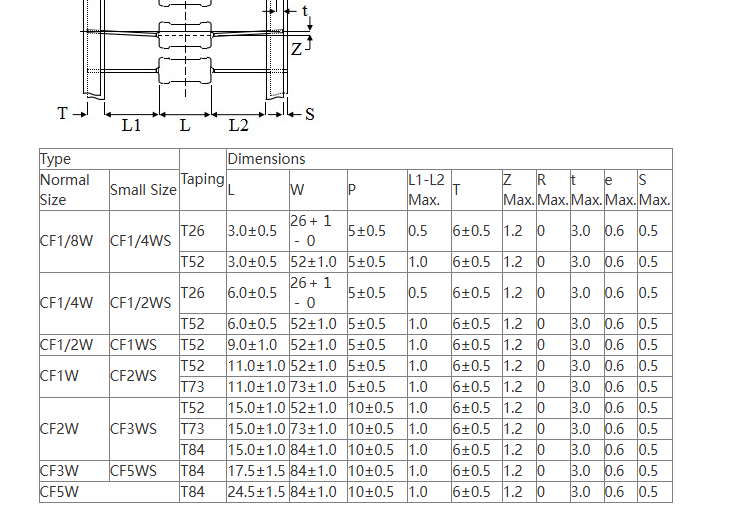

STRUCTURAL DIAGRAM
