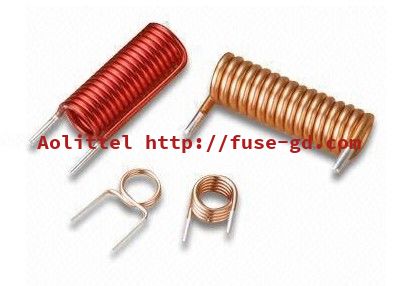

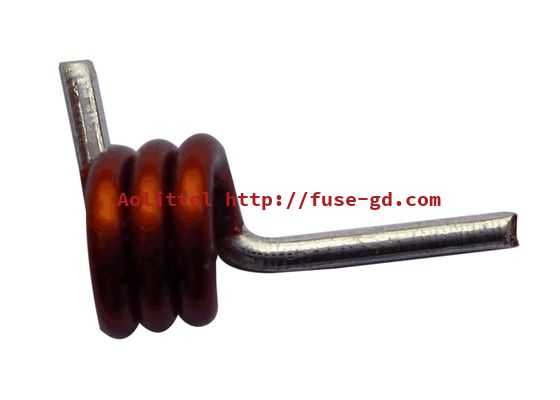

High Q Formed Shaped Heteromorphic Red Copper Air Core Coil Fixed Inductors 3 Turns 300C For for VHF-UHF RF Application
Features
Computer Optomized Coil
Utilizing Wheeler Formula
4 Wire Ties and Varnish Encapsulation
Linear A.C. Resistance
Constant Inductance with
Voltage and Current Variation
Very Low Microphonic Distortion
No Saturation Distortion
No Hysteresis Distortion
General
Inductance coil was conducted by using the principle of electromagnetic induction device.When a current flows through a wire, will produce certain electromagnetic field around that wire, and the electromagnetic field of the wire itself will be in within the scope of the electromagnetic field in the conductor induction effect.To generate electromagnetic wire itself, is called a "feeling", i.e., the change of wire itself the changes in the current magnetic field, the magnetic field and further influenced the current in the conductor;On the role of electromagnetic field in the range of other wires produce, called "mutual inductance.
Specification
| Technical Data | All technical data related to an ambient temperature of +25˚C |
| Inductance Range | 5.5nH to 27.3nH |
| Inductance Tolerance | 2%, 5%, 10% |
| Rated Current | 2.7A, 2.9A, 4.4A |
| Operating Temperature | -40˚C to +125˚C |
| Termination | 96.5% Tin/3% Silver over 0.5% Copper |
Tolerance: ± 1% centered on nominal value
Electrical Conductivity 101.5%
Temperature Range: -25°C to 85°C
Insulation Temperature: 155°C
87% Winding Space Factor
Very Low D.C.R.
Low Skin Effect Losses
Low A.C. Resistance
Low Self Capacitance
99.99% High Purity Copper
