AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy
Product Attributes :

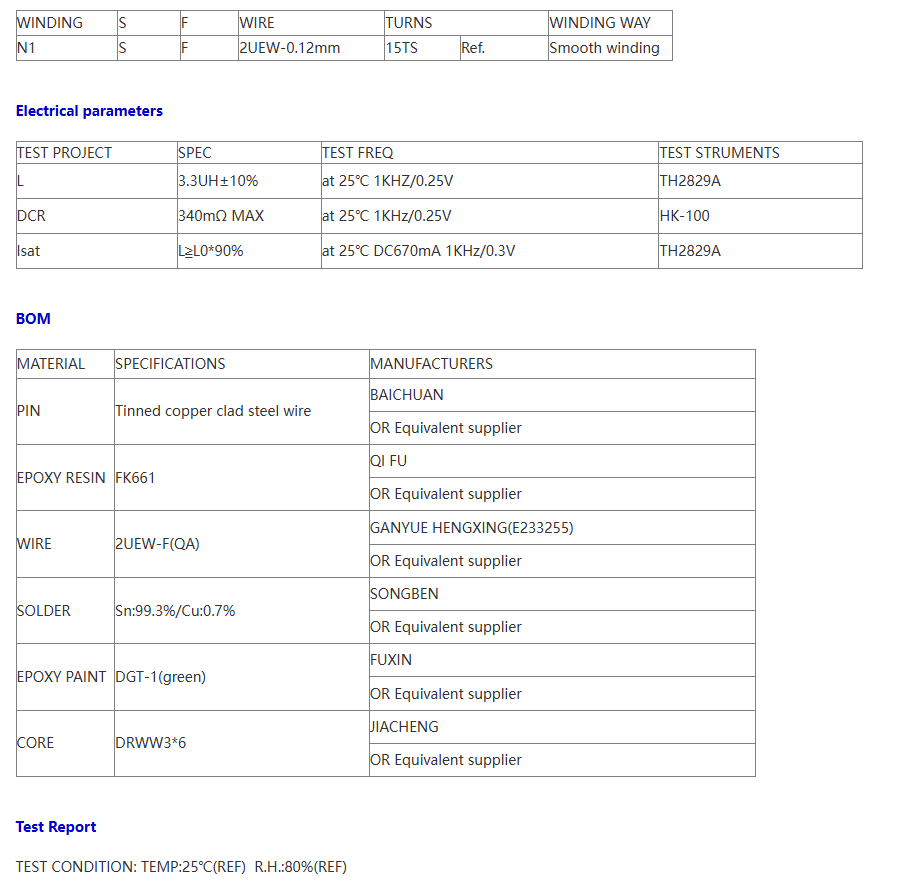

Specifications
Name: Color Code Inductor
Inductance: 3.3UH±10%
DCR: 340mΩ MAX
Isat: L≧L0*90%
Pin: Tinned Copper Clad Steel Wire
Epoxy Resin: FK661
Wire: 2UEW-F(QA)
Solder: Sn:99.3%/Cu:0.7%
Epoxy Paint: DGT-1(green)
Core: DRWW3*6

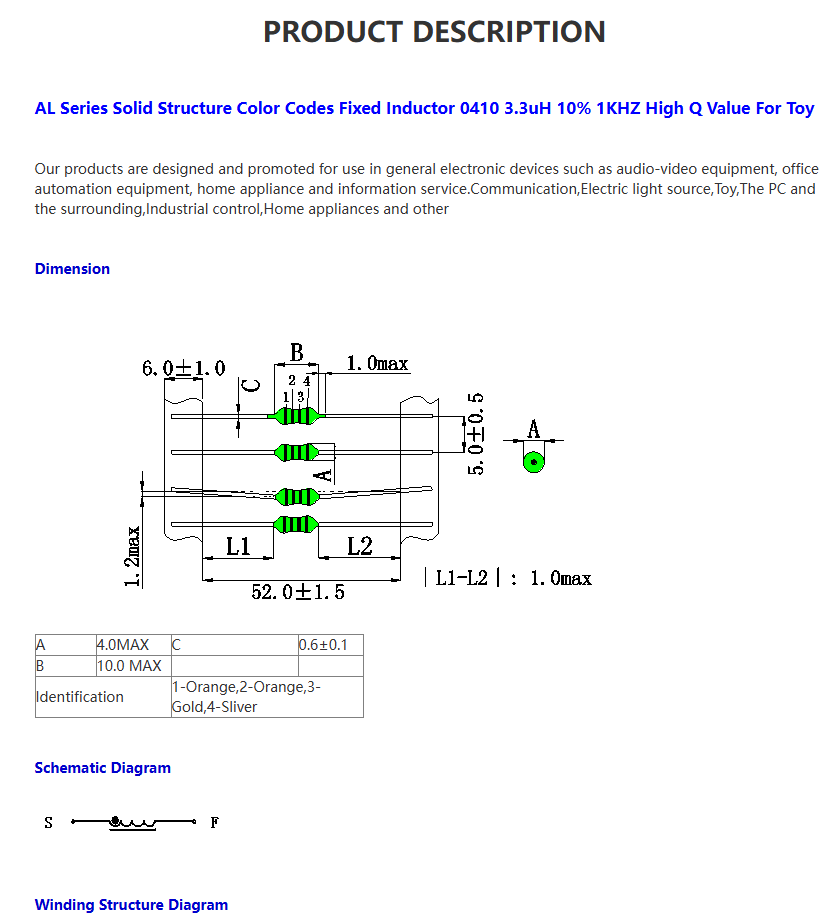

Product Description
