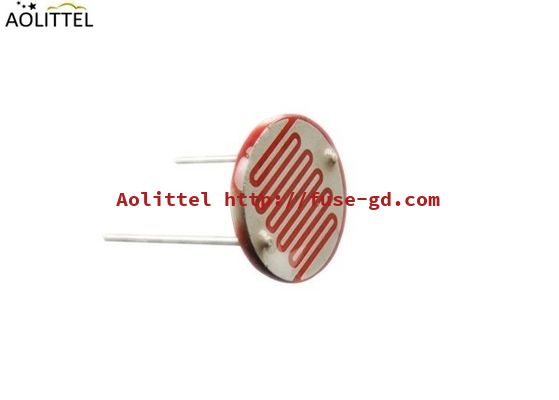

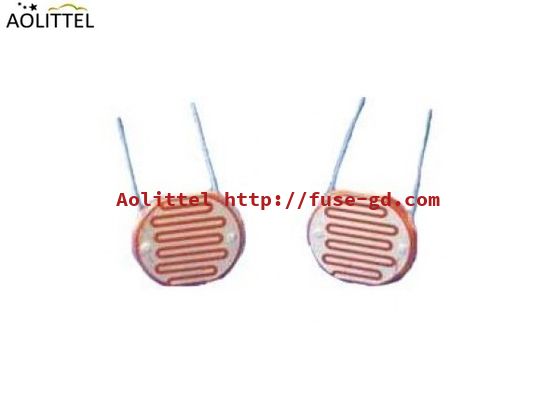

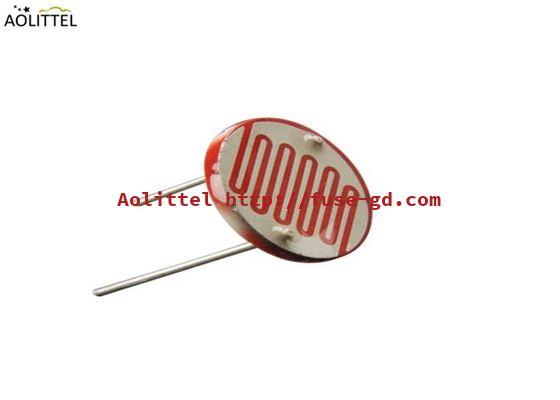

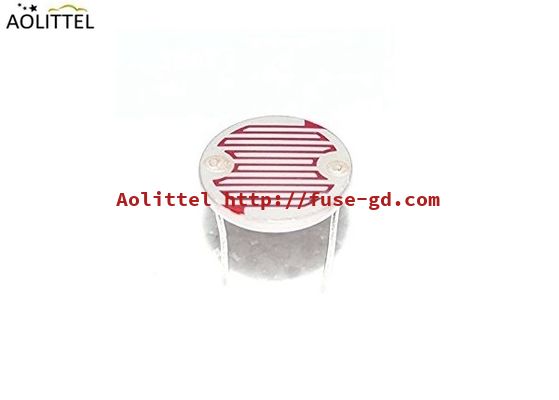

Epoxy Resin Package Diameter 20mm CdS Photoresistor Light Sensor GM20539 For Sensor Applications
Product Attributes :
Specifications
Item: CdS Photoresistor Light Sensor GM20539
Part Number: GM20539
Encapsulation: Epoxy Resin
Base Board: Ceramic
Max.Voltage: 500VDC
Power Dissipation: 500mW
Ambient Temperature: -30~+70C
Spectral Response Peak: 560nm
Light Resistance (10Lux): 50-100 KOhm
Dark Resistance: 8 MOhm
Product Description
Product Description
Epoxy Resin Package Diameter 20mm CdS Photoresistor Light Sensor GM20539 For Sensor Applications
Electronics Characteristics
| Name | Model |
Max. Voltage |
Max. Power |
Environment Temperature (℃) |
Spectrum Peak nm |
Light Resistance (10Lux) |
Dark Resistance |
γ10010 |
Response |
Illuminance Resistance Characteristic | |
| Increase | Decrease | ||||||||||
| φ20 Series | GM20516 | 500 | 500 | -30~+70 | 560 | 5-10 | 1 | 0.6 | 30 | 30 | 2 |
| GM20528 | 500 | 500 | -30~+70 | 560 | 10-20 | 2 | 0.6 | 30 | 30 | 2 | |
| GM20537-1 | 500 | 500 | -30~+70 | 560 | 20-30 | 3 | 0.7 | 30 | 30 | 3 | |
| GM20537-2 | 500 | 500 | -30~+70 | 560 | 30-50 | 5 | 0.7 | 30 | 30 | 3 | |
| GM20539 | 500 | 500 | -30~+70 | 560 | 50-100 | 8 | 0.8 | 30 | 30 | 4 |
|
