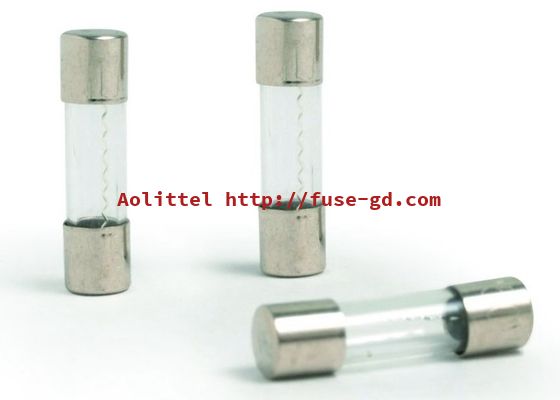

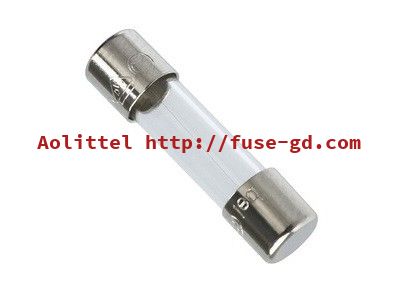

8AG Cylindrical Cartridge Fuses AGX 250VAC 500mA 6x25mm Fast Acting Glass Tube Fuse With 6.25 mm x 25 mm Fast Speed
Product Attributes :
Specifications
Product Category: Glass Fuse
Current Rating: 500mA
Fuse Type: Fast Blow
Fuse Size: 8AG (6.25 Mm X 25 Mm)
Voltage Rating AC: 250VAC
Mounting Style: Holder / Clip
Termination Style: Clip
Body Style: Cylindrical
Indicator Style: Without Indicator
Interrupt Rating: 35A
Product Description
Product Description

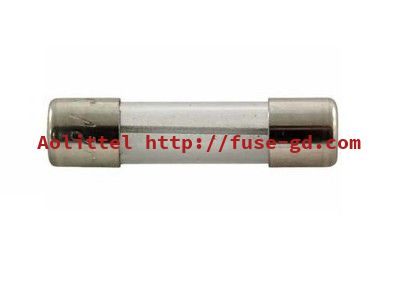

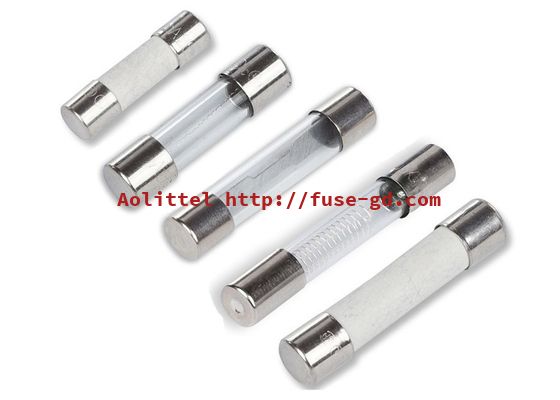

8AG Cylindrical Cartridge Fuses AGX 250VAC 500mA 6X25mm Fast Acting Glass Tube Fuse With 6.25 mm x 25 mm Fast Speed
Features
Fast-acting glass tube fuse
1/4" x 1" (6.3 x 25.4mm) physical size
Glass tube, nickel-plated brass endcap construction
For instruments, electronic and small appliance circuits
UL Listed product meets standard 248-14
___________________________________________________________
Download________
Electrical Characteristics
|
% of Ampere Rating(In) |
Blowing Time |
| 100%* In | 4 hours Min |
| 135%* In | 1 hour Max |
| 200%* In | 5 sec Max |
Specification
|
Part. No. |
Ampere Rating |
Voltage Rating |
Breaking Capacity |
I2TMelting Integral(A2.S) |
| MFC0100A/B | 100mA | 250V/125V |
10000A@125 V AC (100mA~10A);
35A@250V AC (100mA~1A);
100A@250V AC (1.25A~3.5A);
200A@250V AC (4A~10A).
|
0.003 |
| MFC0160A/B | 160mA | 250V/125V | 0.008 | |
| MFC0200A/B | 200mA | 250V/125V | 0.02 | |
| MFC0250A/B | 250mA | 250V/125V | 0.026 | |
| MFC0300A/B | 300mA | 250V/125V | 0.047 | |
| MFC0315A/B | 315mA | 250V/125V | 0.055 | |
| MFC0350A/B | 350mA | 250V/125V | 0.072 | |
| MFC0400A/B | 400mA | 250V/125V | 0.10 | |
| MFC0500A/B | 500mA | 250V/125V | 0.16 | |
| MFC0630A/B | 630mA | 250V/125V | 0.28 | |
| MFC0750A/B | 750mA | 250V/125V | 0.49 | |
| MFC0800A/B | 800mA | 250V/125V | 0.60 | |
| MFC1100A/B | 1A | 250V/125V | 0.8 | |
| MFC1125A/B | 1.25A | 250V/125V | 1.6 | |
| MFC1150A/B | 1.5A | 250V/125V | 2.5 | |
| MFC1160A/B | 1.6A | 250V/125V | 3.2 | |
| MFC1200A/B | 2A | 250V/125V | 5.6 | |
| MFC1250A/B | 2.5A | 250V/125V | 7.6 | |
| MFC1300A/B | 3A | 250V/125V | 14 | |
| MFC1315A/B | 3.15A | 250V/125V | 19 | |
| MFC1350A/B | 3.5A | 250V/125V | 20 | |
| MFC1400A/B | 4A | 250V/125V | 25 | |
| MFC1500A/B | 5A | 250V/125V | 42 | |
| MFC1600A/B | 6A | 250V/125V | 80 | |
| MFC1630A/B | 6.3A | 250V/125V | 96 | |
| MFC1800A/B | 8A | 250V/125V | 200 | |
| MFC2100A/B | 10A | 250V/125V | 320 | |
| MFC2120A/B | 12A | 250V/125V | 470 | |
| MFC2150A/B | 15A | 250V/125V | 650 | |
| MFC2200A/B | 20A | 250V/125V | 870 | |
| MFC2250A/B | 25A | 250V/125V | 1320 | |
| MFC2300A/B | 30A | 250V/125V | 1820 |

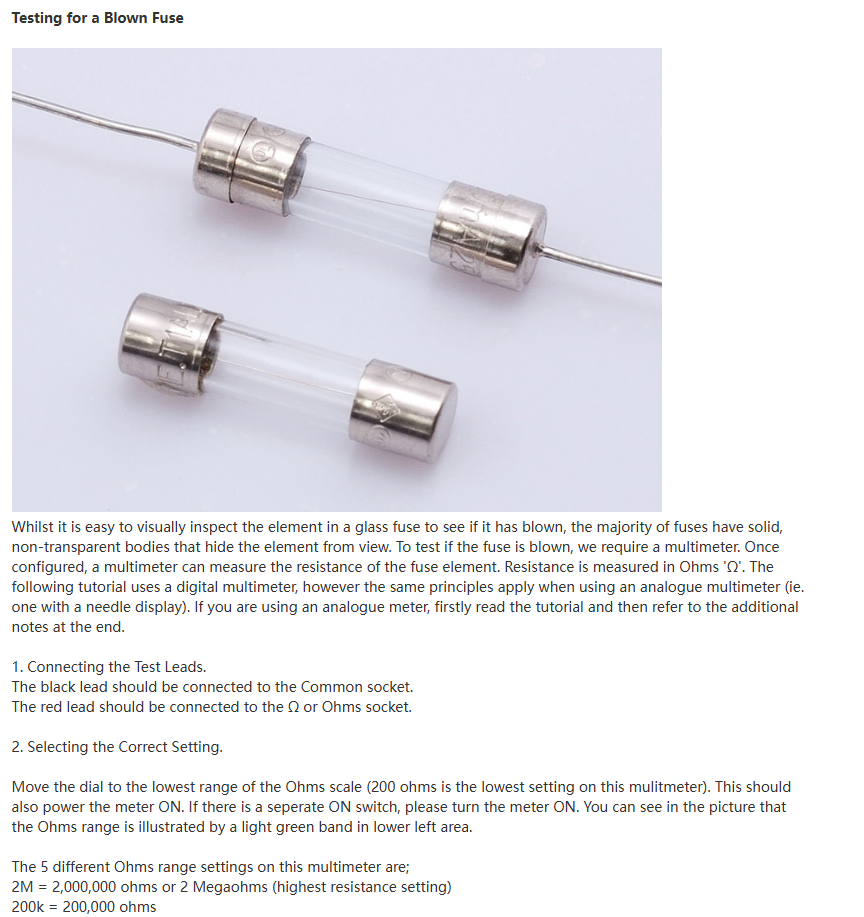

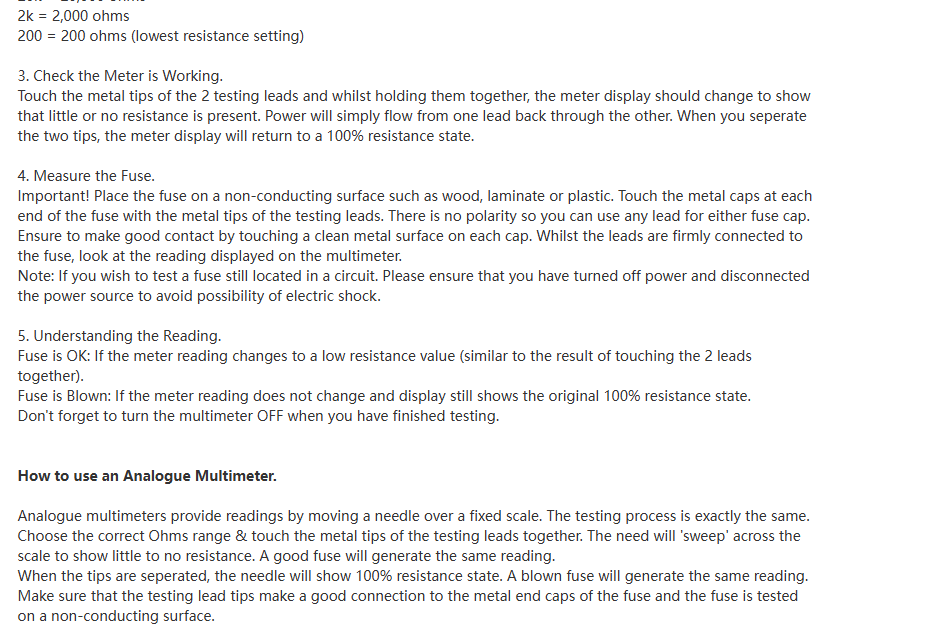

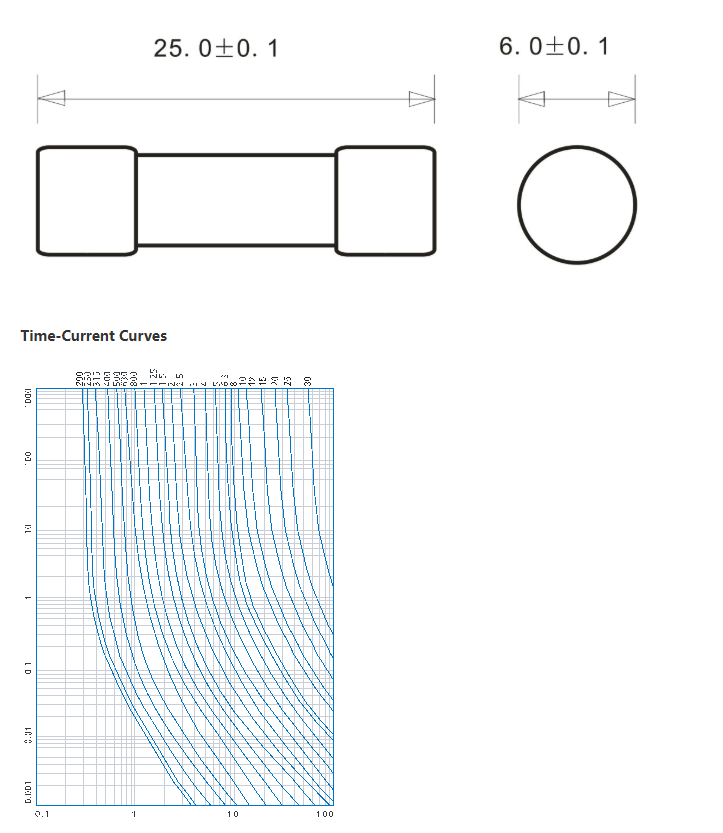

Dimensions - mm
