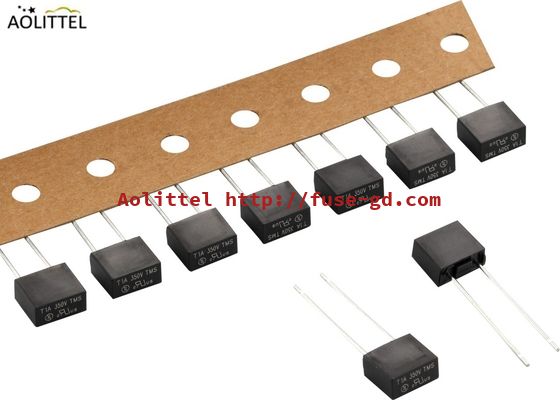

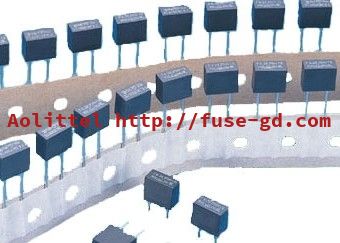

UL94-V0 Slow Blow Lead Box Type 392 932 Micro Subminiature Fuse TMS1100A With Rating 1A 350VAC Time-Lag
UL94-V0 Slow Blow Lead Micro Subminiature Fuse TMS1100A With Rating 1A 350VAC
Safety Agency Aprovals
|
Agency |
Ampere Range |
Agency File Number |
| UR | 50mA ~ 6.3A | E340427(JDYX2) |
| C-UR | 50mA ~ 6.3A | E340427(JDYX8) |
| VDE | 50mA ~ 6.3A | 40039420 |
| CQC | 50mA ~ 6.3A | CQC16012154495 |
| PSE | 50mA ~ 6.3A | PSE16021073 |
| KC | 50mA ~ 6.3A | SU05052-16004/16005/16006 |
______________________________________________________________________________
Download________
Features

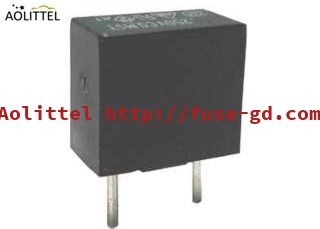

Compact, round or rectangular body with 5mm Pin Spacing
94V-0 Thermoplastic Housing
RoHS6 Compliant
Pb-Free
Halogen-Free

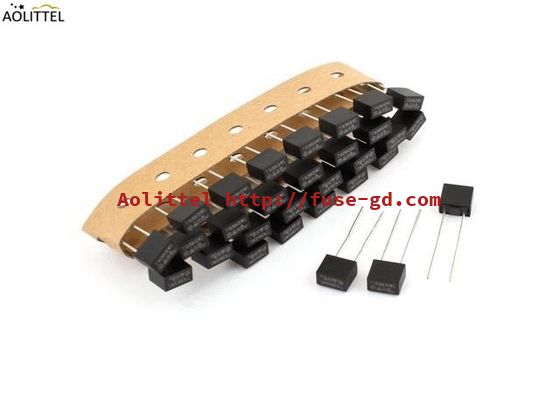

Bulk and Ammo Pack Available
Specification
- Wave Solder Process - 260°C, 10 Sec., Max.
- Multiple Safety Agency Approvals
- Operating Temperature: -55°C to +125°C
- Mil-Std 202G Environmental Compliant
|
Part. No. |
Ampere Rating |
Voltage Rating |
Max Voltage Drop (mv) |
I2TMelting Integral(A2.S) |
Agency Approvals |
||||
| UL | VDE | CQC | PSE |
KC
|
|||||
| TMS0050A | 50mA | 350V | 555 | 0.02 | ● | ● | ● | ● | ● |
| TMS0100A | 100mA | 350V | 355 | 0.11 | ● | ● | ● | ● | ● |
| TMS0125A | 125mA | 350V | 323 | 0.12 | ● | ● | ● | ● | ● |
| TMS0160A | 160mA | 350V | 296 | 0.17 | ● | ● | ● | ● | ● |
| TMS0200A | 200mA | 350V | 272 | 0.21 | ● | ● | ● | ● | ● |
| TMS0250A | 250mA | 350V | 251 | 0.41 | ● | ● | ● | ● | ● |
| TMS0315A | 315mA | 350V | 237 | 0.63 | ● | ● | ● | ● | ● |
| TMS0400A | 400mA | 350V | 211 | 1.22 | ● | ● | ● | ● | ● |
| TMS0500A | 500mA | 350V | 202 | 2.34 | ● | ● | ● | ● | ● |
| TMS0630A | 630mA | 350V | 191 | 2.88 | ● | ● | ● | ● | ● |
| TMS0800A | 800mA | 350V | 172 | 3.92 | ● | ● | ● | ● | ● |
| TMS1100A | 1A | 350V | 200 | 5.77 | ● | ● | ● | ● | ● |
| TMS1125A | 1.25A | 350V | 200 | 8.34 | ● | ● | ● | ● | ● |
| TMS1160A | 1.6A | 350V | 190 | 13.60 | ● | ● | ● | ● | ● |
| TMS1200A | 2A | 350V | 170 | 25.90 | ● | ● | ● | ● | ● |
| TMS1250A | 2.5A | 350V | 170 | 42 | ● | ● | ● | ● | ● |
| TMS1300A | 3A | 350V | 165 | 45 | ● | ● | ● | ● | ● |
| TMS1315A | 3.15A | 350V | 150 | 64 | ● | ● | ● | ● | ● |
| TMS1400A | 4A | 350V | 130 | 92 | ● | ● | ● | ● | ● |
| TMS1500A | 5A | 350V | 130 | 140 | ● | ● | ● | ● | ● |
| TMS1630A | 6.3A | 350V | 130 | 208 | ● | ● | ● | ● | ● |
| TMS1800A | 8A | 350V | 100 | 265 | ○ | ○ | ○ | ○ | ○ |
| TMS2100A | 10A | 350V | 100 | 295 | ○ | ○ | ○ | ○ | ○ |
| TMS2120A | 12A | 350V | 98 | 295 | ○ | ○ | ○ | ○ | ○ |
| TMS2150A | 15A | 350V | 95 | 299 | ○ | ○ | ○ | ○ | ○ |
Description
Pre-dominant plastic body radial lead package subminiature fuse with U.S (UL/CSA)., Europe (VDE/Semko), China (CQC), Korea (KC) and Japan (PSE) safety agency approvals, allows use of a single fuse rating in products with true World-Wide acceptance. Provides board level primary circuit protection in a wide variety of battery chargers, power supplies, modems, routers, consumer electronics, etc.

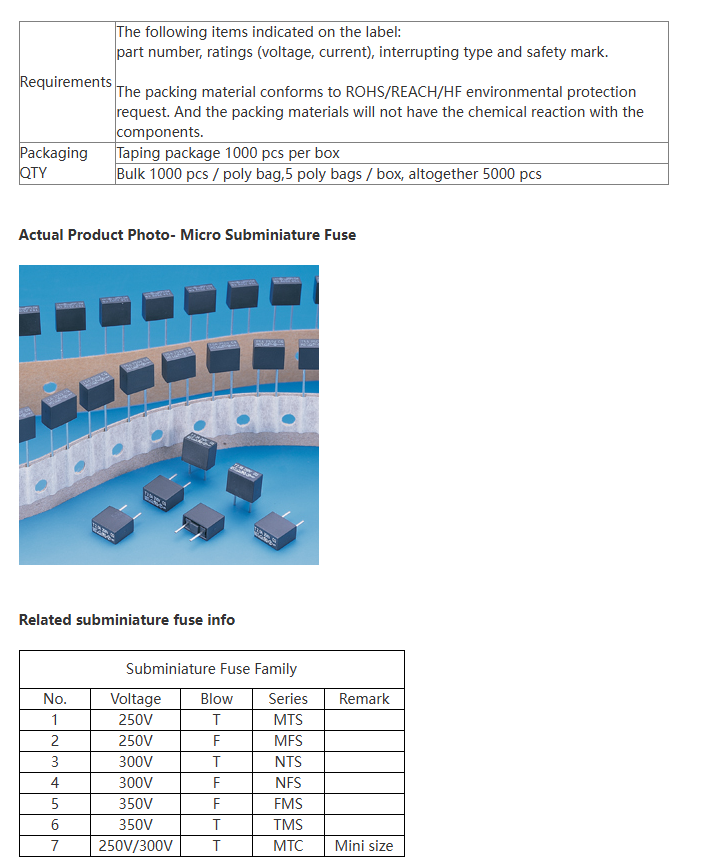

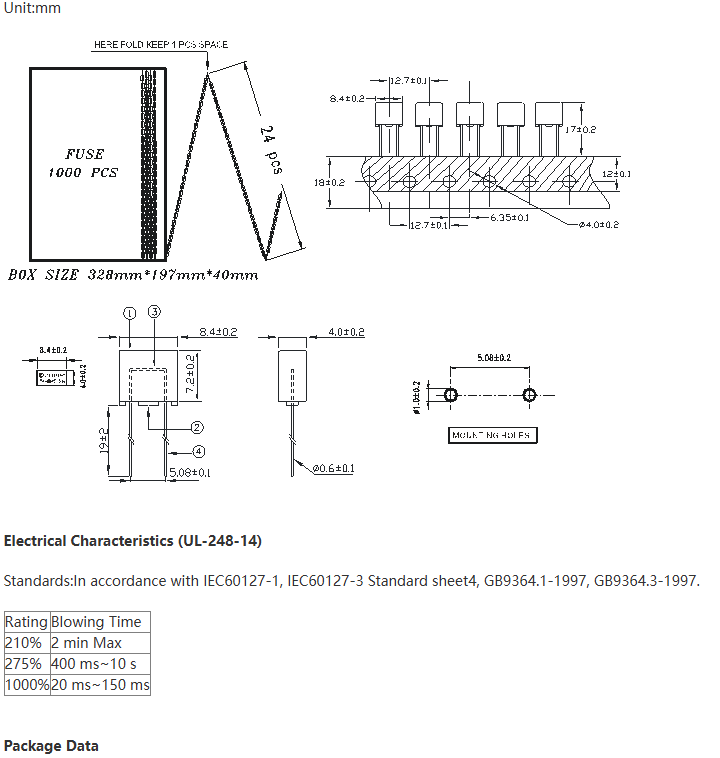

Dimension
