PRODUCT

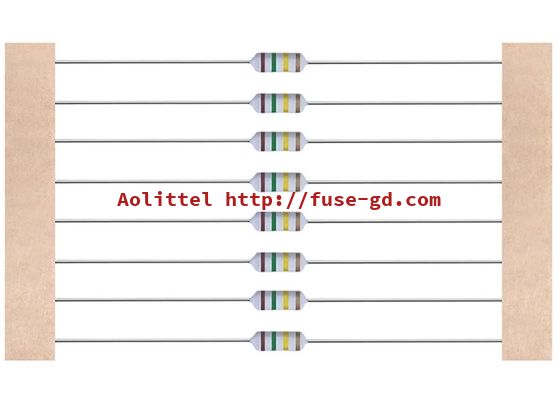

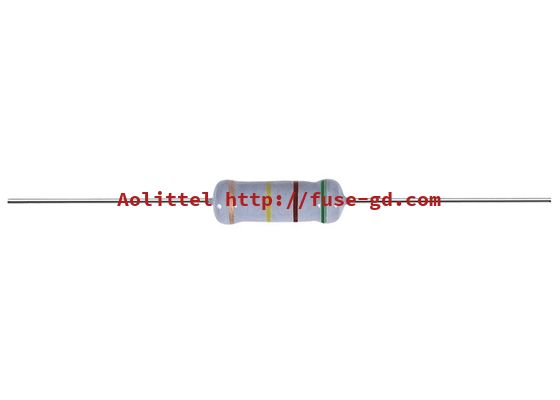

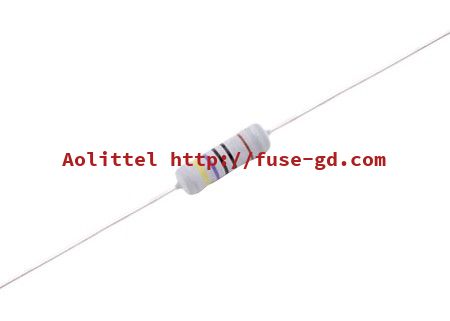

Flame-proof Non-Inductive KNP 0.25-10W Fusible Wire Wound Resistor 0.1-1000 Ohm ±5% With Smaller Size Available
Product Attributes :
Specifications
Name: Wire Wound Resistor
Rated Power: 0.25W~10W
Resistance Value: 0.1-1000 Ohm (E24)
Tolerance: F : ±1% G : ±2% J : ±5%
Package: Tape Or Bulk

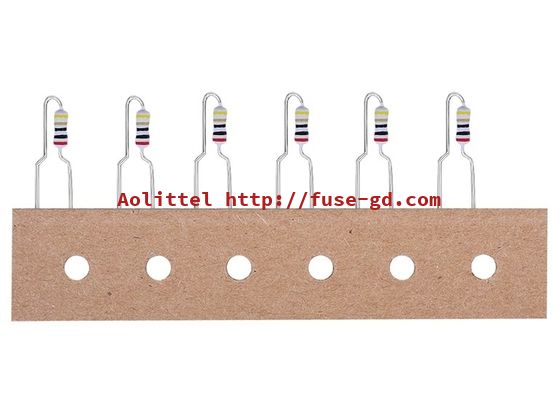

Forming: Horizontal/vertical
Temp. Coefficient: ±350PPM/℃
Operating Temperature: -55℃～ ＋155℃
Product Description
Product Description
Flame-proof Non-Inductive KNP 0.25-10W Fusible Wire Wound Resistor 0.1-1000 Ohm ±5% With Smaller Size Available
INTRODUCTION

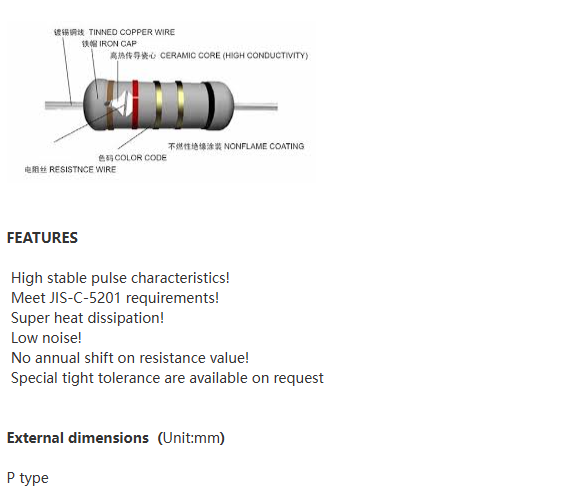

To wind the alkaline less ceramic core with metal alloy resistance wire and coating with silicon resin which makes wire wound resistor KNP series
Small in size comparatively than other kind resistor
Electrical and Mechanical stability and high reliability
