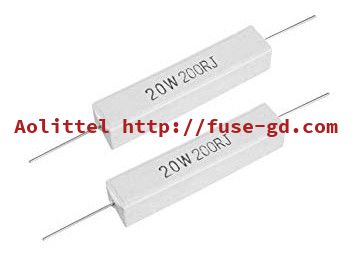

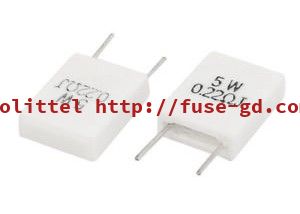

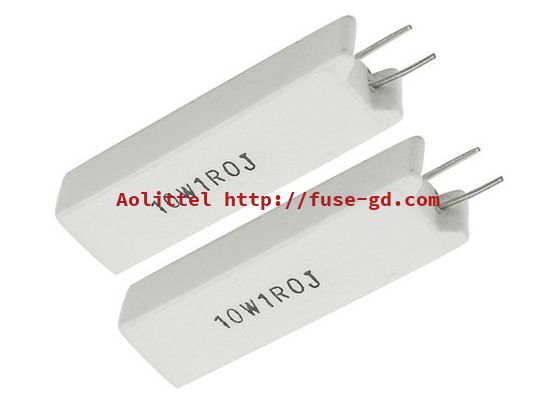

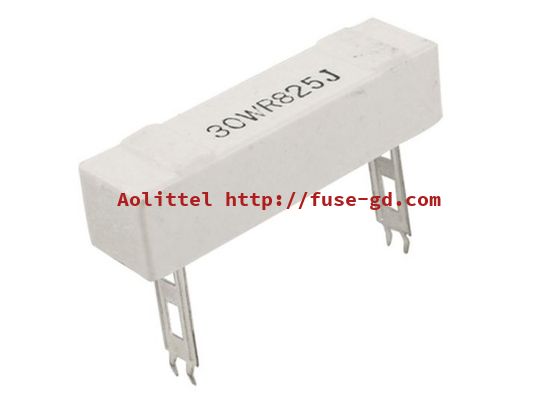

SQP SQM SQZ SQH MPR SQS High Alumina Ceramic Cement Fixed Wirewound Resistor 20W 500RJ 63x13x13mm

SQP SQM SQZ SQH MPR SQS Coaxial High Alumina Ceramic Cement Fixed Wirewound Resistor CR-L 20W 500RJ 63x13x13mm

Overview

Cement resistors are power resistors that are heat and flame resistant.
Cement resistors are made to handle a large amount of power flowing through it with it being undamaged by heat or flames. If you are designing a circuit where a lot of current is being passed through a resistor and with it needing to be resistant to high heat and flame, cement resistors is a good design choice.
Typical power ratings range from 1W to 20W or more.
Tolerances from the stated resistance value are around 5 percent.

Main Specification

Packing: Bulk packing
Product type: SQP type , SQM type, SQZ type, SQH type, MPR type
Tolerance: ±5%, ±10%,
Resistance Value Range: 0.1 OHM-150K OHM
Testing Standard: JISC 5202
Non-inductive type also available.
Wirewound rods, value cut rods or fibre glass rods to be used.

Part Numbering

CR-(?) 5W 10K J

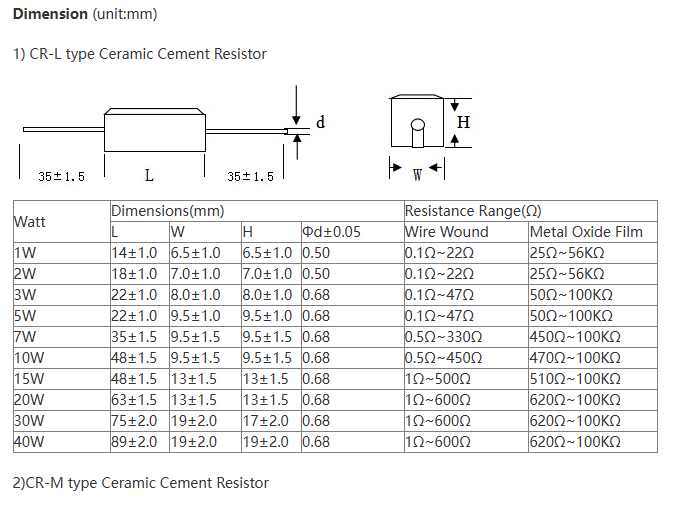

Type : CR-L,CR-M,CR-YA,CR-YB,CR-YC,CR-YD,CR-YD1,CR-YE,CR-YG,CR-V

Rated Power :2W,3W,5W,7W,10W,15W,20W,30W,40W

Nominal resistance value :E-12 Series / E-24 Series

Resistance tolerance : K ±10% , J ±5% , G ±2%

Power Rating

Rated power is maximum power which can be continuously loaded at specified ambient temperature

70℃,as Table-1;however when the ambient temperature exceeds 70℃,rated power should be determined

from the derating curve of Fig.1.

                                                          Table-1

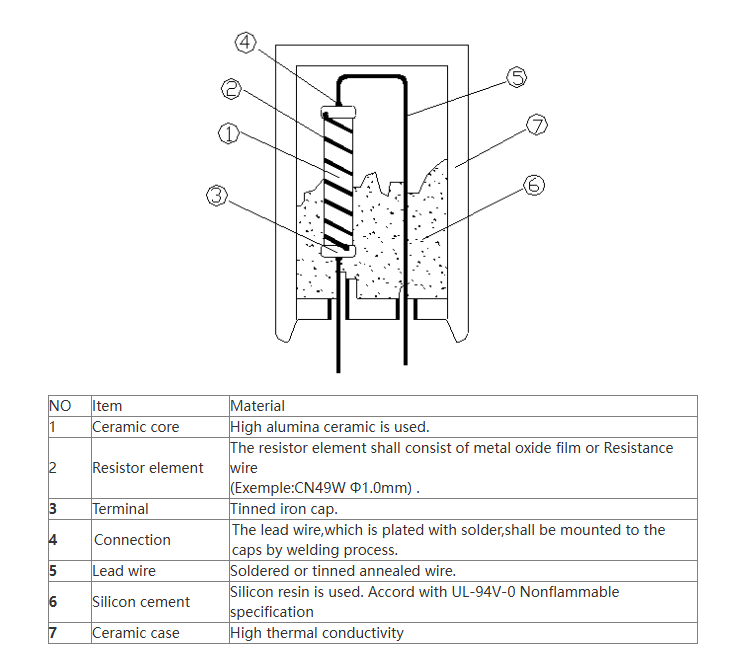

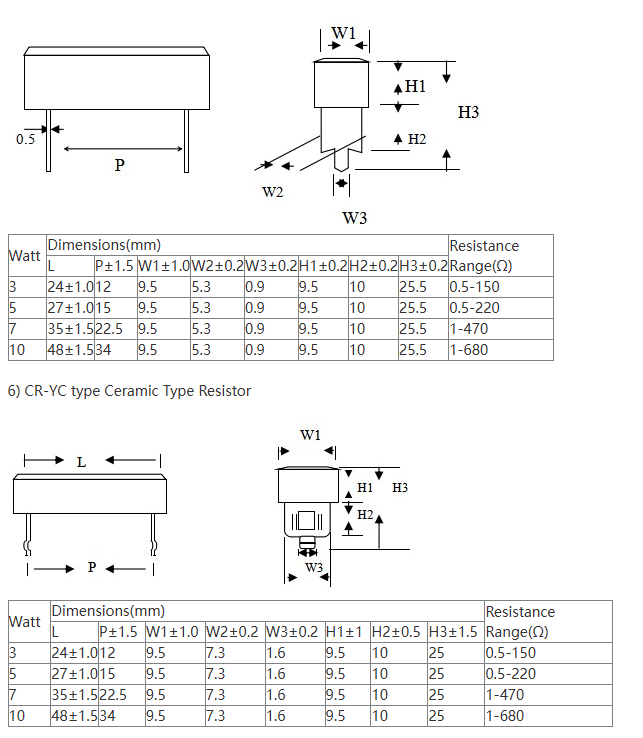

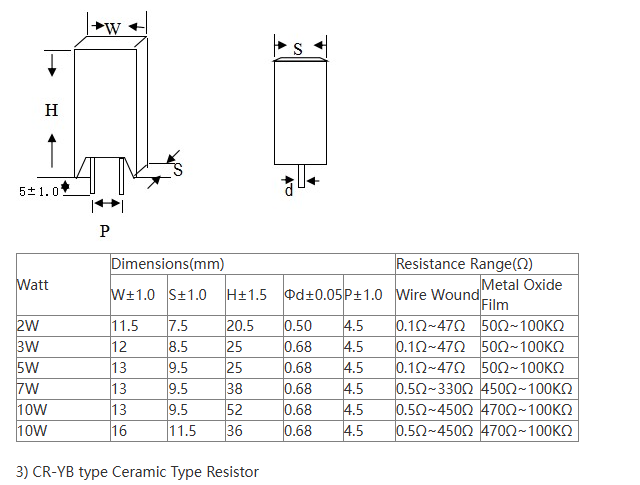

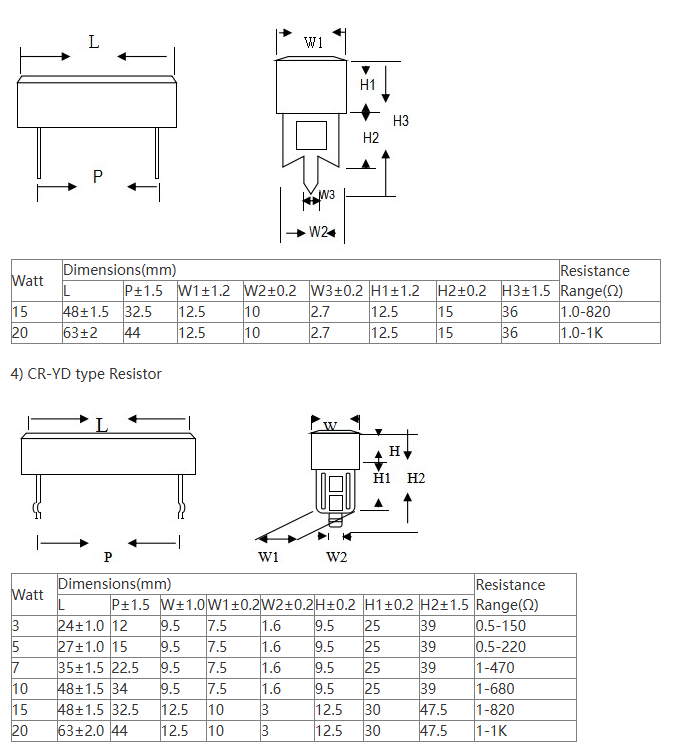

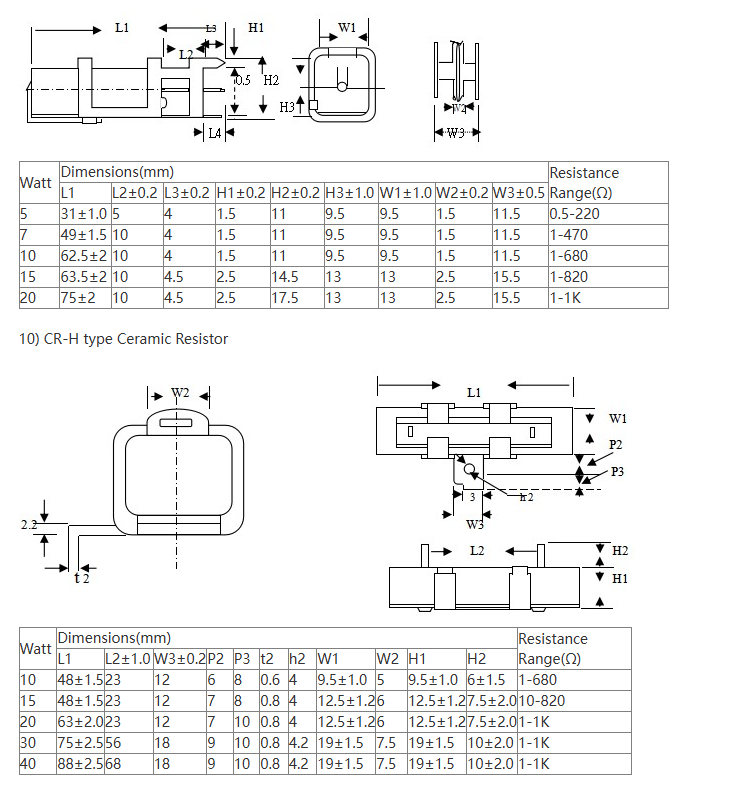

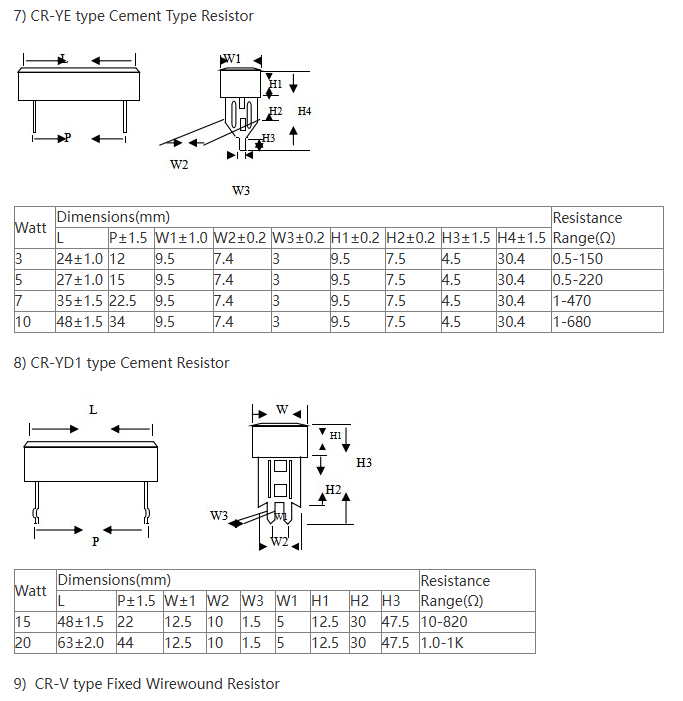

Construction
