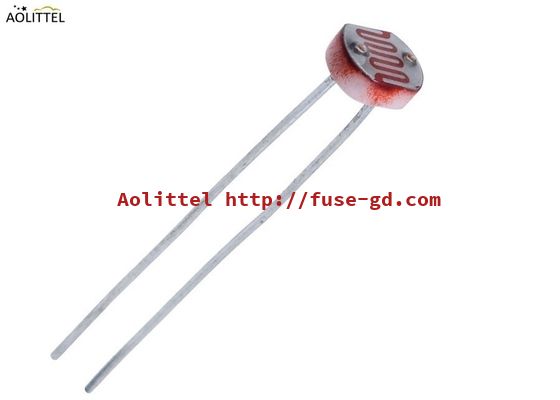

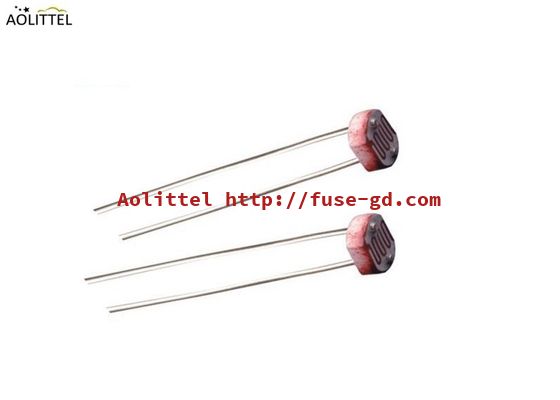

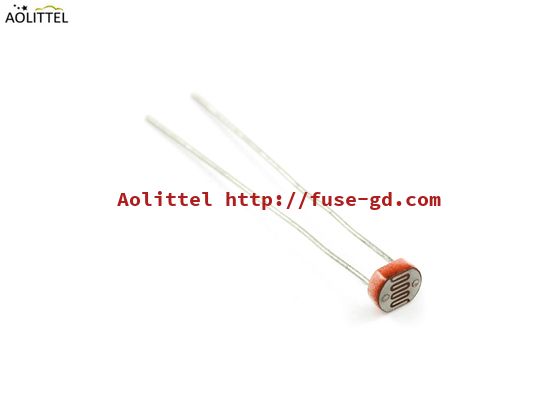

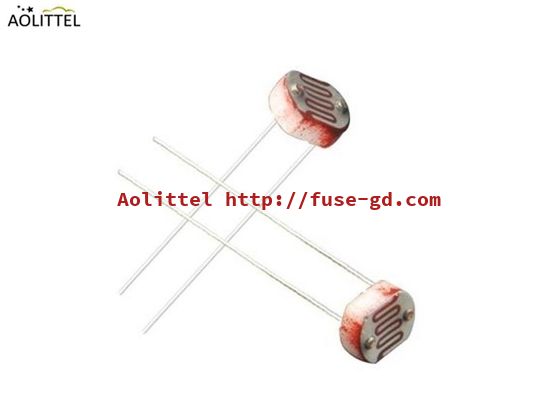

3mm LDR Light Dependent Resistor Photoresistor Light Sensor 5-200K With Ceramic Pacakge
Product Attributes :
Specifications
Model: 3mm LDR Light Dependent Resistor
Diameter: 3mm
Mounting Type: Dip
Material: Resin Coating Type
Allowable Power Dissipation ( PD ): Allowable Power Dissipation ( PD )
Ambient Temperature Range ( TA ): -30 ～+70 ℃
Light Resistance At 10lux: 5-200KΩ (2854k Color Temperature)
Dark Resistance At 0Lux: 0.2-10MOhm
Peak Spectral Response: 540nm
Samples: Free But Customer Bear Freight Cost
Product Description
Product Description
3mm LDR Light Dependent Resistor Photoresistor Light Sensor 5-200K With Ceramic Pacakge
Performances
| Name | Model |
Max. Voltage VDC |
Max. Power mw |
Environment Temperature (℃) |
Spectrum Peak nm |
Light Resistance (10Lux) KΩ |
Dark Resistance ≥MΩ |
γ10010 |
Response Time (ms) |
Illuminance Resistance Characteristic | |
| Increase | Decrease | ||||||||||
| φ3 Series | GM 3516 | 100 | 50 | -30~+70 | 540 | 5-10 | 0.2 | 0.5 | 30 | 30 | 1 |
| GM3528 | 100 | 50 | -30~+70 | 540 | 10-20 | 1 | 0.6 | 30 | 30 | 2 | |
| GM 3537-1 | 100 | 50 | -30~+70 | 540 | 20-30 | 2 | 0.6 | 30 | 30 | 3 | |
| GM3537-2 | 100 | 50 | -30~+70 | 540 | 30-50 | 3 | 0.7 | 30 | 30 | 3 | |
| GM3539 | 100 | 50 | -30~+70 | 540 | 50-100 | 5 | 0.8 | 30 | 30 | 5 | |
| GM3549 | 100 | 50 | -30~+70 | 540 | 100-200 | 10 | 0.9 | 30 | 30 | 5 | |
