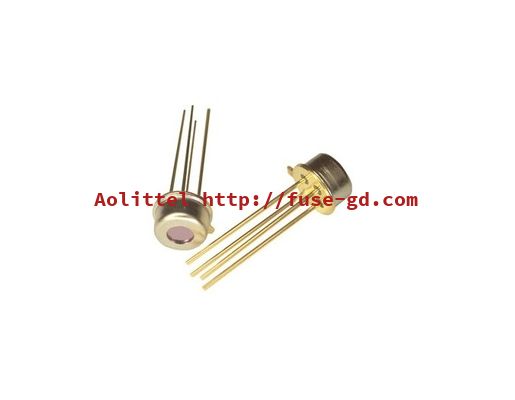

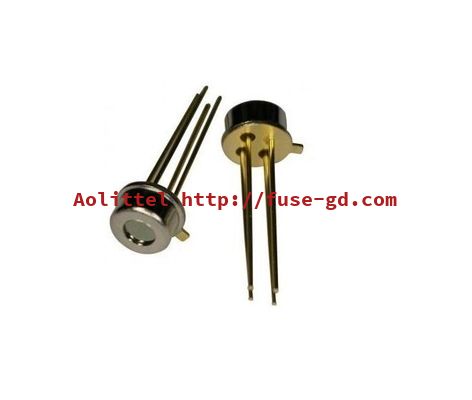

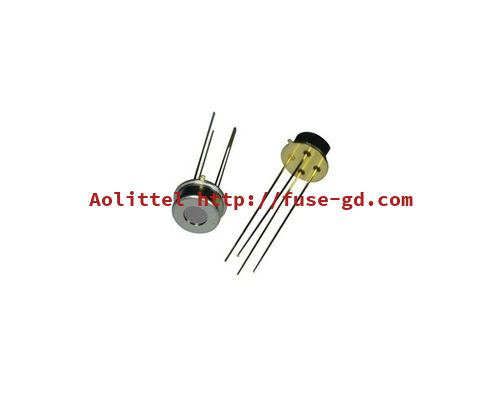

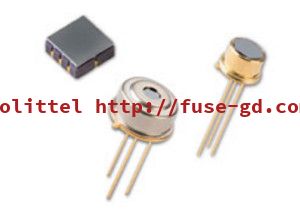

Ear Thermometer Non-contact Measurement Metal Housing Thermometrics Infrared Detectors Thermopile IR Sensor ZTP-148SR
Ear Thermometer Non-contact Measurement Metal Housing Thermometrics Infrared Detectors Thermopile IR Sensor ZTP-148SR
Description
ZTP Thermopile Infared (IR) Sensors are industry-leading higher sensitivity level sensors. These devices respond to a broad infrared spectrum, offer an inherently stable response to DC radiation, and do not require source of bias voltage or current. Consisting of thermo-elements, flat IR filter, and a thermistor for temperature compensation in a hermetically-sealed TO package, the series has a variety of filters available to maximize performance in specific applications.The ZTP IR Thermopile devices are used to provide non-contact temperature measurement in thermometry, microwave ovens, induction heater cookers, air conditioners, occupancy detection, lighting, underfloor heating control, and HVAC / automotive applications.
We are not limited to off-the-shelf, standard designs and cater to user customization for the most demanding infrared sensing applications,as well as PCB .
Thermopile IR Sensor Application.pdf

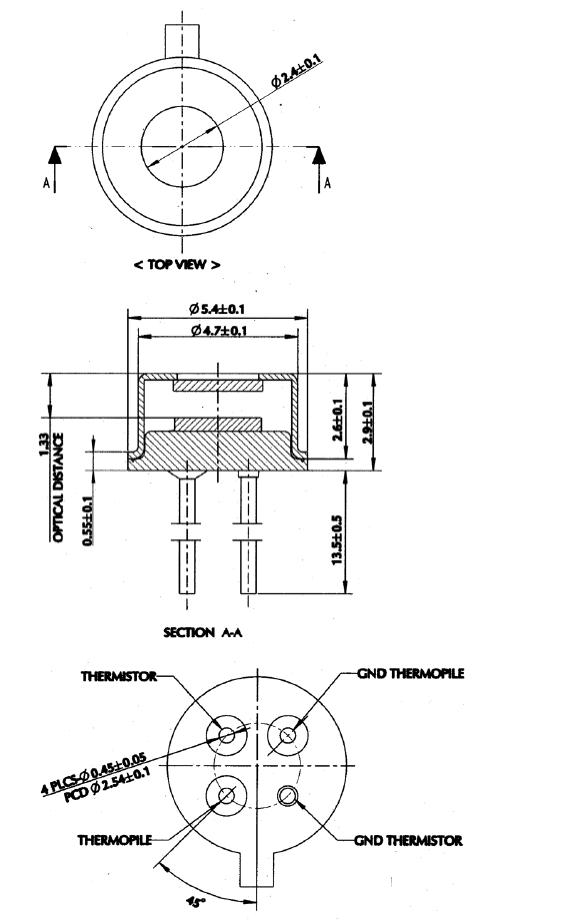

OUTLINE OF SENSOR PACKAGE and PIN ARRANGEMENT [unit:mm]
THERMOPILE CHIP
| PARAMETER | LIMITS | Units | CONDITION |
| Chip size | 1.8 X 1.8 | mm2 | |
| Diaphragm Size | 1.0 X 1.0 | mm2 | |
| Active Area | 0.7 X 0.7 | mm2 | |
| Internal Resistance | 85(60-111) | ㏀ | 25℃ |
| Resistance T.C | 0.12 | %/℃ | |
| Responsivity | 61(43-79) | V/W | 500K, 1Hz |
| Responsivity T.C | -0.07 | %/℃ | |
| Noise Voltage | 37 | nV rms | R.M.S, 25℃ |
| NEP | 0.61 | nW/Hz1/2 | 500K, 1Hz |
| Detectivity | 1.14 | cmHz1/2/W | 500K, 1Hz |
| Time Constant | ms |

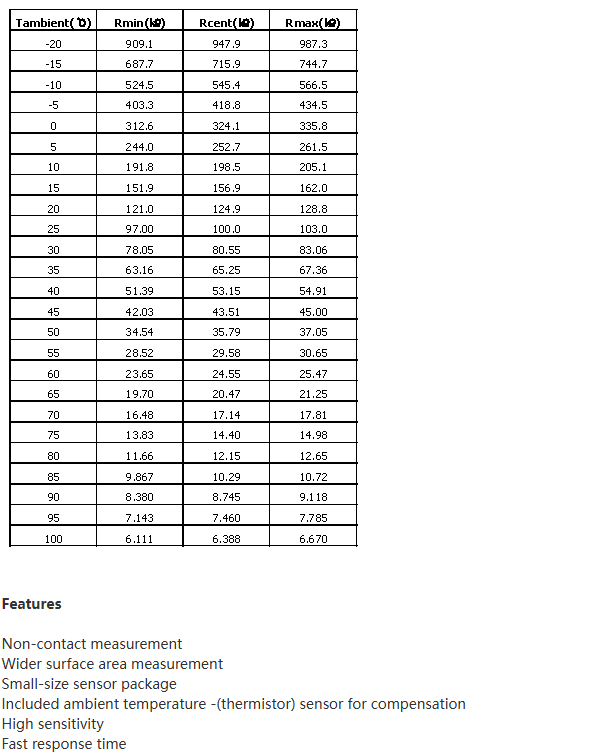

THERMISTOR- Thermistor for Temperature Compensation
| Parameter | LIMITS | Unit | Condition | ||
| MIN | TYPE | MAX | |||
| Resistance | 97 | 100 | 103 | ㏀ | Tol.:3%, @ 25℃ |
| Beta – Value | 3920 | 3960 | 4000 | K | Tol.:1%,Defined at 25℃/50℃ |
ABSOLUTE MAXIMUM RATINGS
- Operating Temperature : -20℃ ~ 100℃
- Storage Temperature : -40℃ ~ 120℃

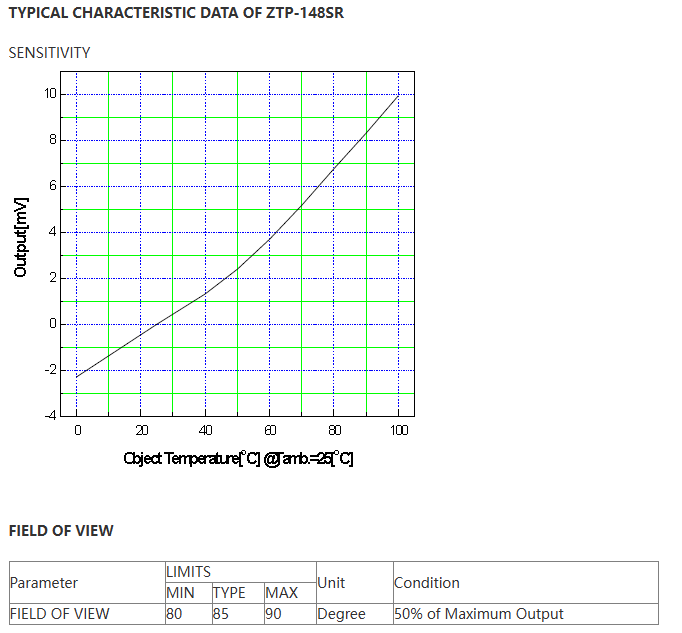

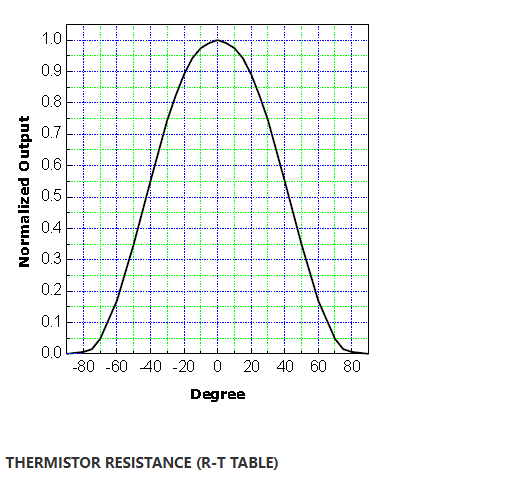

TYPICAL CHARACTERISTIC DATA OF ZTP-148SR
