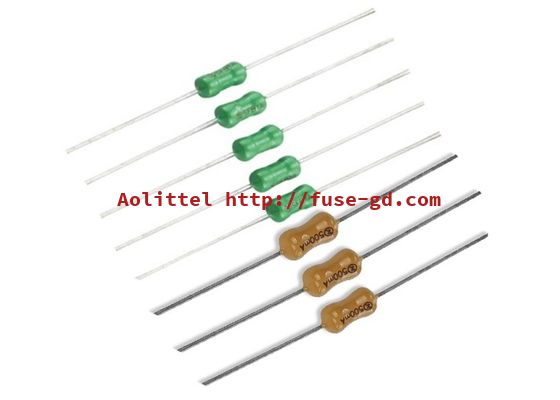

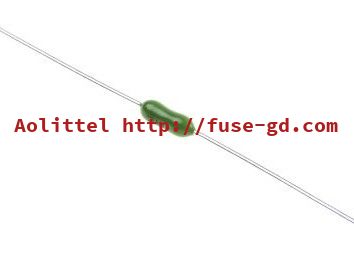

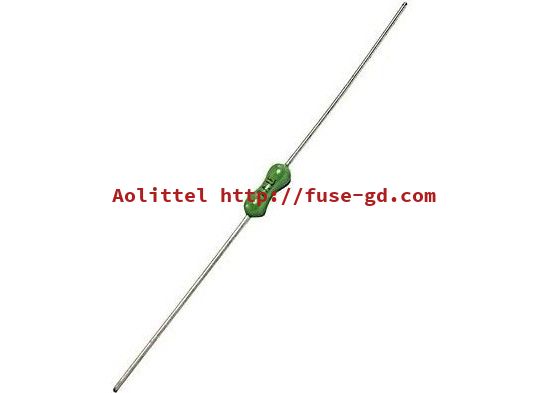

4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC

4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC

Product Tags :

Product Attributes :

Specifications

Name: Miniature Pico Fuse

Voltage: 350VAC

Current Value: 3A

Speed: Fast Blow F

Package: Tape

Interrupting Rating: 50A@350VAC

Product Description

4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC

Applications

Secondary protection for space constrained applications

• Flat–panel Display TV
• LCD monitor
• LCD backlight inverter
• Office machines
• Power supply
• Audio/Video system
• Lighting system
• Medical equipment

Features

Fully compatible with Lead–free solder alloys and higher temperature profiles associated with Lead–free assembly

UL,cUL certified Axial Lead Fuse

Available from 100mA till 15A

350V high voltage version

Wire in air design

High temperature epoxy plastic body, UL 94V0

Matte tin-plated copper lead wires

Specifications

Part No.	Ampere Rating	Voltage Rating	Breaking Capacity	Agency Approvals
Part No.	Ampere Rating	Voltage Rating	Breaking Capacity	UL	CUL	PSE JET
RFP0100	100mA	350V	50A@350VAC	●	●	○
RFP0125	125mA	350V	50A@350VAC	●	●	○
RFP0160	160mA	350V	50A@350VAC	●	●	○
RFP0200	200mA	350V	50A@350VAC	●	●	○
RFP0250	250mA	350V	50A@350VAC	●	●	○
RFP0300	300mA	350V	50A@350VAC	●	●	○
RFP0315	315mA	350V	50A@350VAC	●	●	○
RFP0350	350mA	350V	50A@350VAC	●	●	○
RFP0375	375mA	350V	50A@350VAC	●	●	○
RFP0400	400mA	350V	50A@350VAC	●	●	○
RFP0500	500mA	350V	50A@350VAC	●	●	○
RFP0600	600mA	350V	50A@350VAC	●	●	○
RFP0630	630mA	350V	50A@350VAC	●	●	○
RFP0700	700mA	350V	50A@350VAC	●	●	○
RFP0750	750mA	350V	50A@350VAC	●	●	○
RFP0800	800mA	350V	50A@350VAC	●	●	○
RFP1100	1A	350V	50A@350VAC	●	●	○
RFP1125	1.25A	350V	50A@350VAC	●	●	○
RFP1150	1.5A	350V	50A@350VAC	●	●	○
RFP1160	1.6A	350V	50A@350VAC	●	●	○
RFP1200	2A	350V	50A@350VAC	●	●	○
RFP1250	2.5A	350V	50A@350VAC	●	●	○
RFP1300	3A	350V	50A@350VAC	●	●	○
RFP1315	3.15A	350V	50A@350VAC	●	●	○
RFP1350	3.5A	350V	50A@350VAC	●	●	○
RFP1400	4A	350V	50A@350VAC	●	●	○
RFP1500	5A	350V	50A@350VAC	●	●	○
RFP1600	6A	350V	50A@350VAC	●	●	○
RFP1630	6.3A	350V	50A@350VAC	●	●	○
RFP1700	7A	350V	50A@350VAC	●	●	○
RFP1800	8A	350V	50A@350VAC	●	●	○
RFP1900	9A	350V	50A@350VAC	●	●	○
RFP2100	10A	350V	50A@350VAC	●	●	○
RFP2120	12A	350V	50A@350VAC	○	○	○
RFP2150	15A	350V	50A@350VAC	○	○	○
