3216 Series POLYFUSE SMD PPTC Resettable Fuse
Product ID : SMD1206 Series
Product Attributes :
Features：
RoHS Compliant ＆ Halogen Free
Faster tripping, 1206 Dimension, Surface mountable, Solid state
Operation Current: 0.05A~2.00A
Maximum Voltage: 6V~60Vdc
Operating Temperature：-40℃ TO 85℃
Agency recognition:UL、CSA、TUV
Product Description
3216 Series POLYFUSE SMD PPTC Resettable Fuse

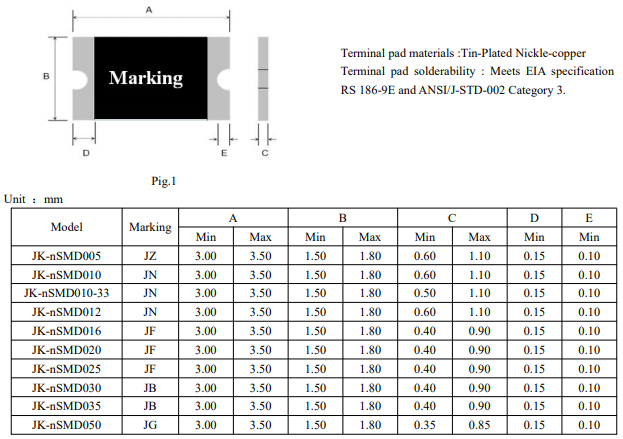

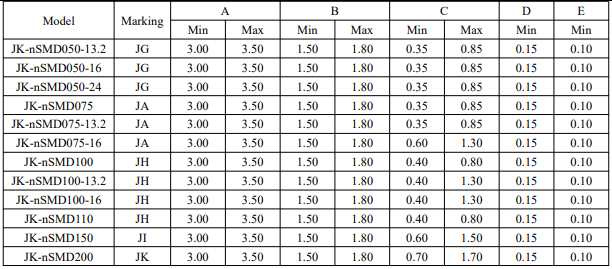

Product Dimensions

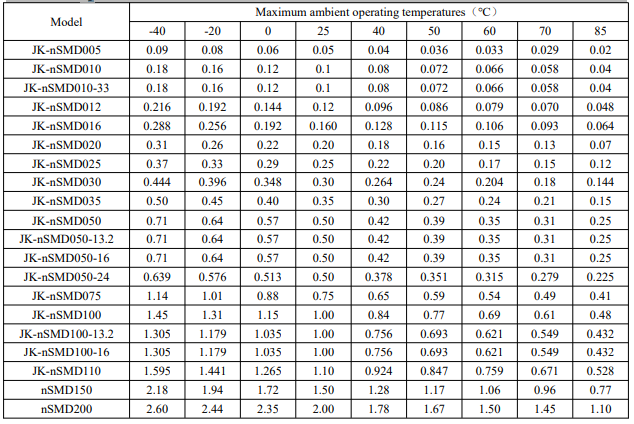

Thermal Derating Chart-IH（A）

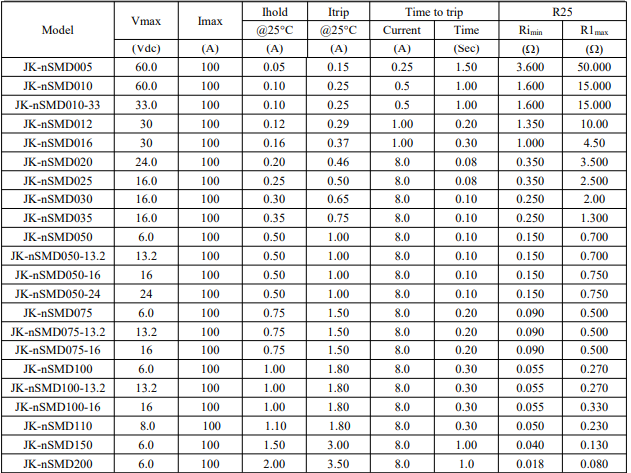

Electrical Characteristic

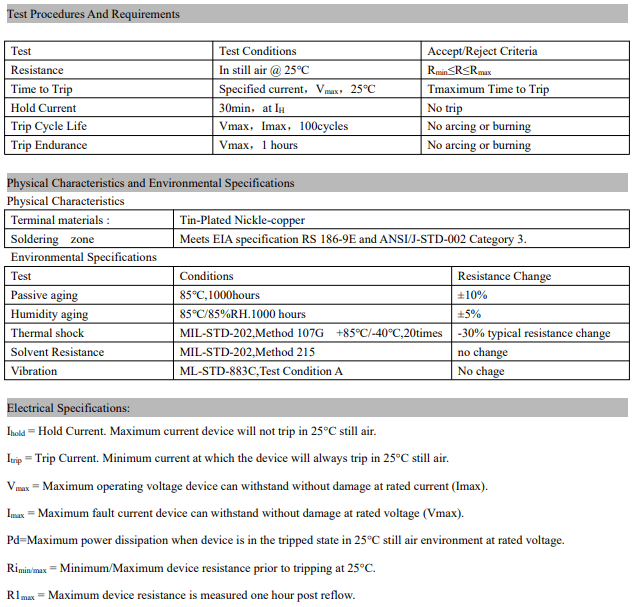

Test Procedures And Requirements

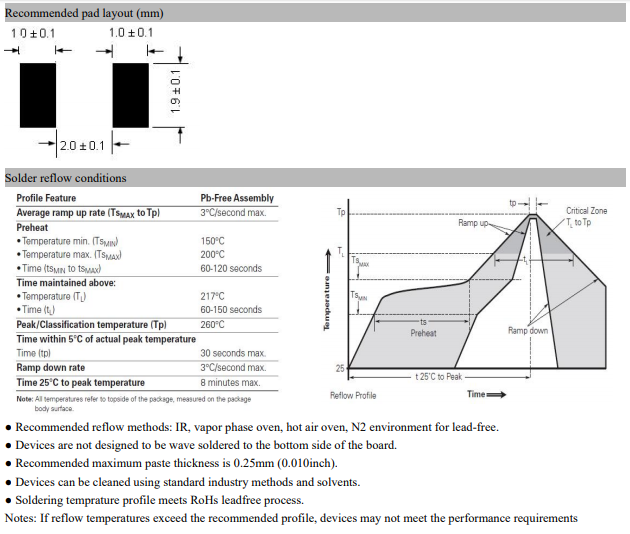

Recommended pad layout (mm)

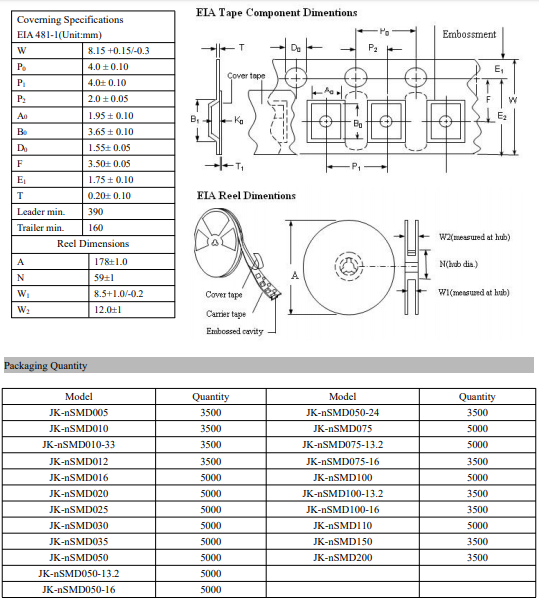

Tape Specification And Reel Dimensions
